Home
>>
Buick
>>
2008
>>
Enclave AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

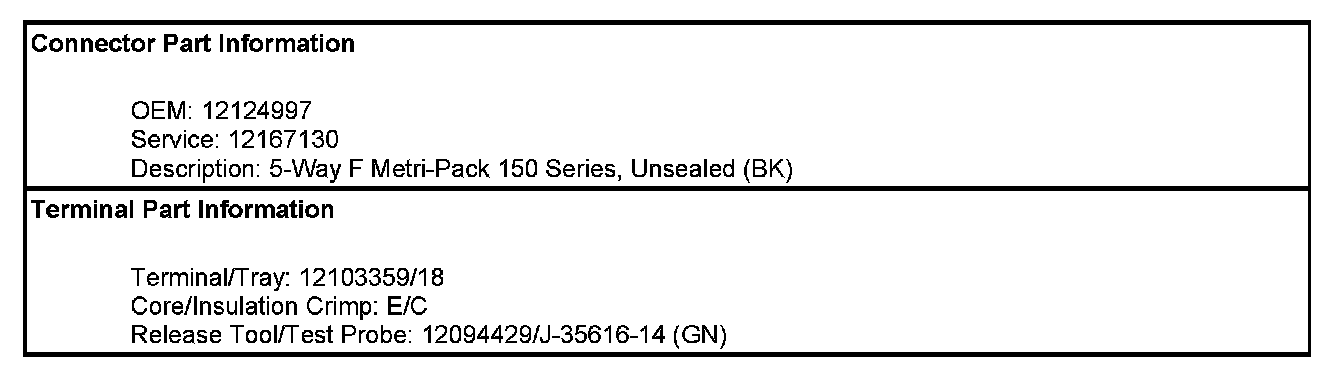

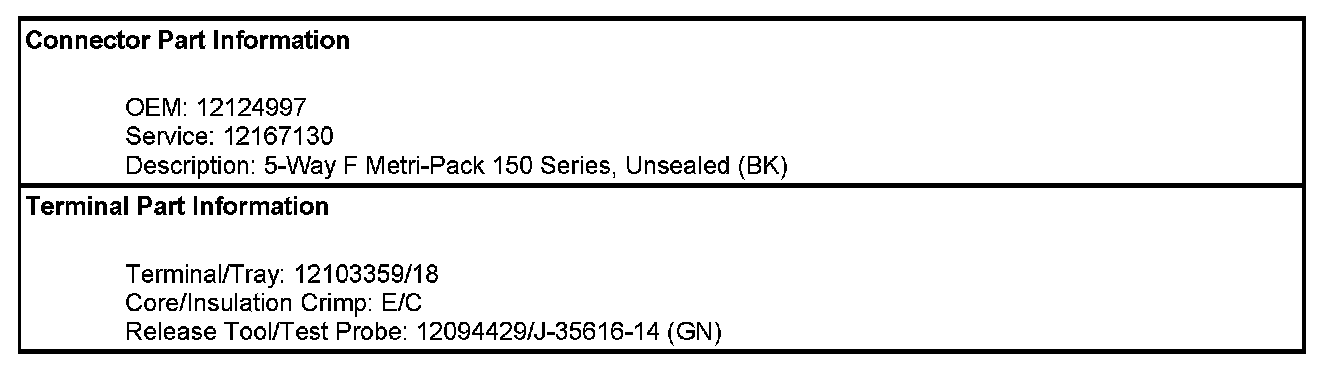

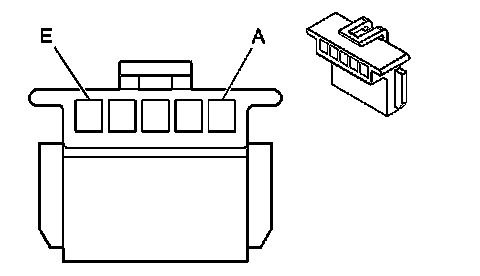

Component Connector End Views

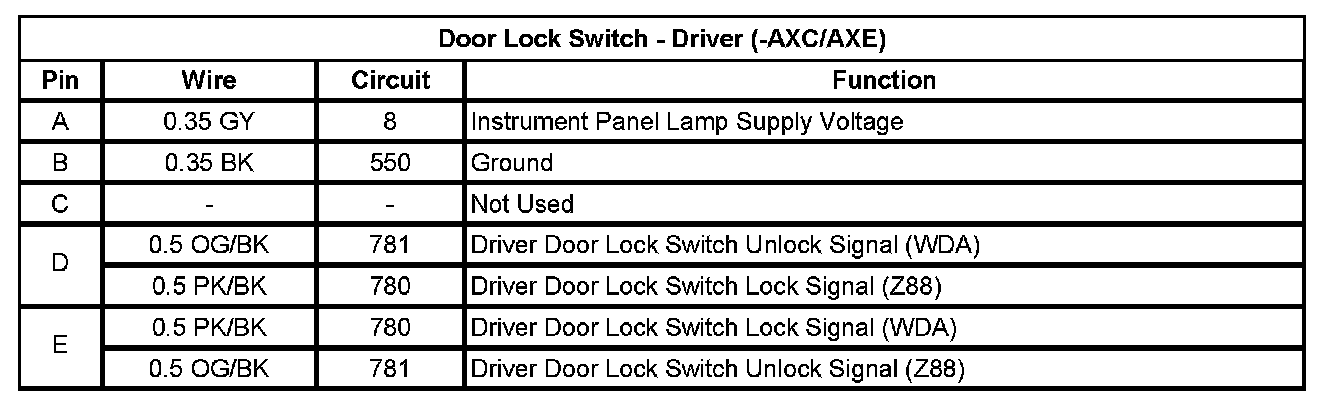

Door Lock Switch - Driver (-AXC/AXE)

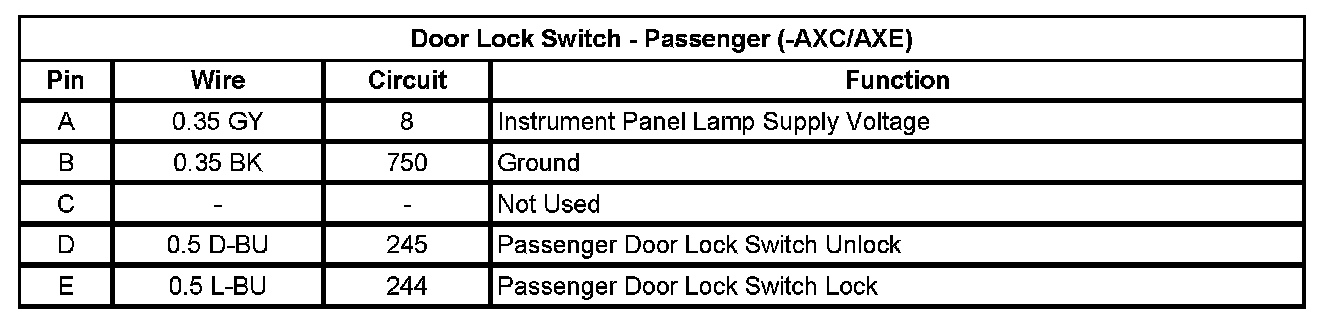

Door Lock Switch - Passenger (-AXC/AXE)
