Marker Lamp

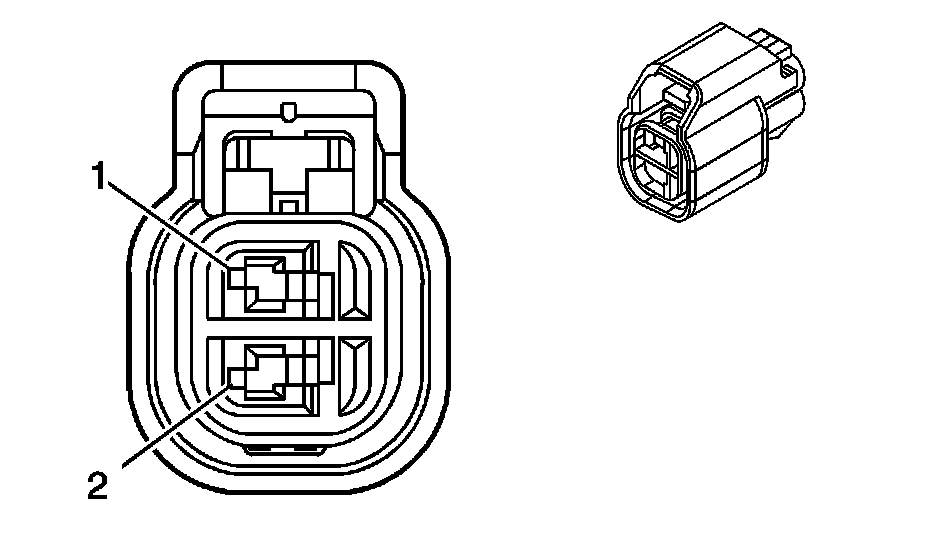

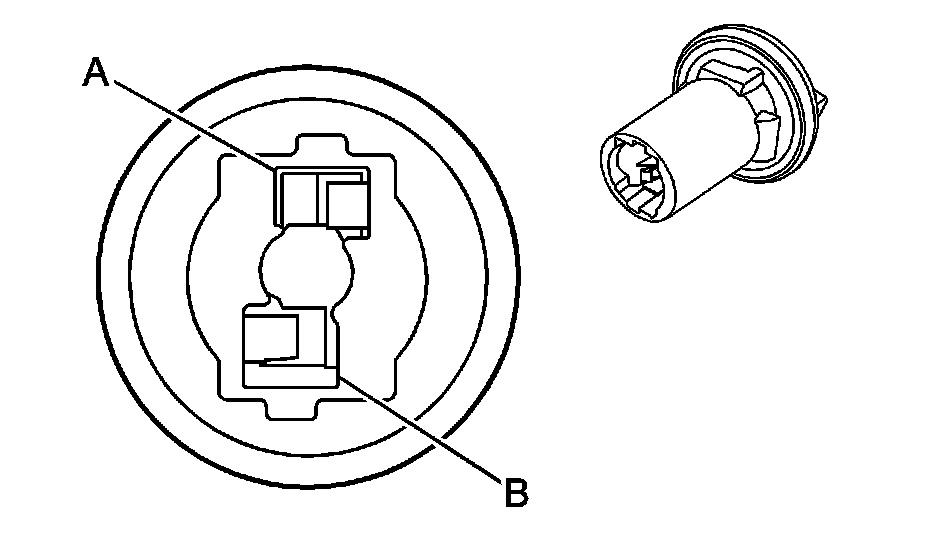

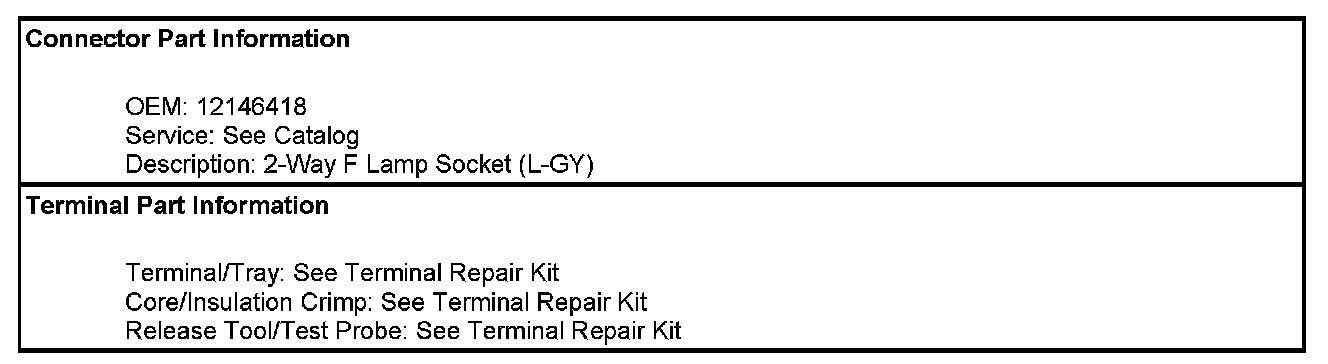

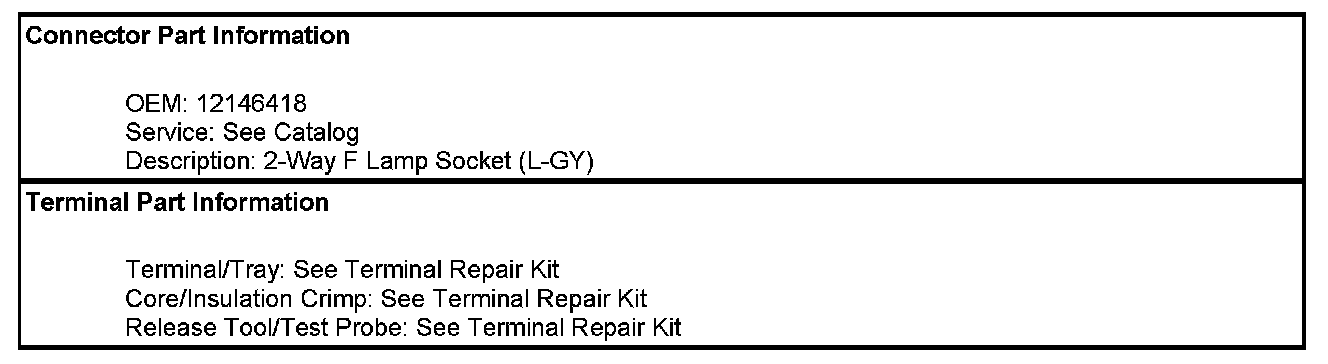

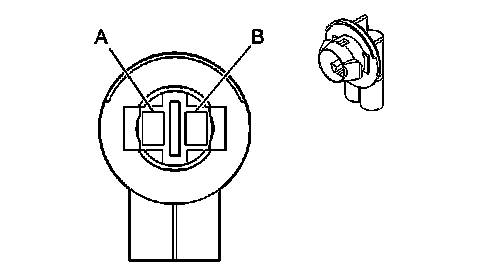

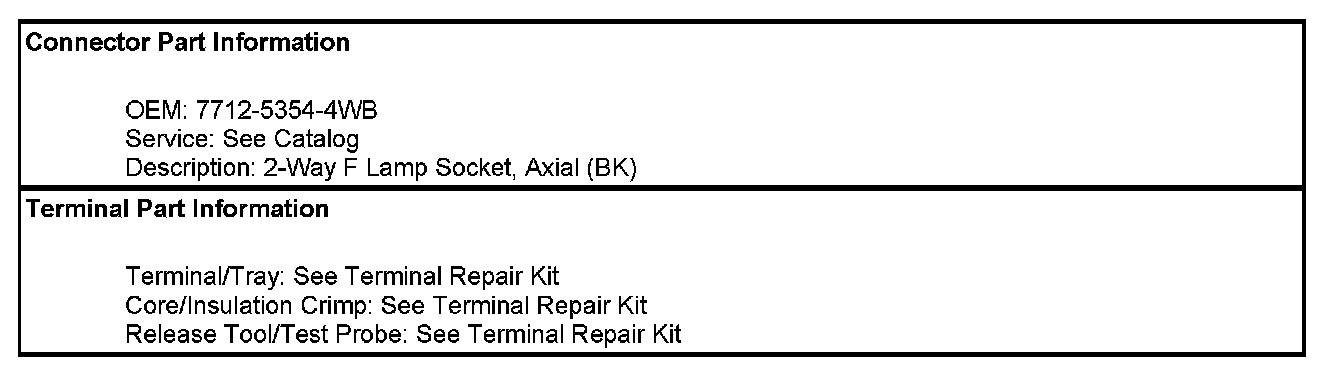

Component Connector End Views

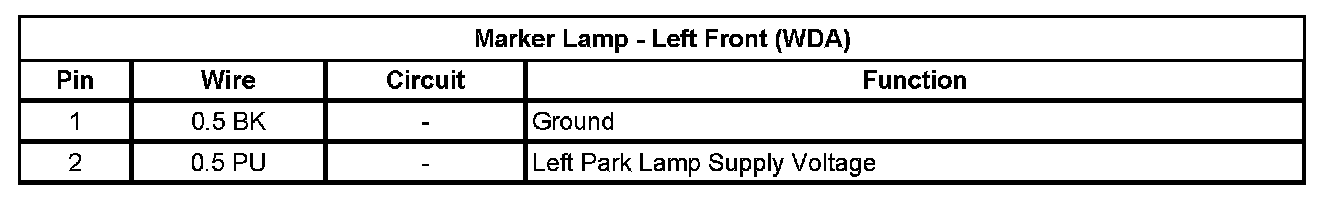

Marker Lamp - Left Front (WDA)

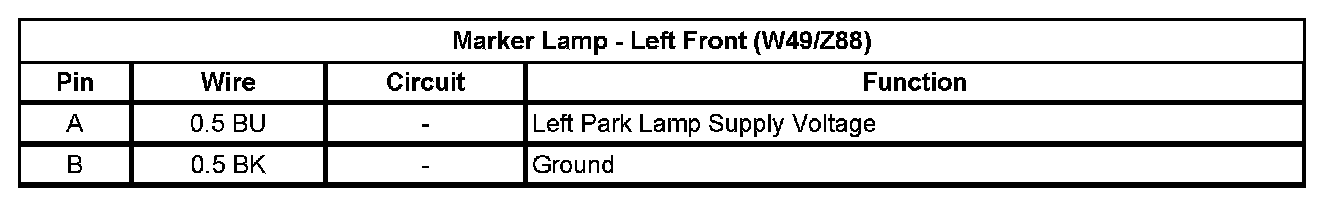

Marker Lamp - Left Front (W49/Z88)

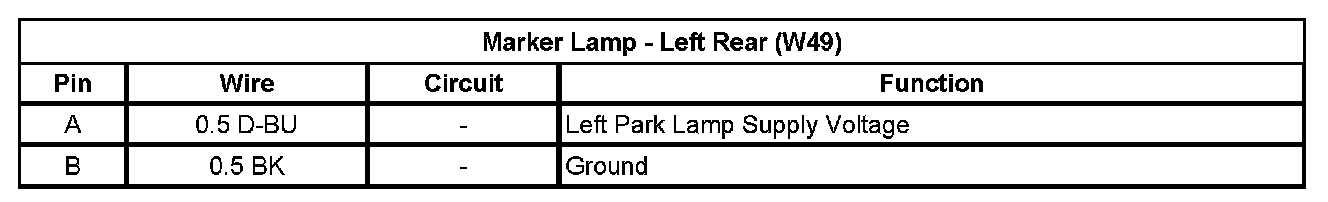

Marker Lamp - Left Rear (W49)

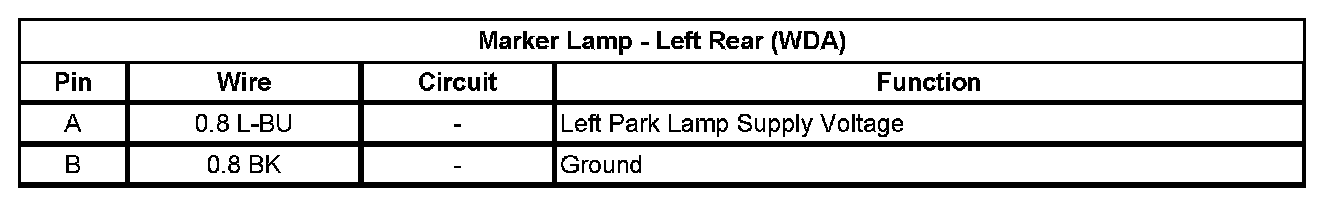

Marker Lamp - Left Rear (WDA)

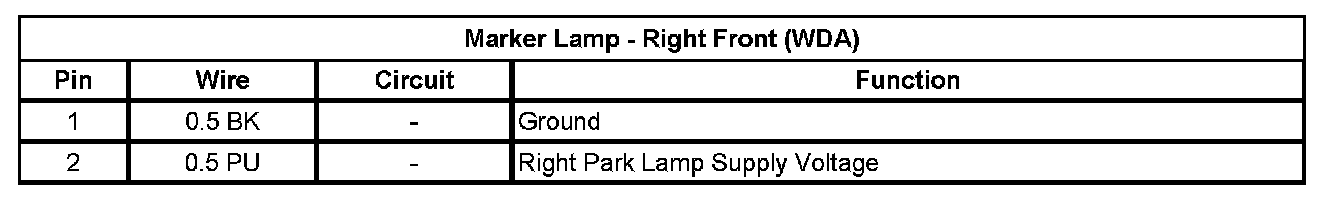

Marker Lamp - Right Front (WDA)

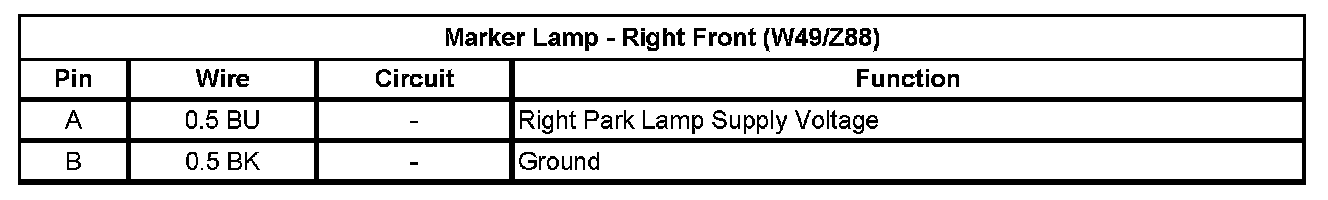

Marker Lamp - Right Front (W49/Z88)

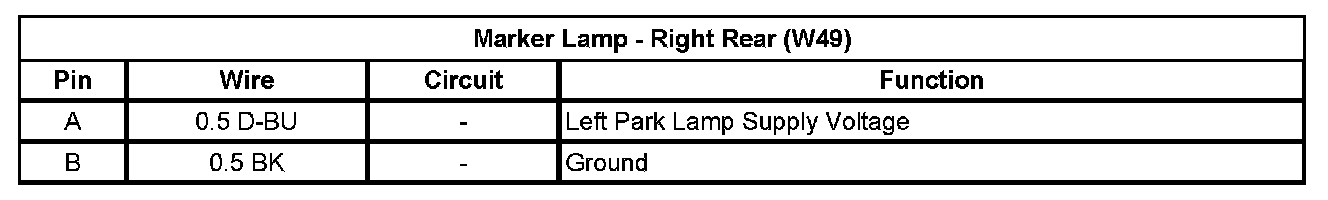

Marker Lamp - Right Rear (W49)

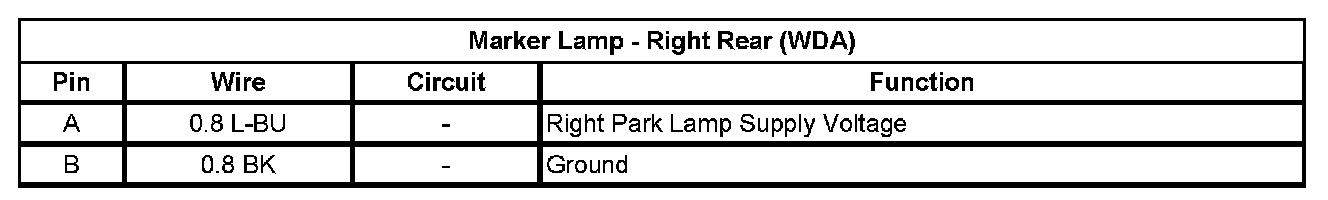

Marker Lamp - Right Rear (WDA)
