Front Door Latch



Component Connector End Views

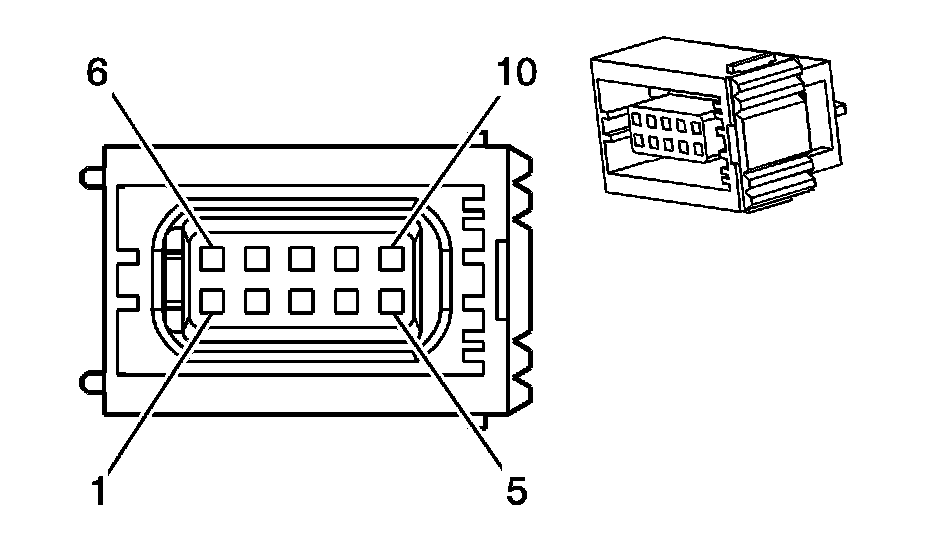

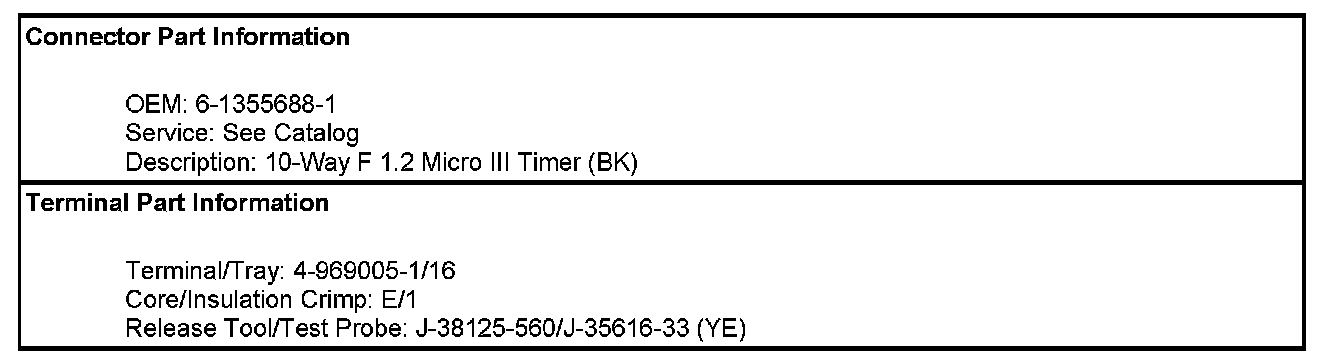

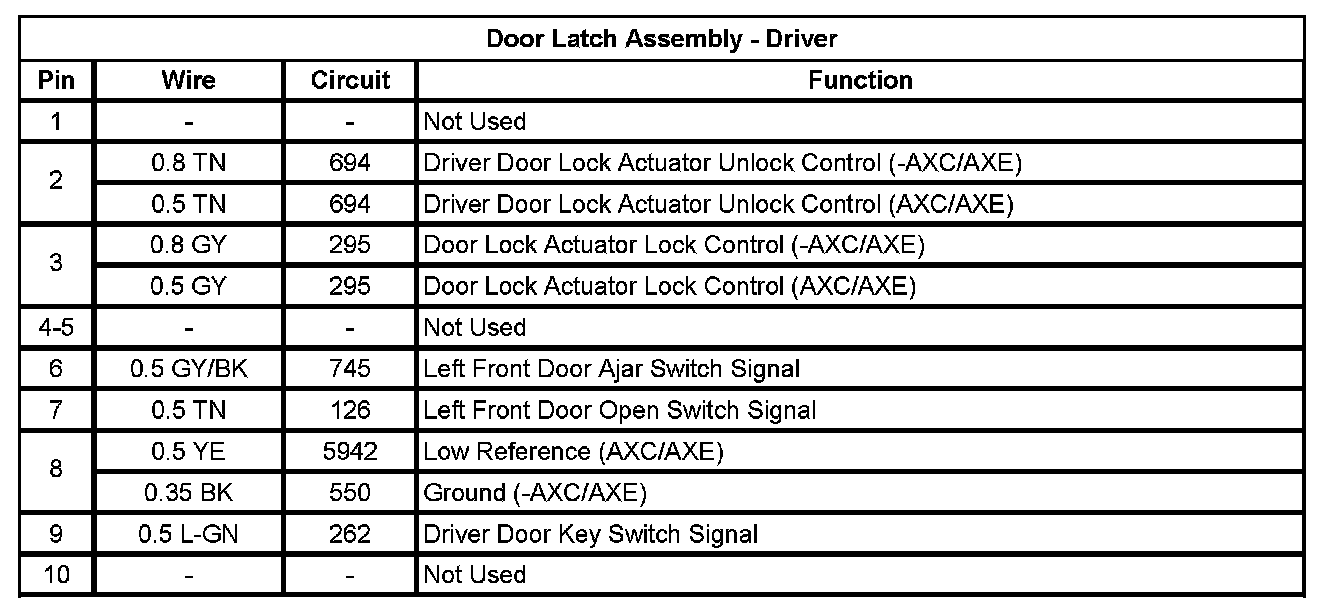

Door Latch Assembly - Driver

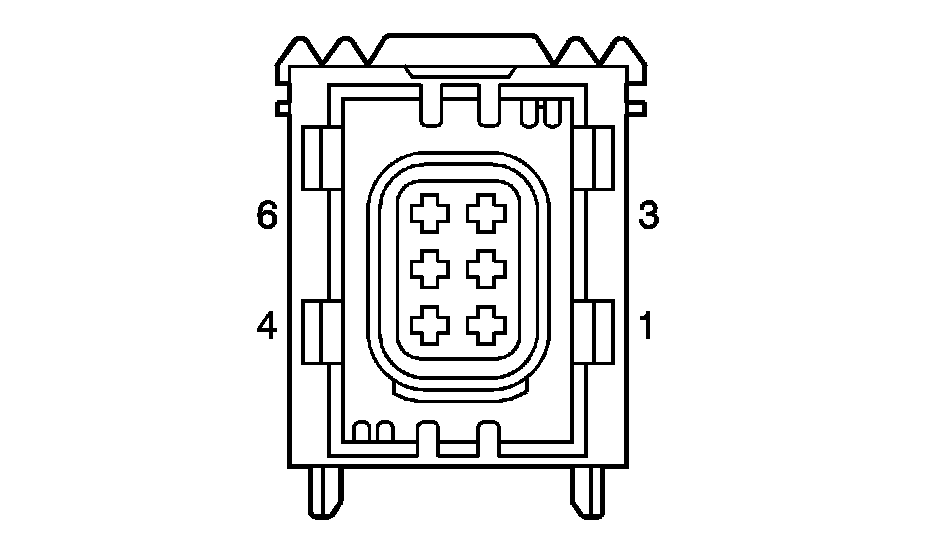

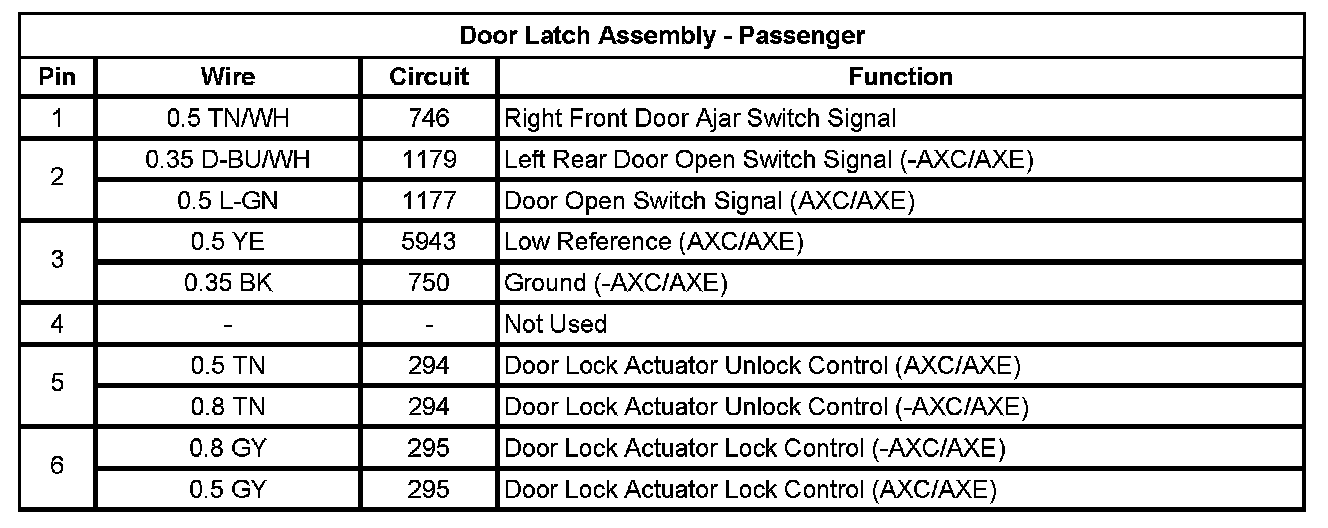

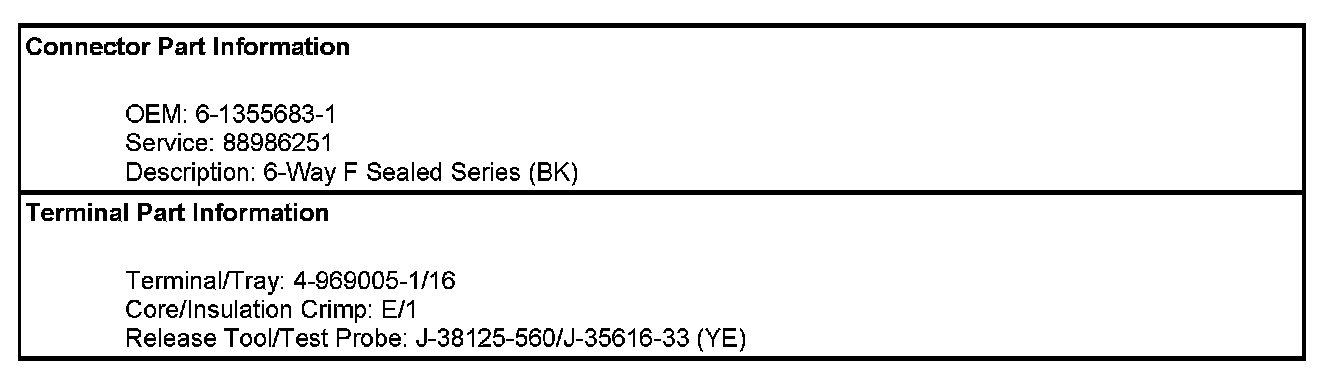

Door Latch Assembly - Passenger
