Fog/Driving Lamp

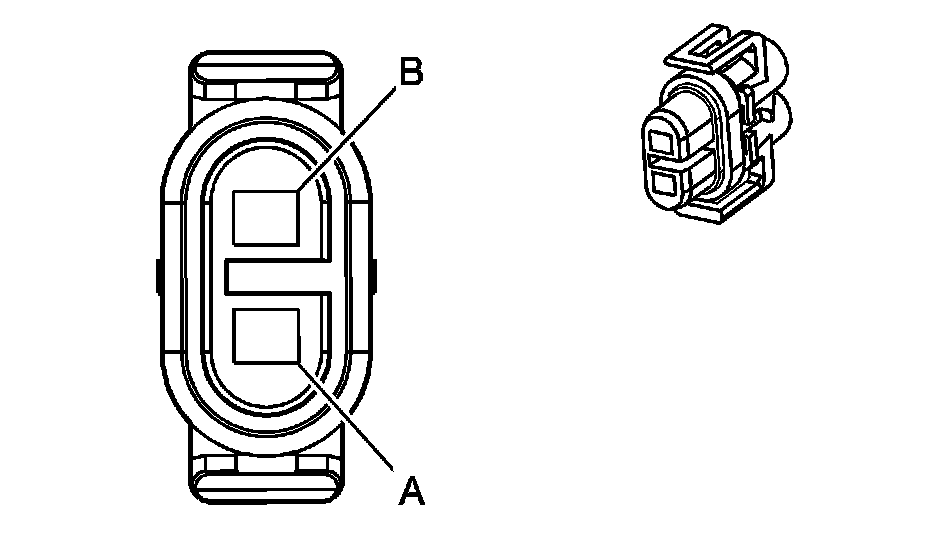

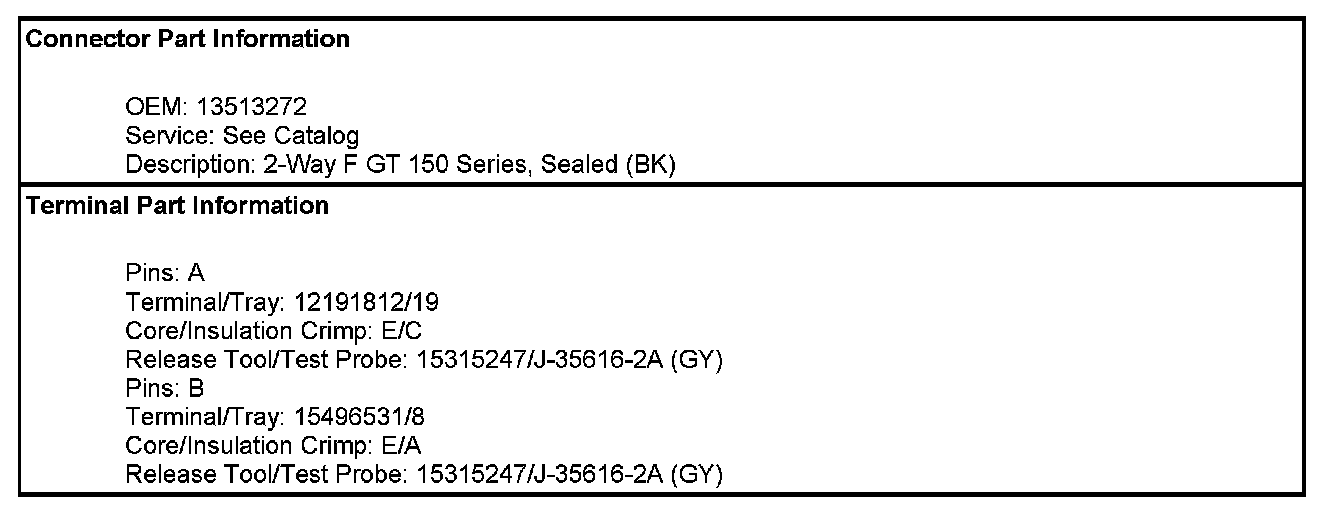

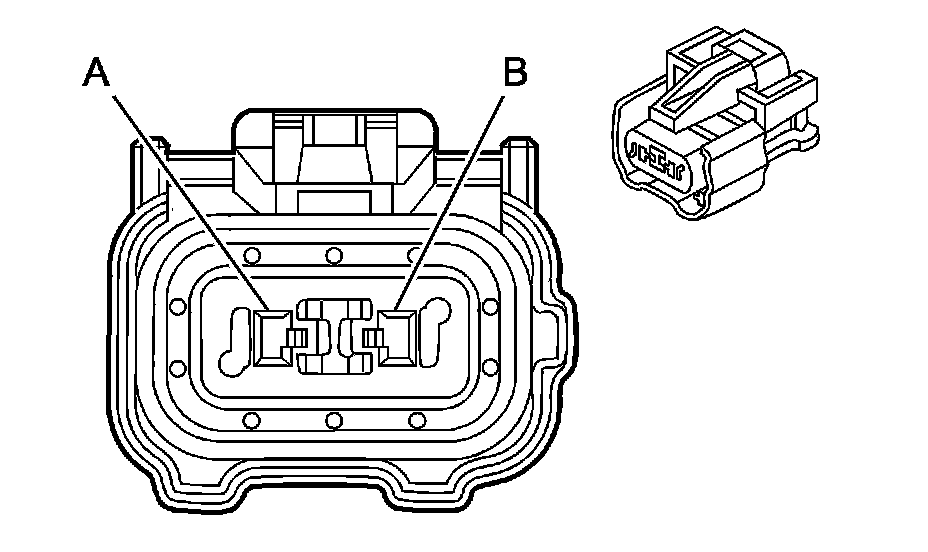

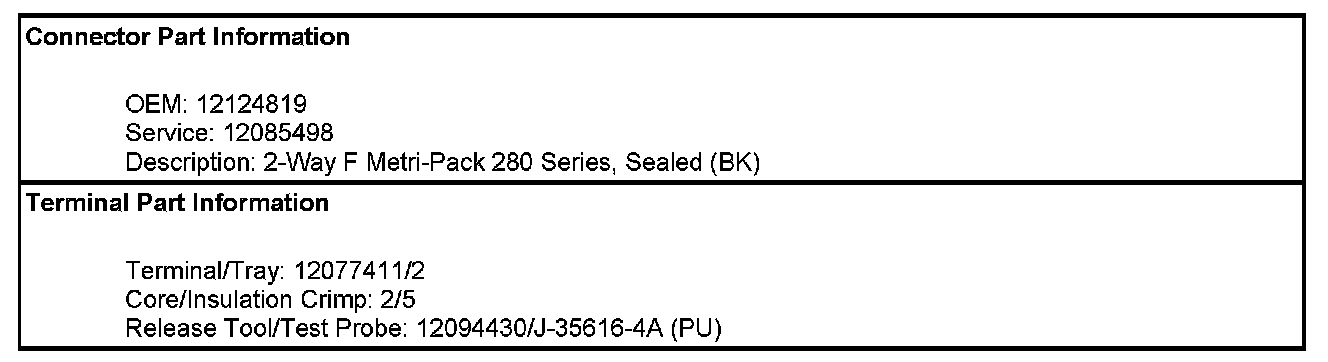

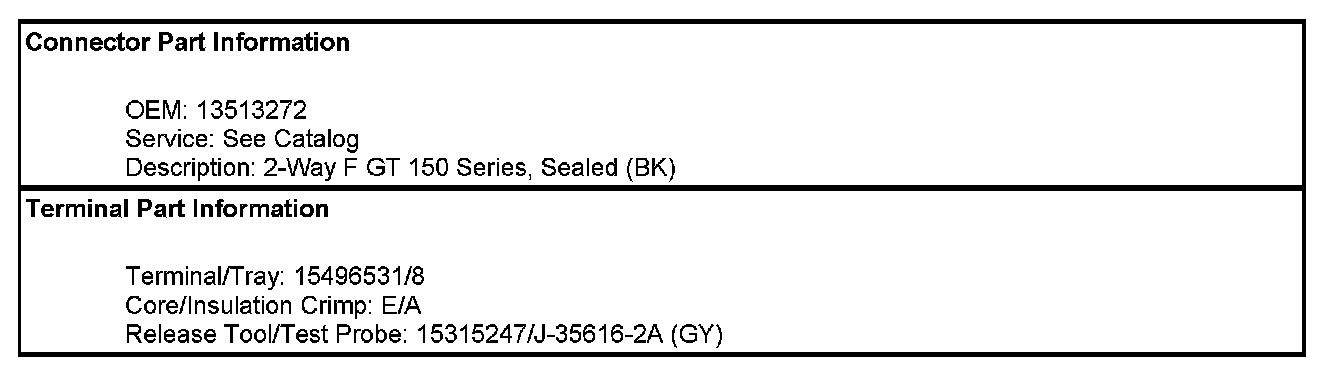

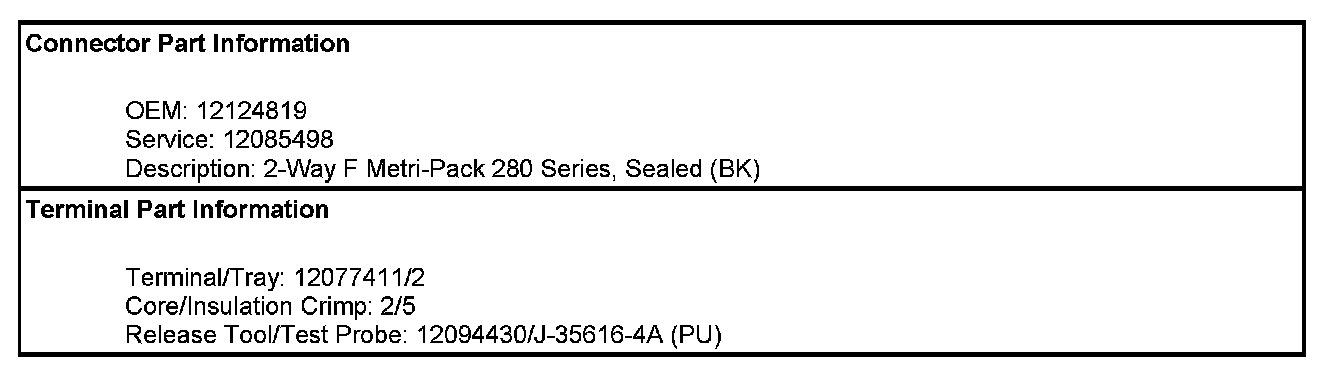

Component Connector End Views

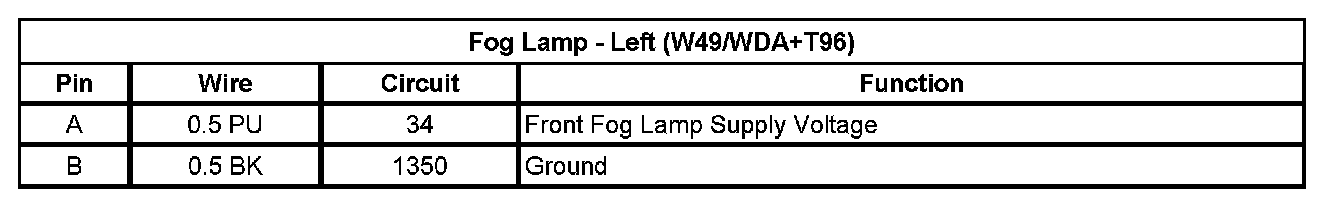

Fog Lamp - Left (W49/WDA+T96)

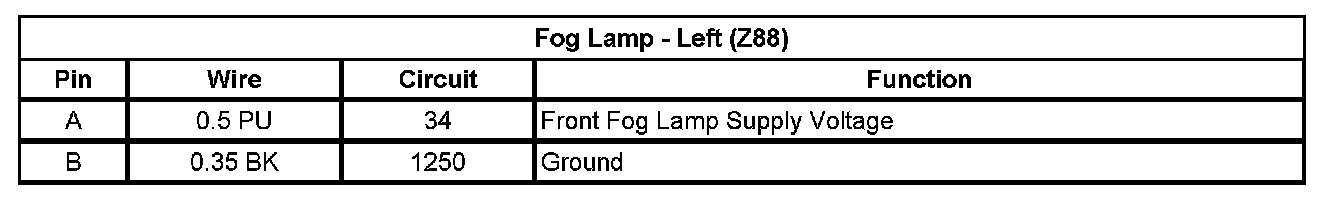

Fog Lamp - Left (Z88)

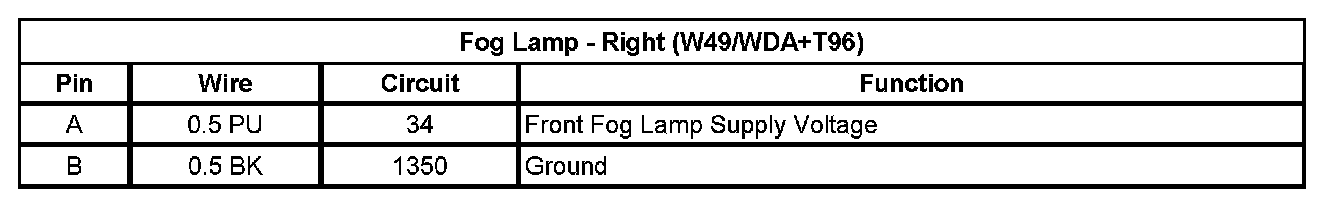

Fog Lamp - Right (W49/WDA+T96)

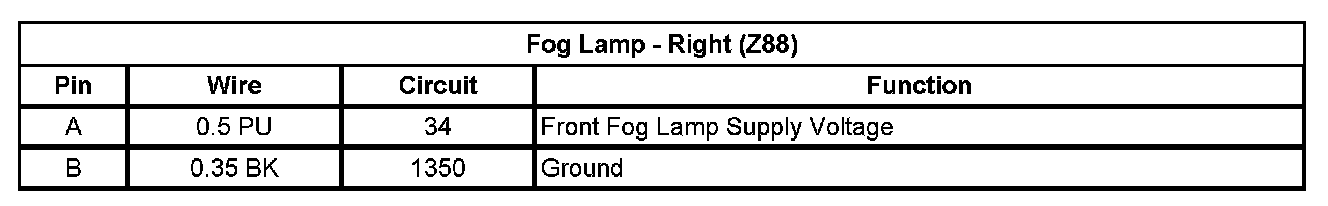

Fog Lamp - Right (Z88)
