Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

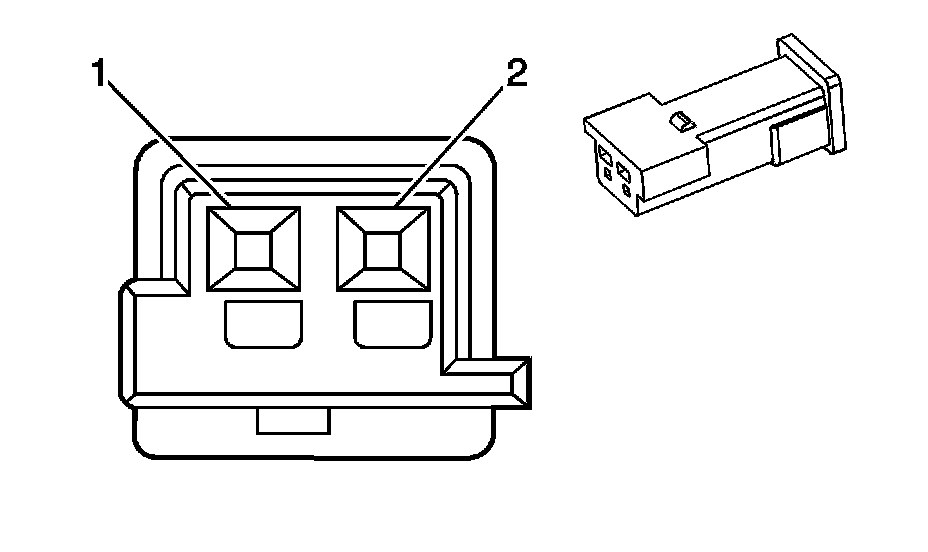

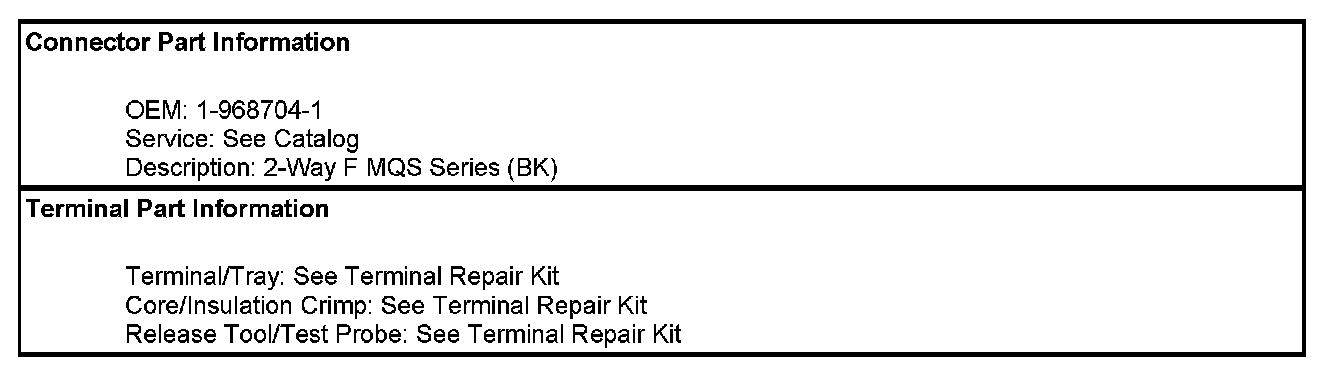

Component Connector End Views

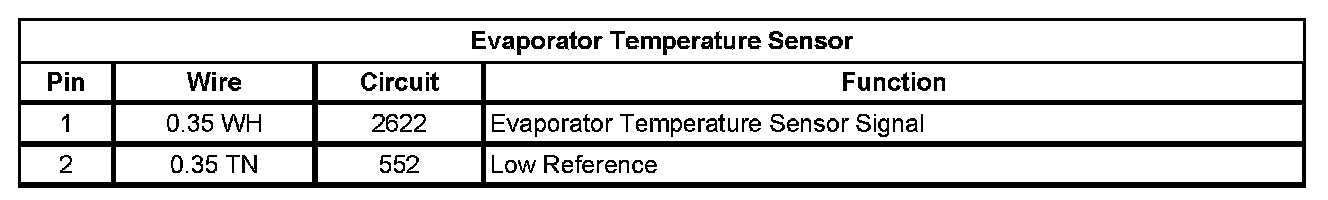

Evaporator Temperature Sensor
