Daytime Running Lamp



Component Connector End Views

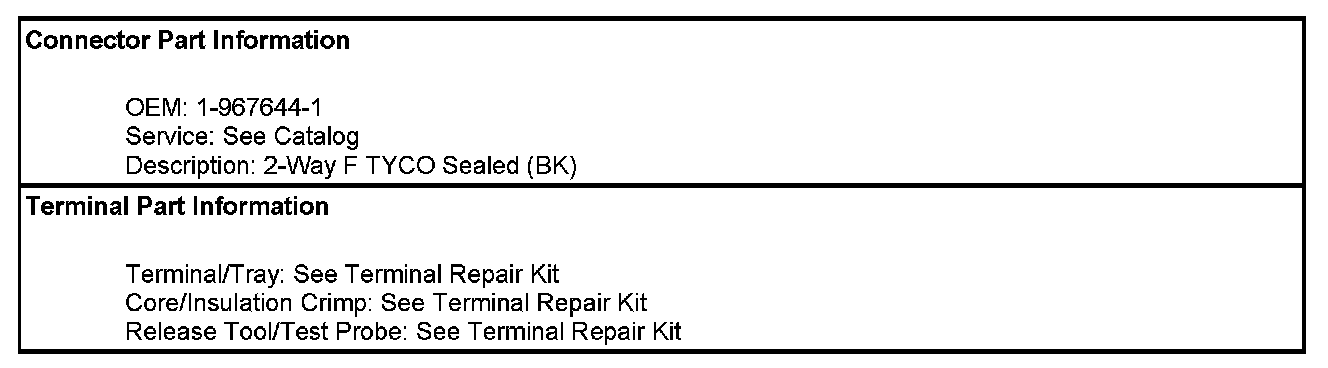

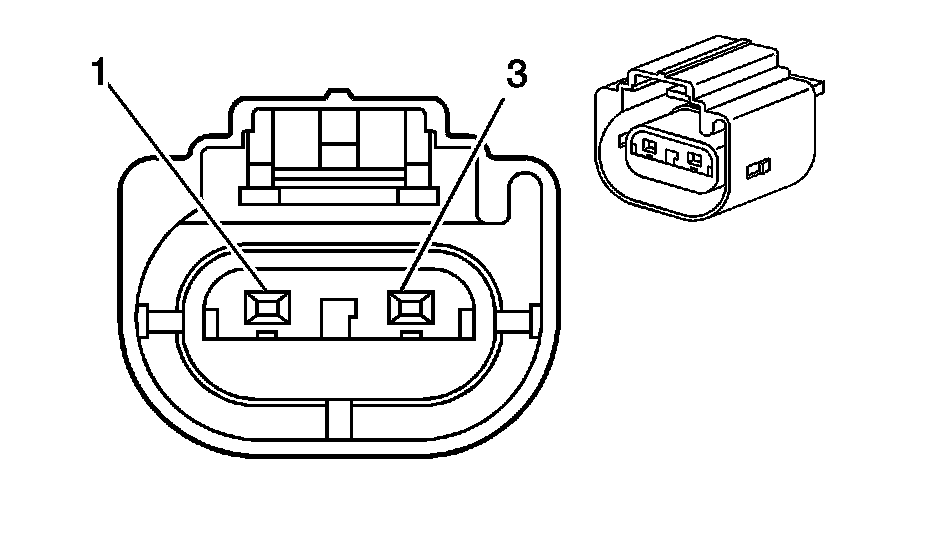

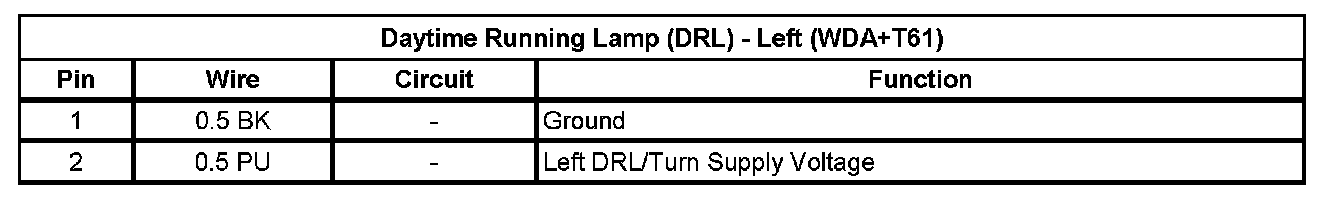

Daytime Running Lamp (DRL) - Left (WDA+T61)

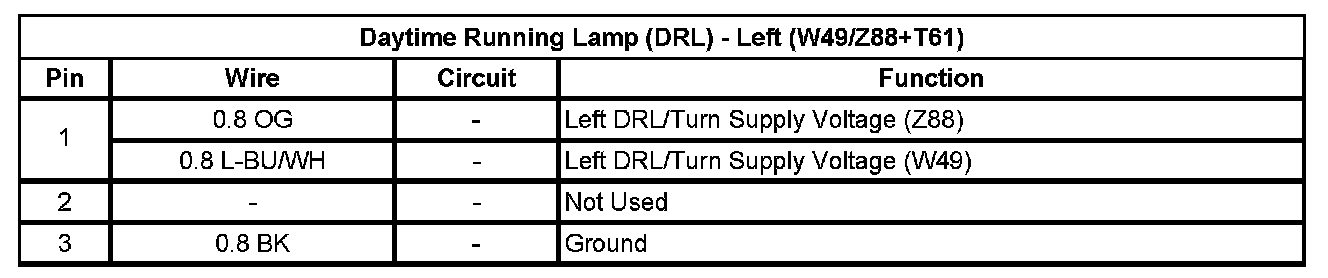

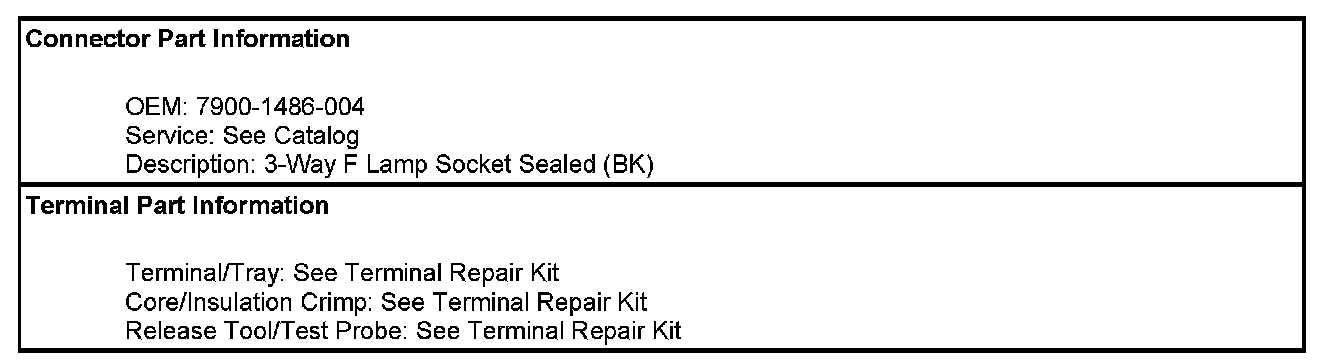

Daytime Running Lamp (DRL) - Left (W49/Z88+T61)

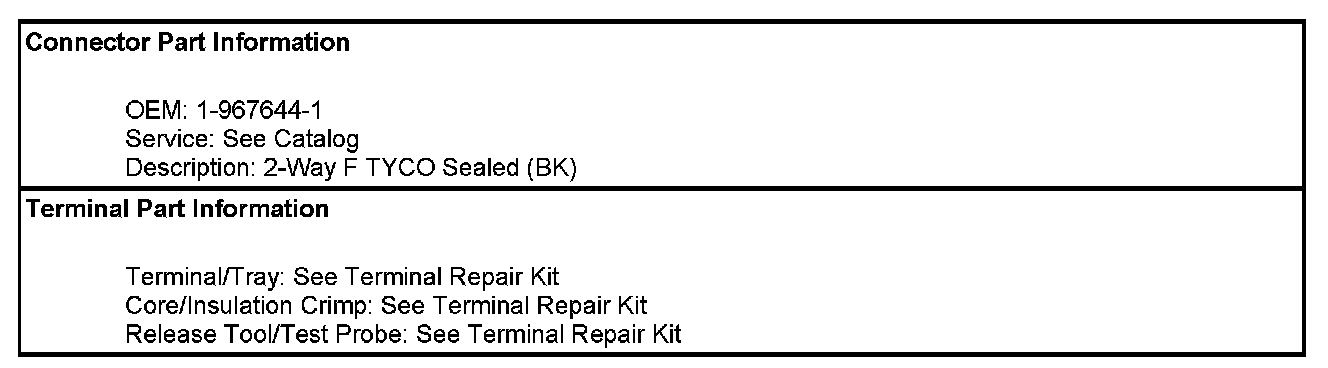

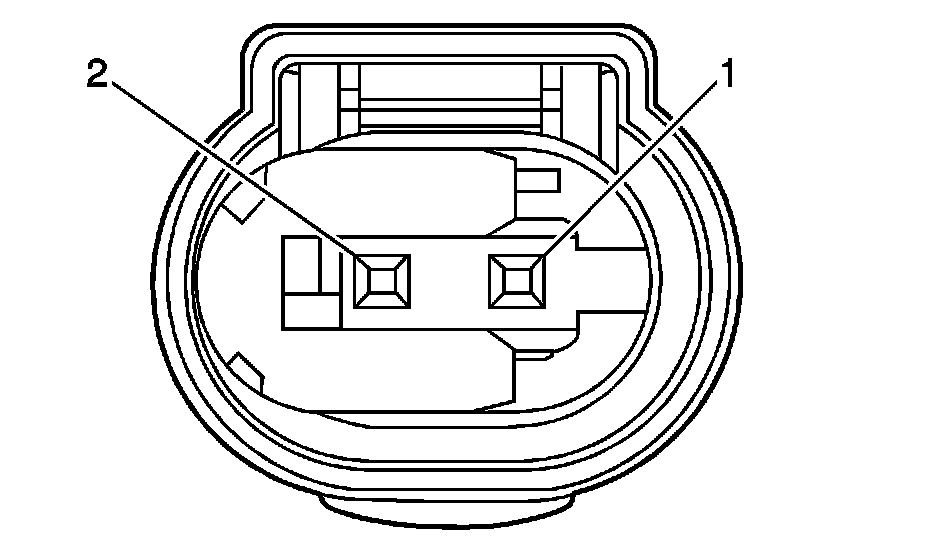

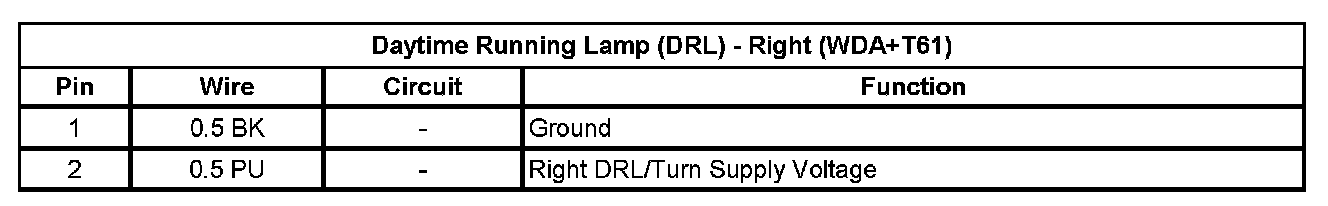

Daytime Running Lamp (DRL) - Right (WDA+T61)

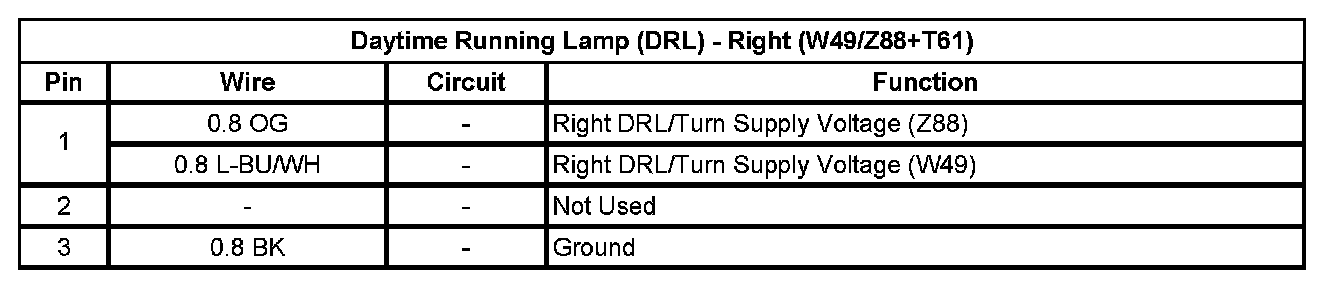

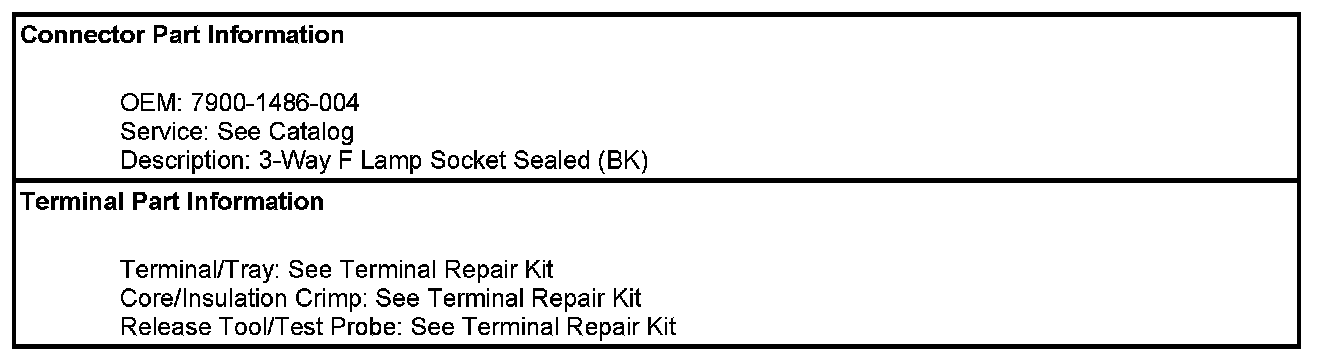

Daytime Running Lamp (DRL) - Right (W49/Z88+T61)
