System Diagram

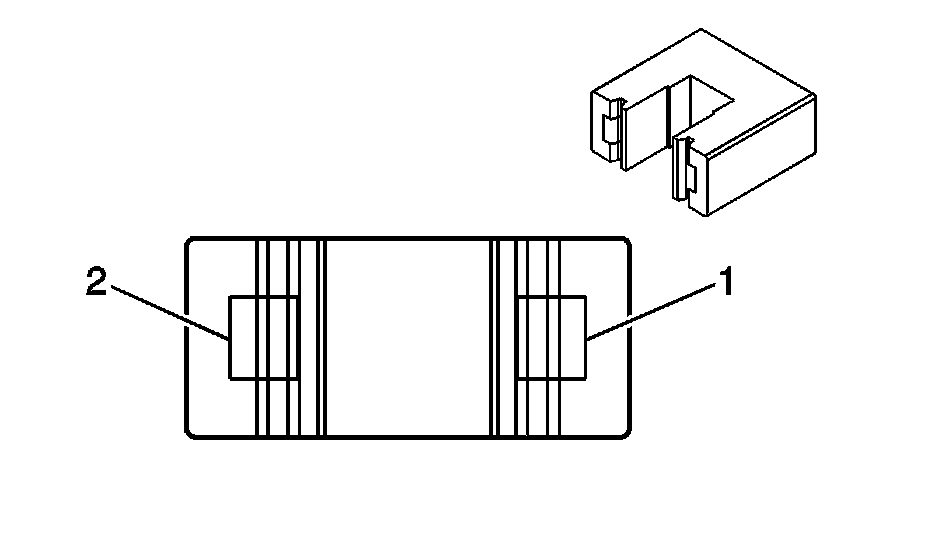

Component Connector End Views

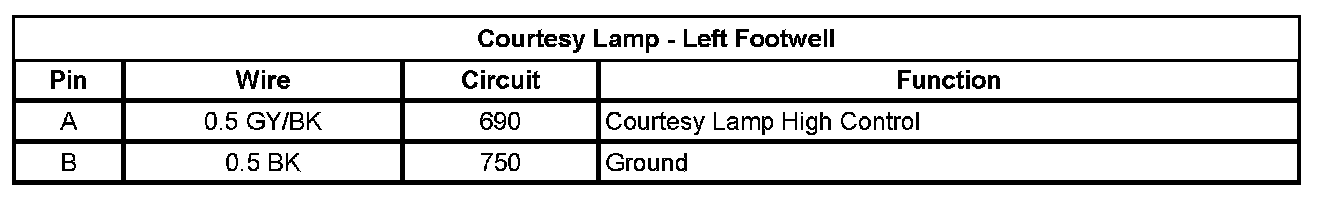

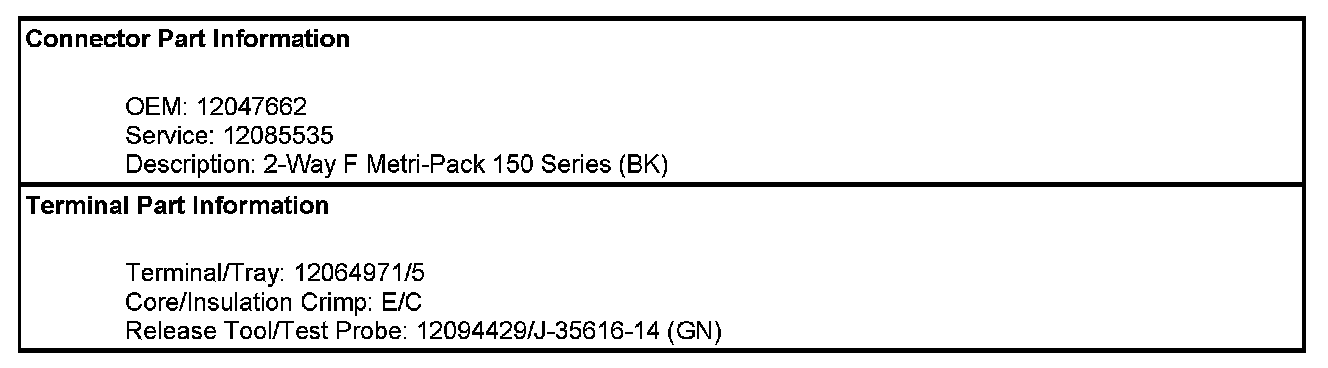

Courtesy Lamp - Left Footwell

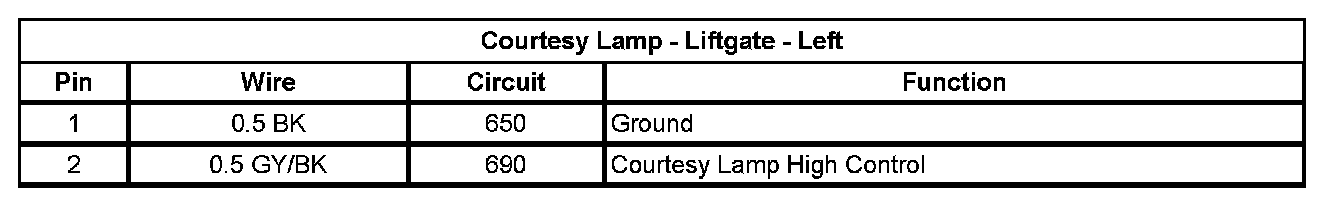

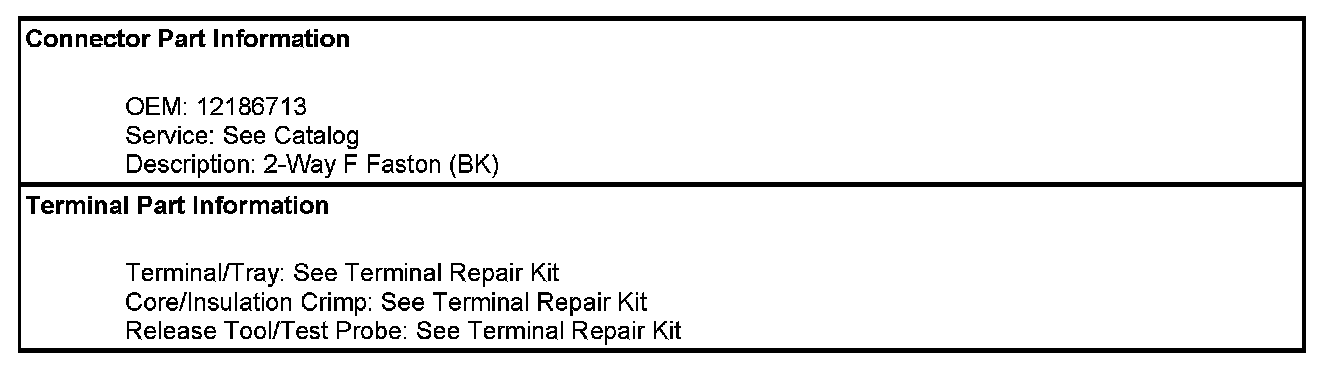

Courtesy Lamp - Liftgate - Left

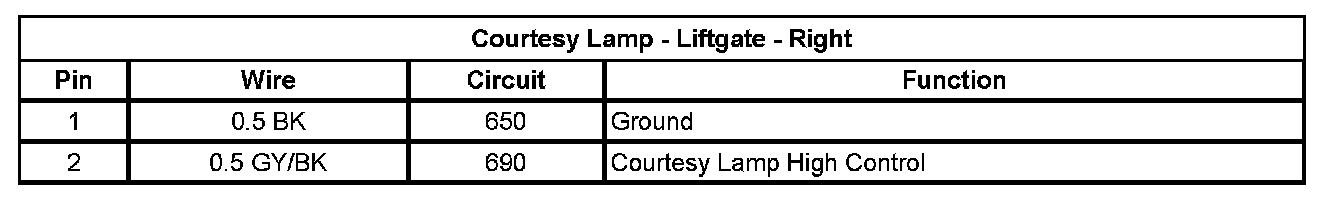

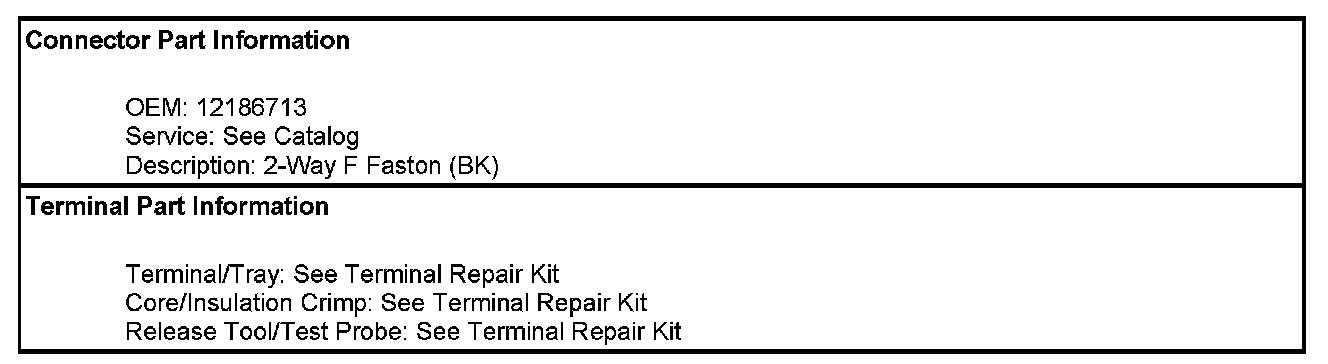

Courtesy Lamp - Liftgate - Right

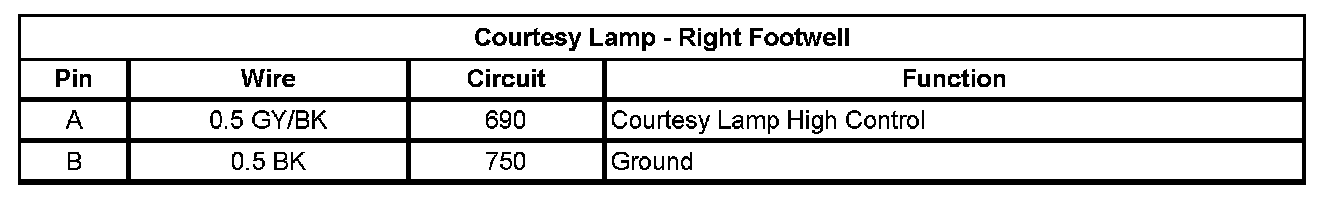

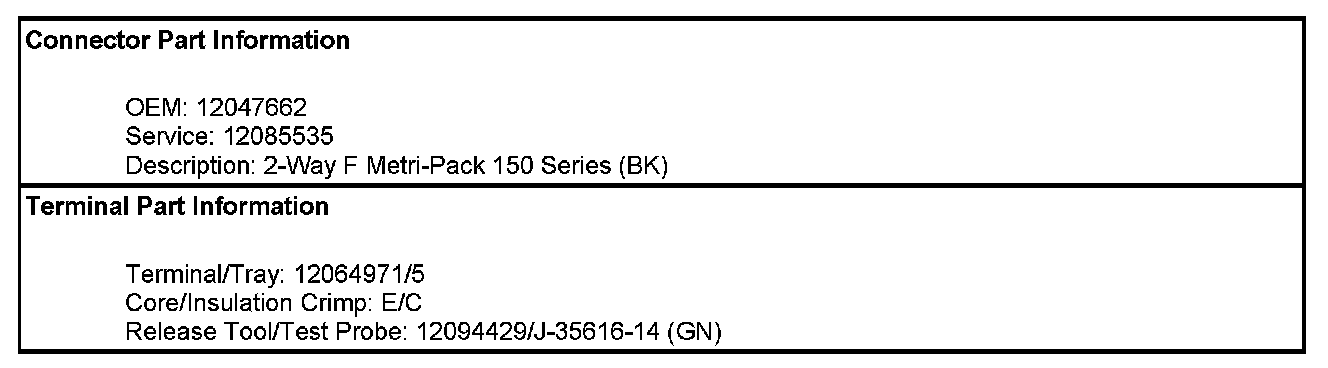

Courtesy Lamp - Right Footwell
