Parking Assist Control Module



Component Connector End Views

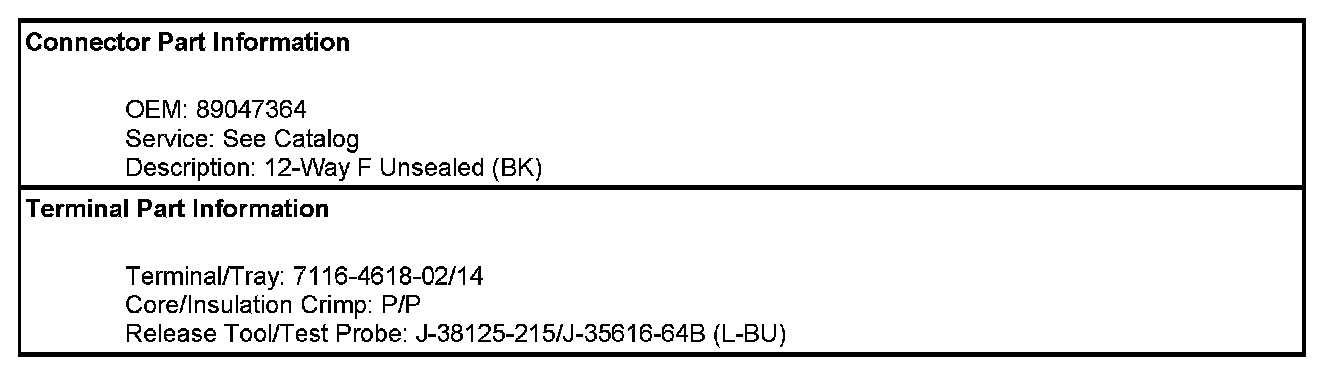

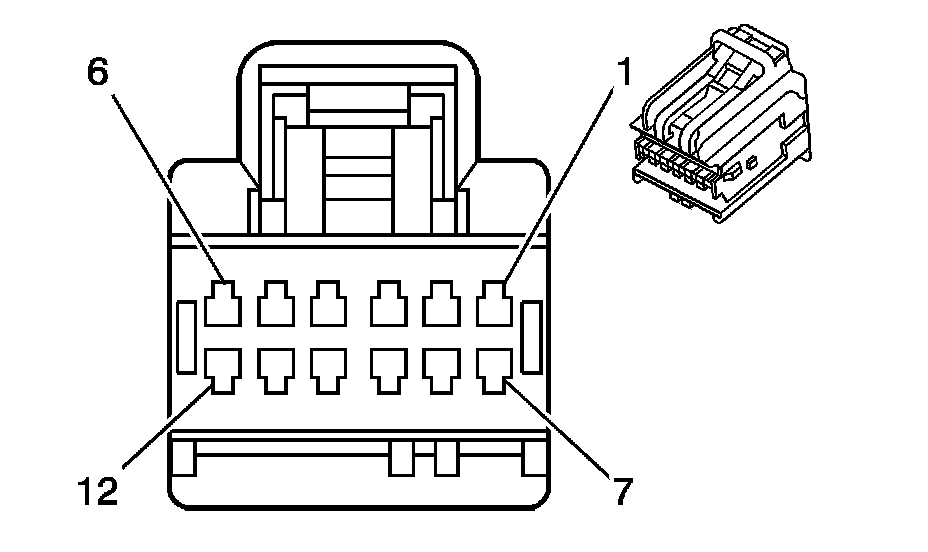

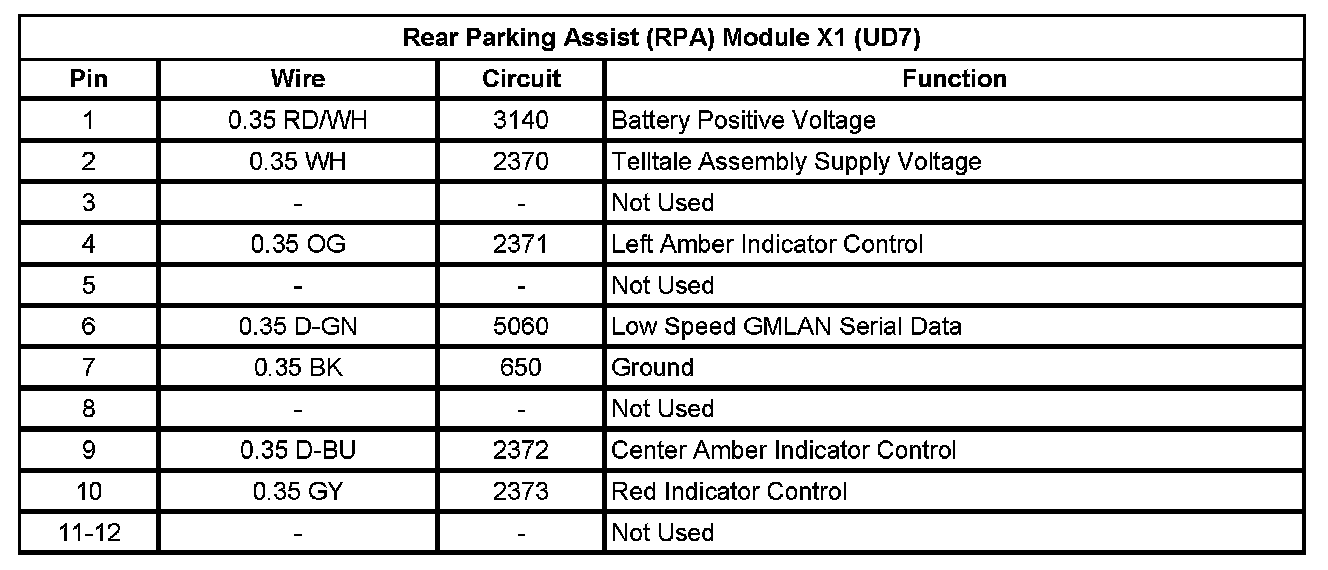

Rear Parking Assist (RPA) Module X1 (UD7)

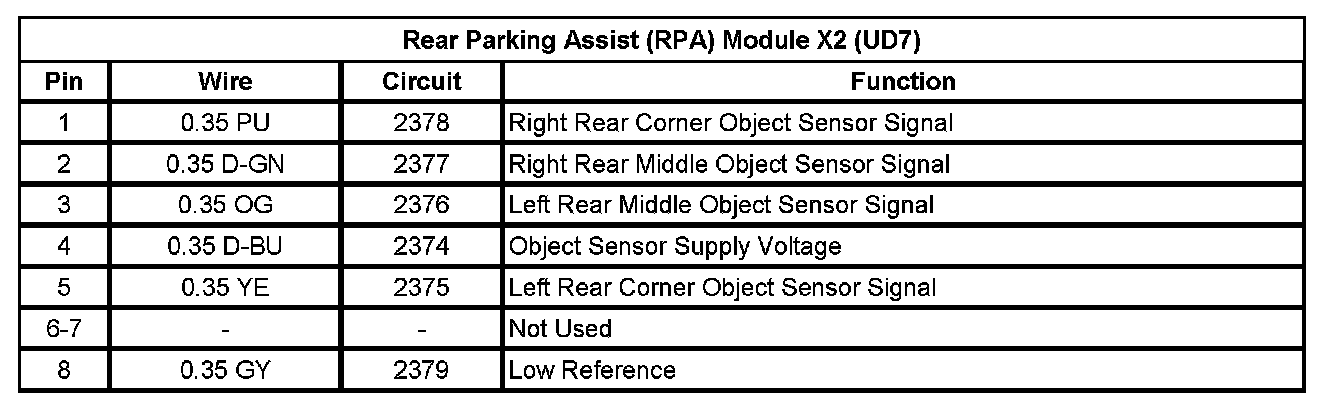

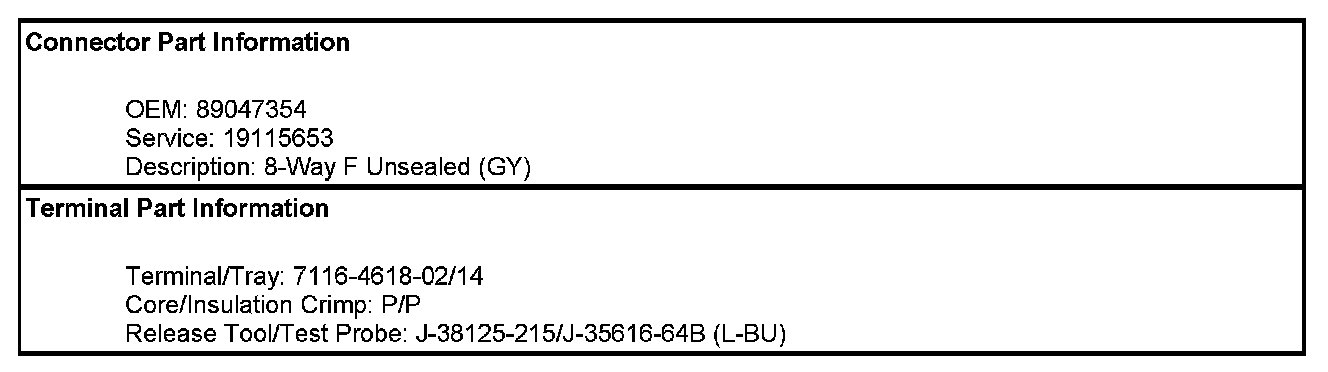

Rear Parking Assist (RPA) Module X2 (UD7)
