Home >> Buick >> 2008 >> Enclave AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cargo Lamp

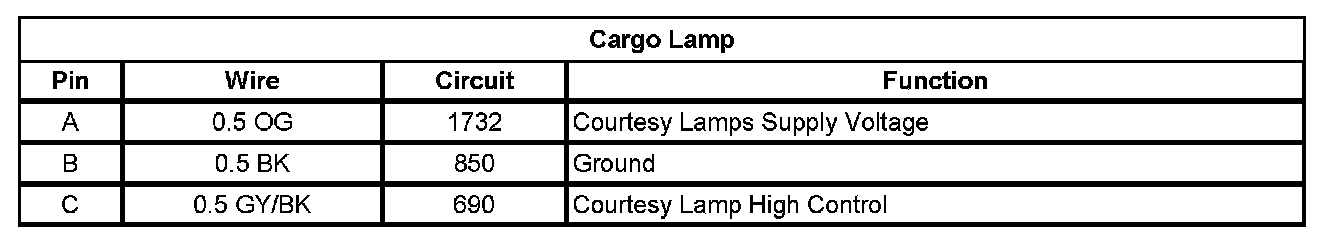

Cargo Lamp

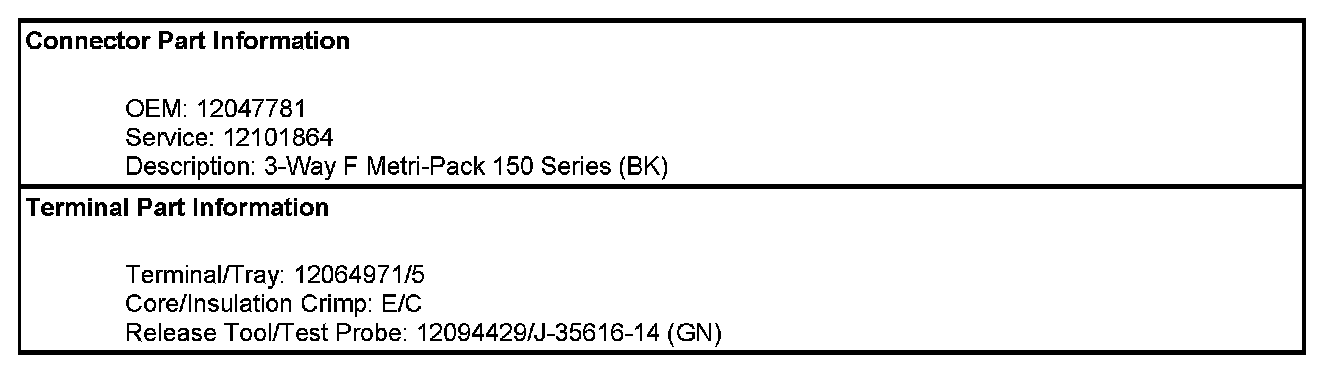

Component Connector End Views

Cargo Lamp
