Brake Lamp

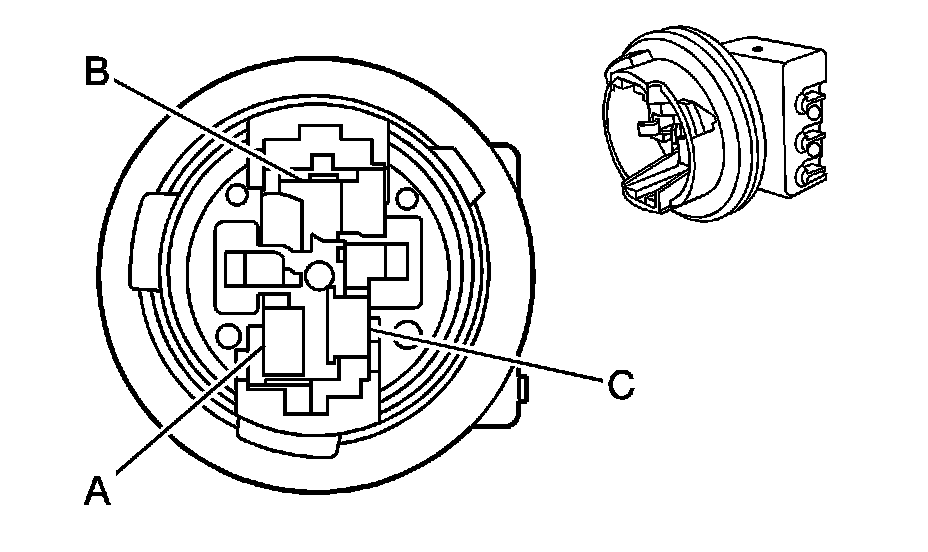

Component Connector End Views

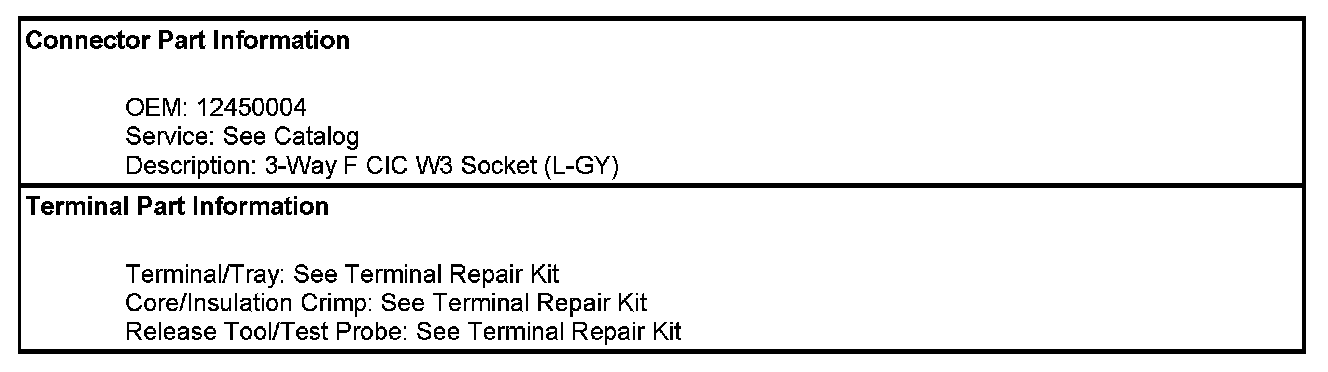

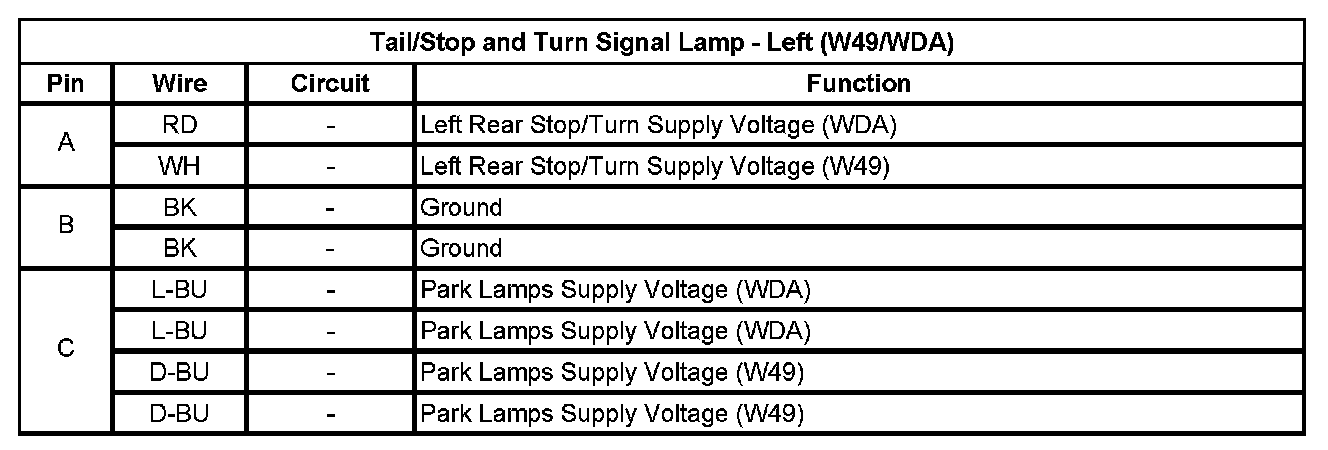

Tail/Stop and Turn Signal Lamp - Left (W49/WDA)

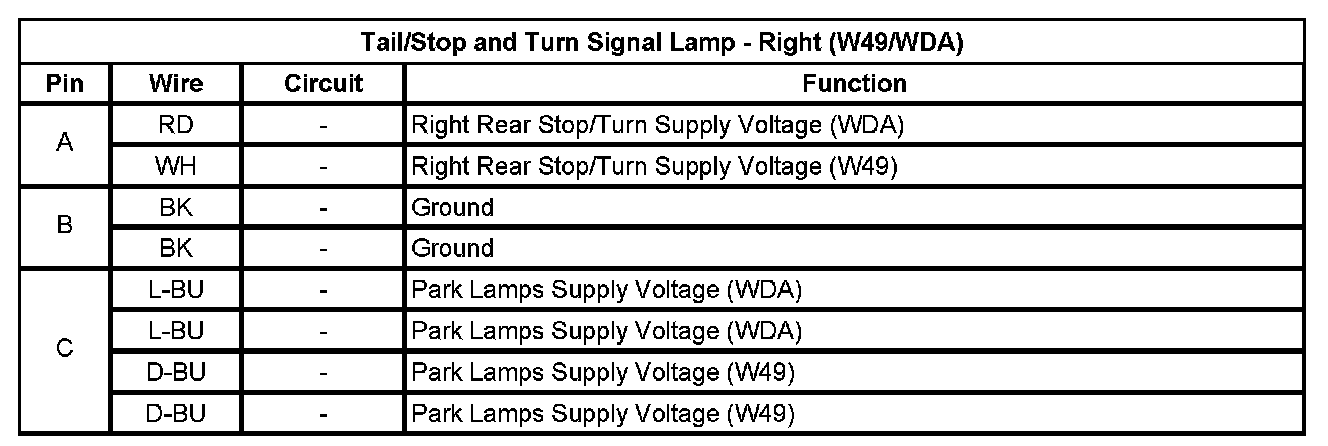

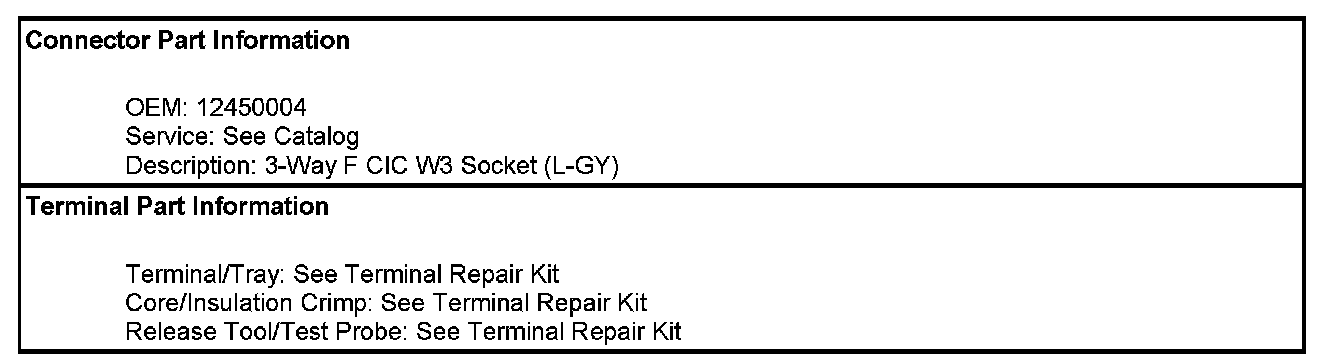

Tail/Stop and Turn Signal Lamp - Right (W49/WDA)
