Auxiliary Power Outlet



Component Connector End Views

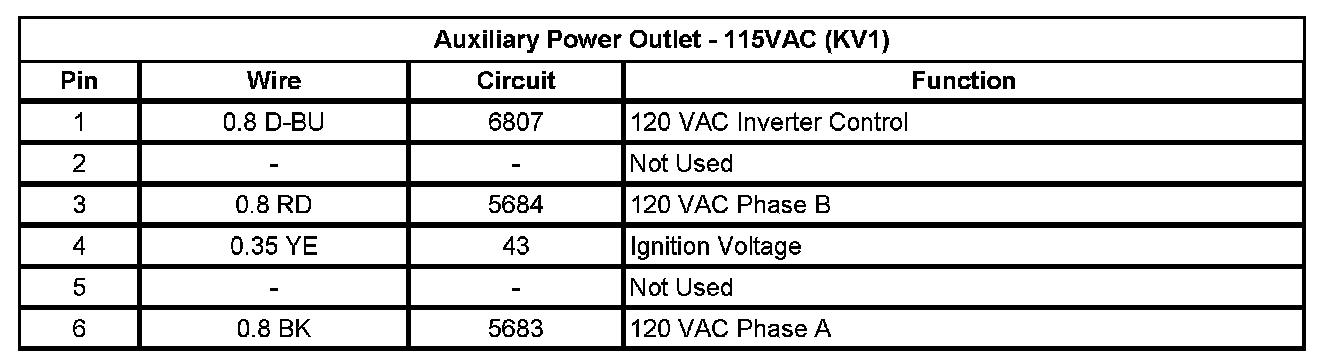

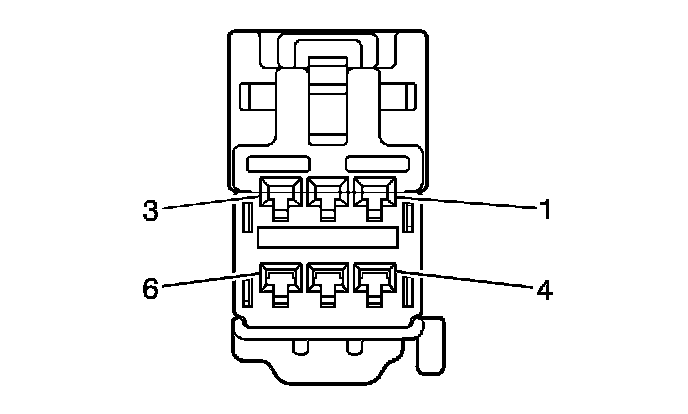

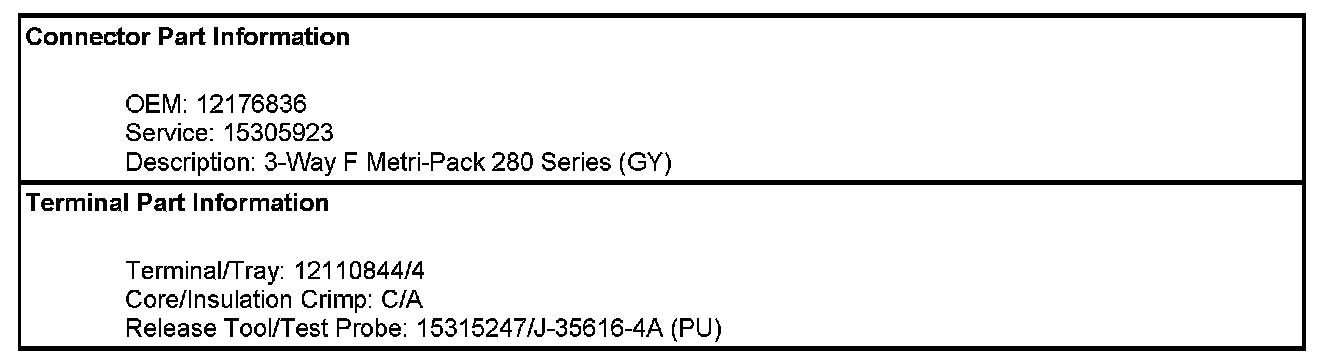

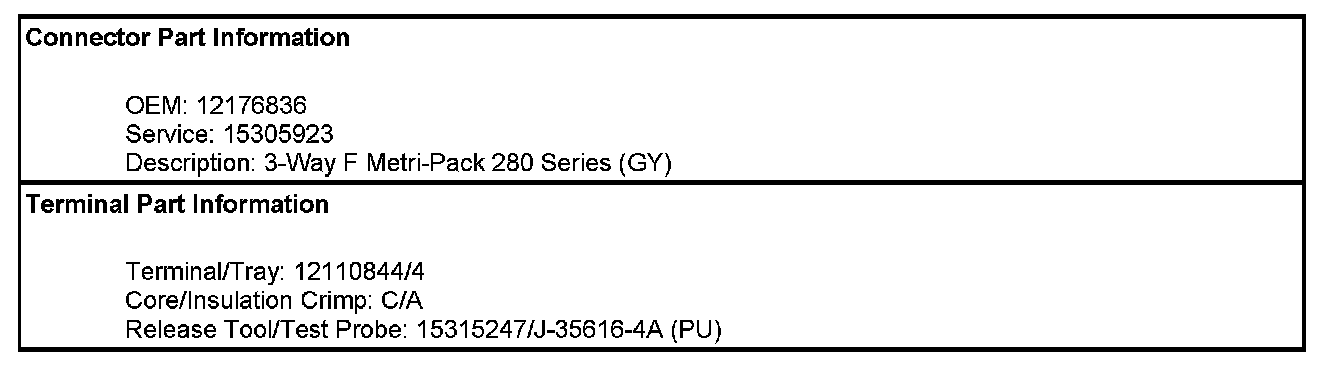

Auxiliary Power Outlet - 115VAC (KV1)

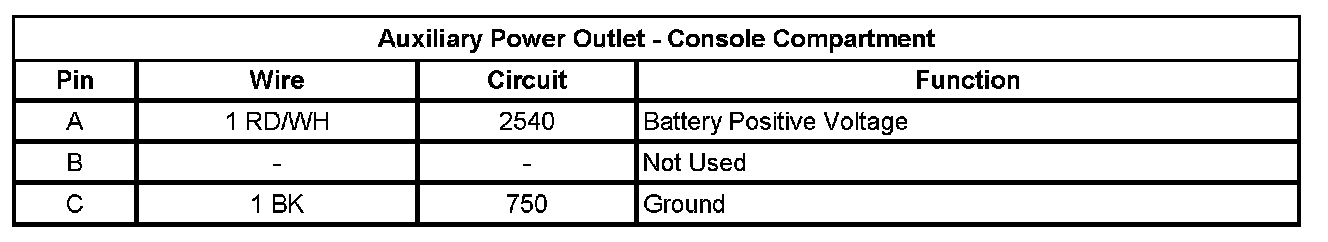

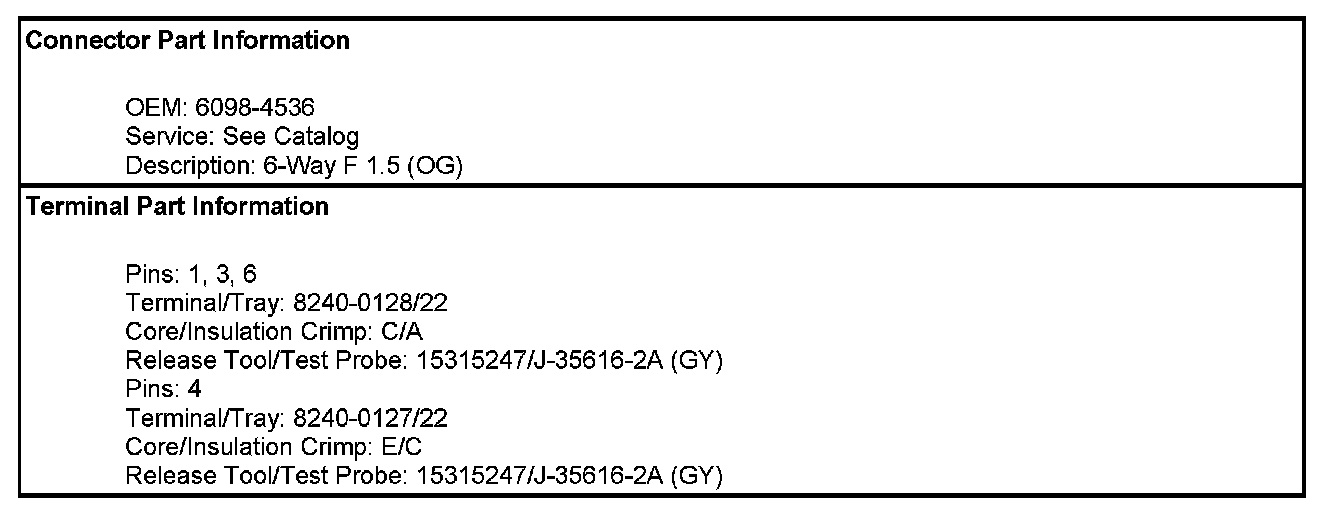

Auxiliary Power Outlet - Console Compartment

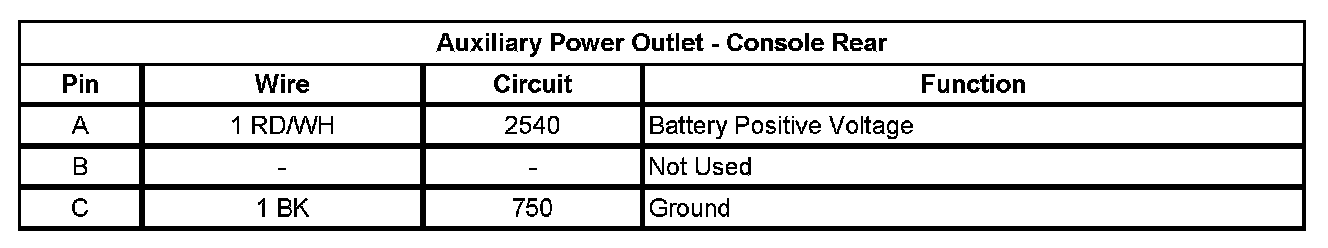

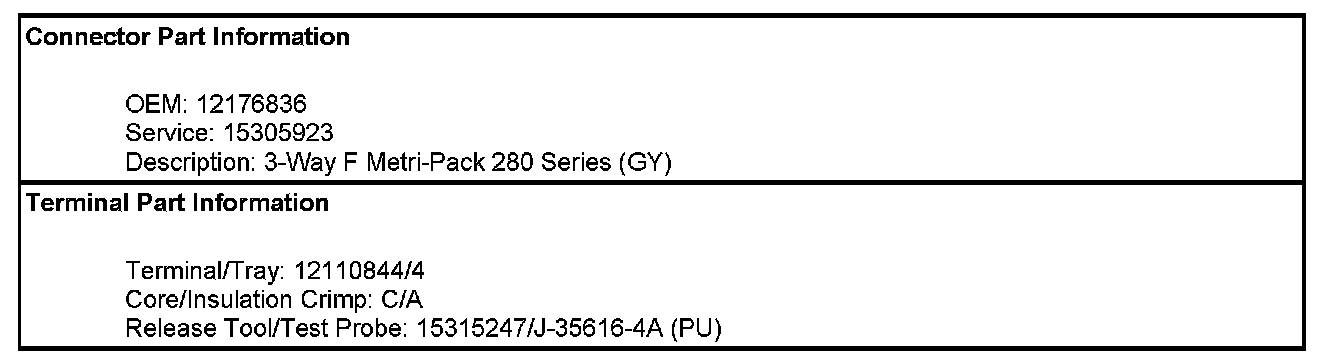

Auxiliary Power Outlet - Console Rear

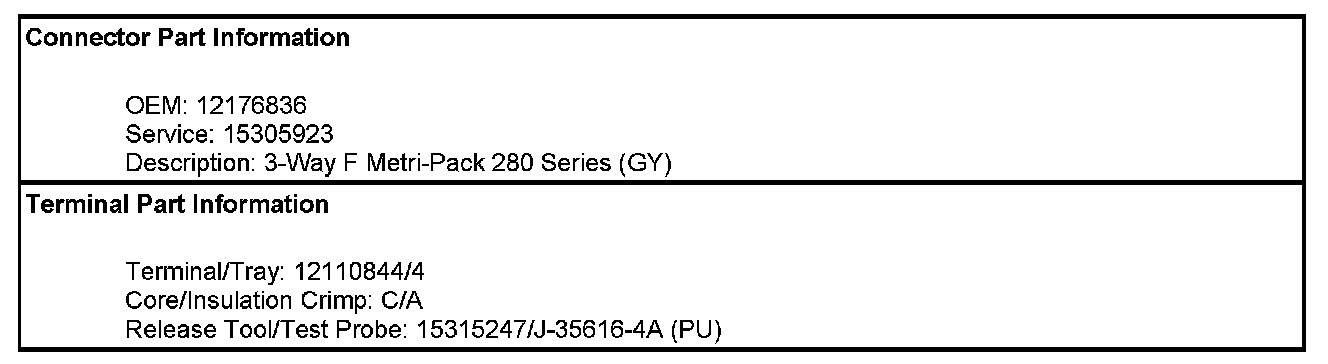

Auxiliary Power Outlet - I/P

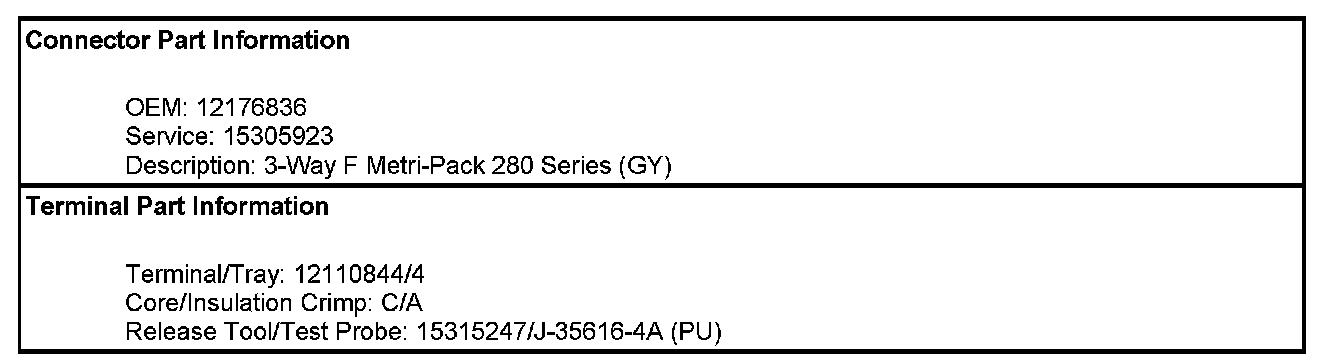

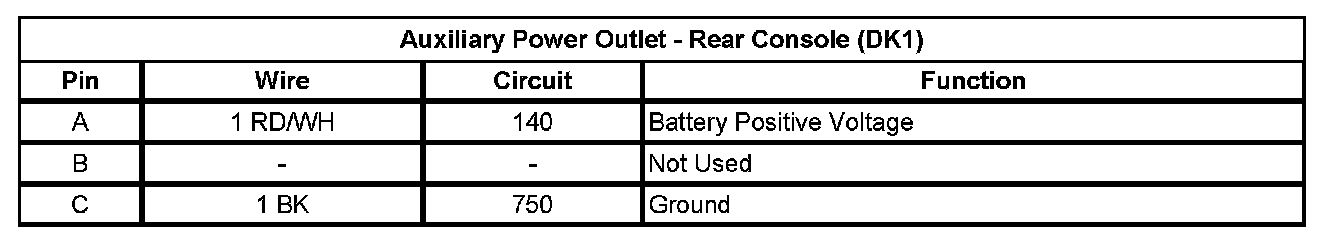

Auxiliary Power Outlet - Rear Console (DK1)

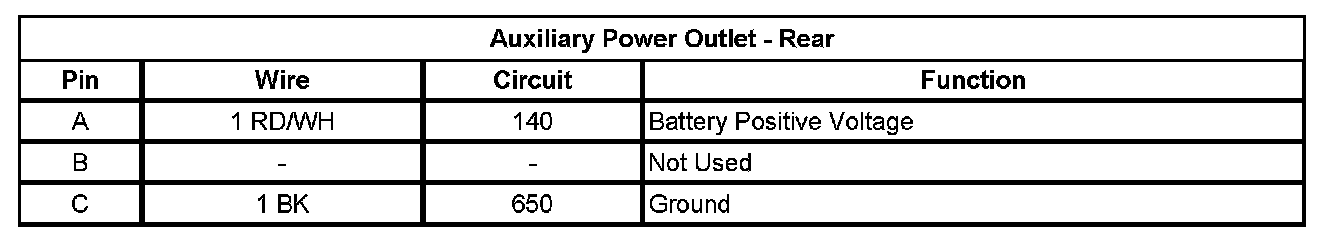

Auxiliary Power Outlet - Rear
