Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

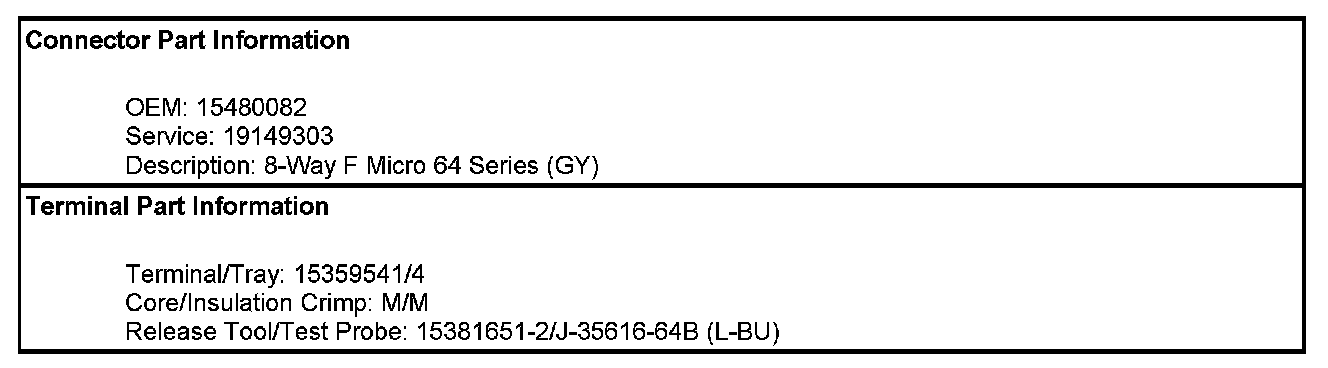

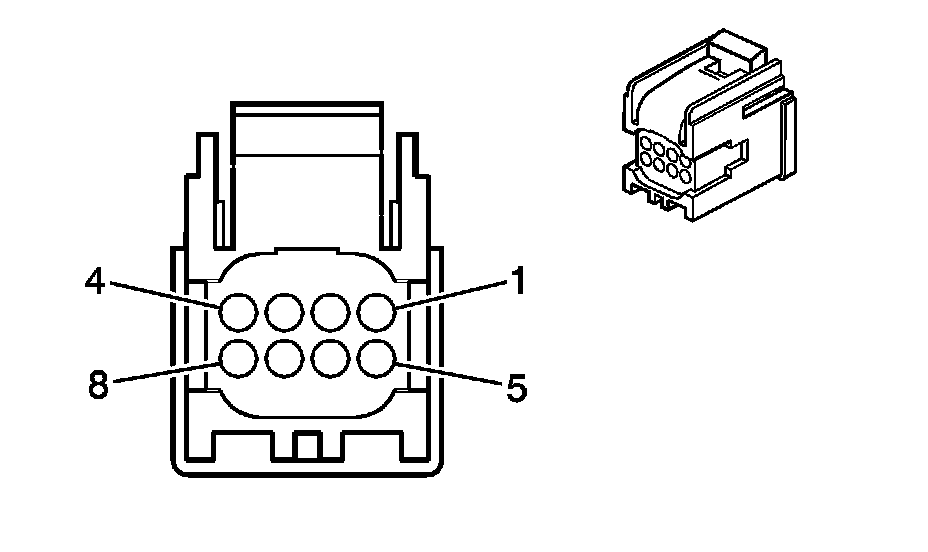

Component Connector End Views

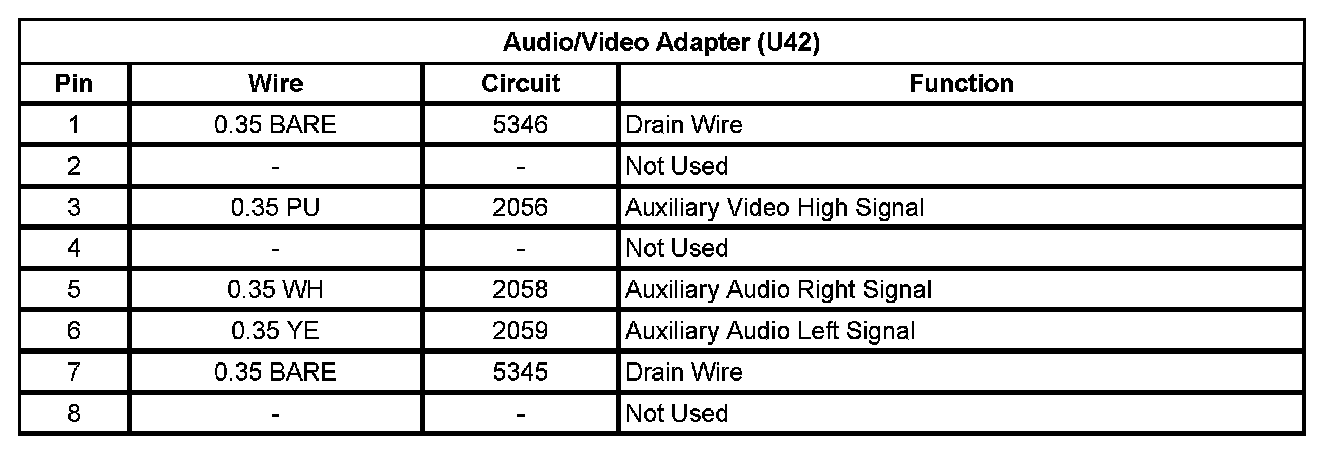

Audio/Video Adapter (U42)
