Transmission Speed Sensor, A/T



Component Connector End Views

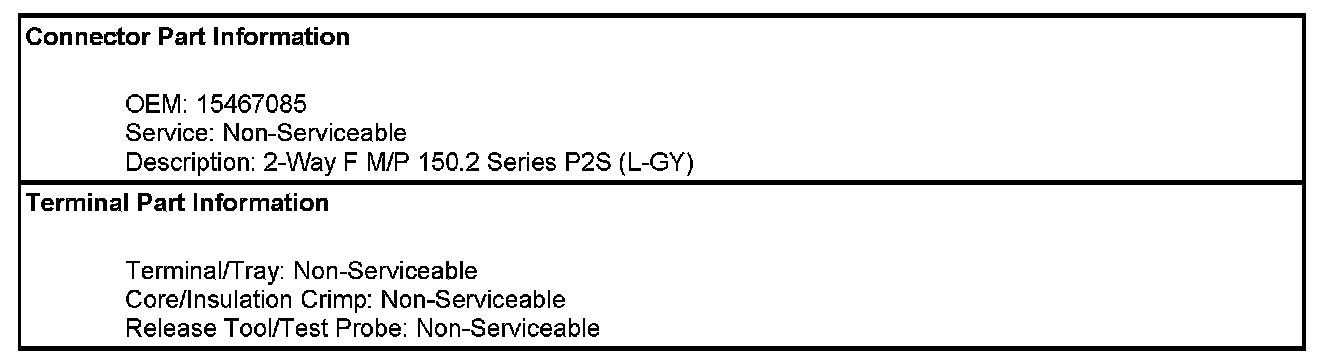

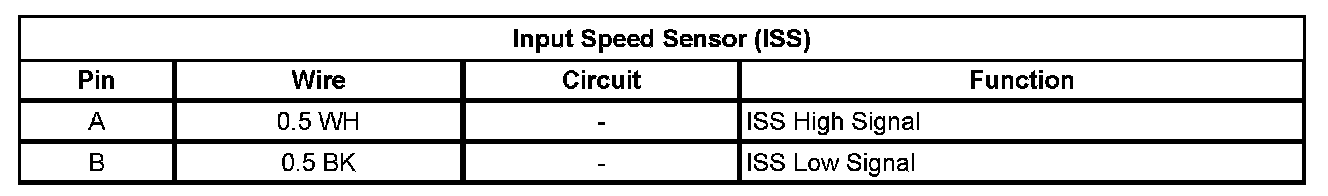

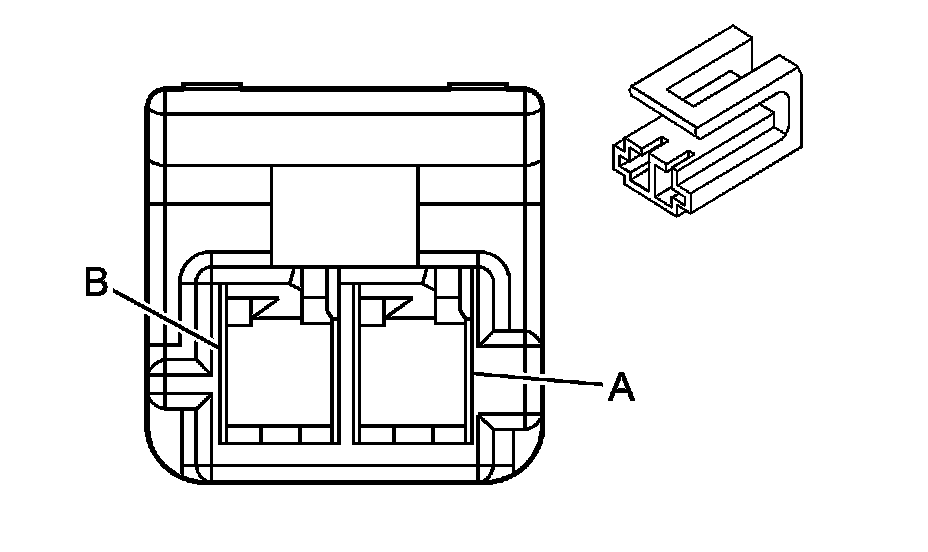

Input Speed Sensor (ISS)

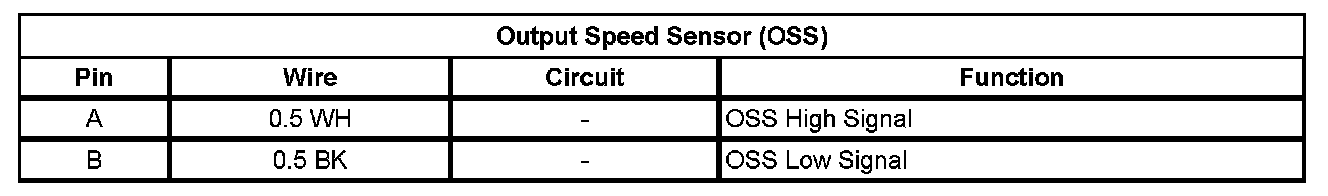

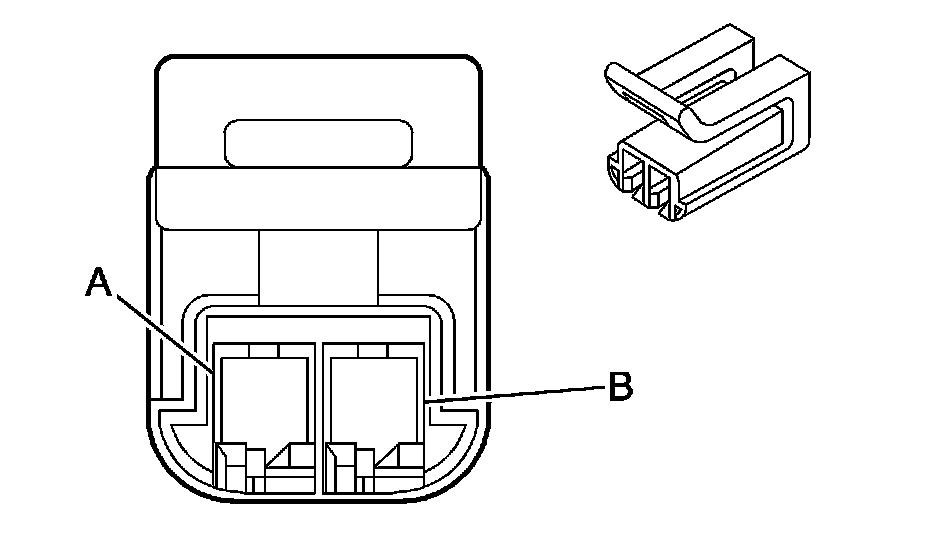

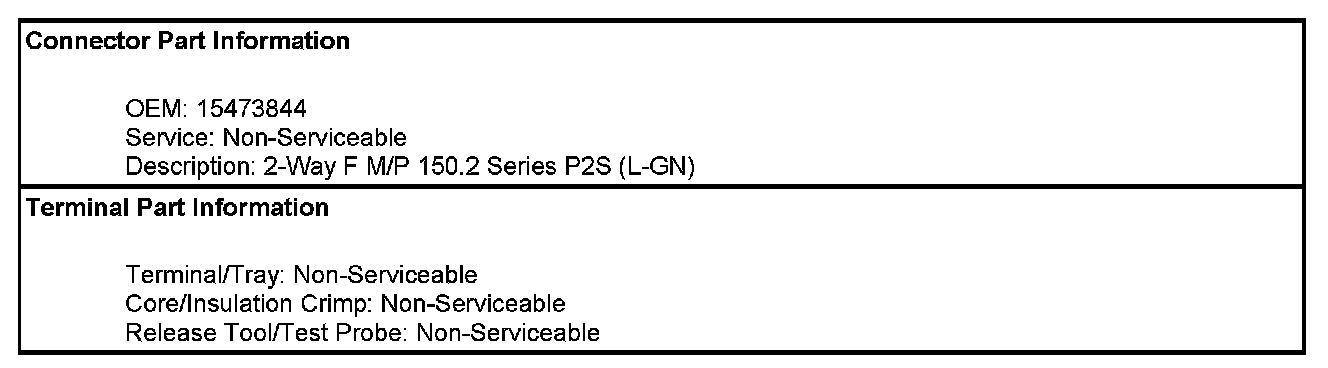

Output Speed Sensor (OSS)
