Transmission Mode Switch, A/T
Component Connector End Views - Continued

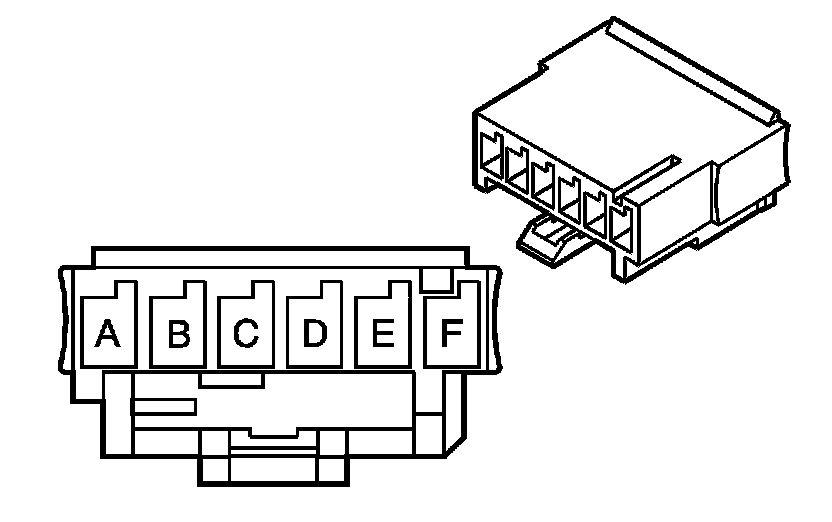

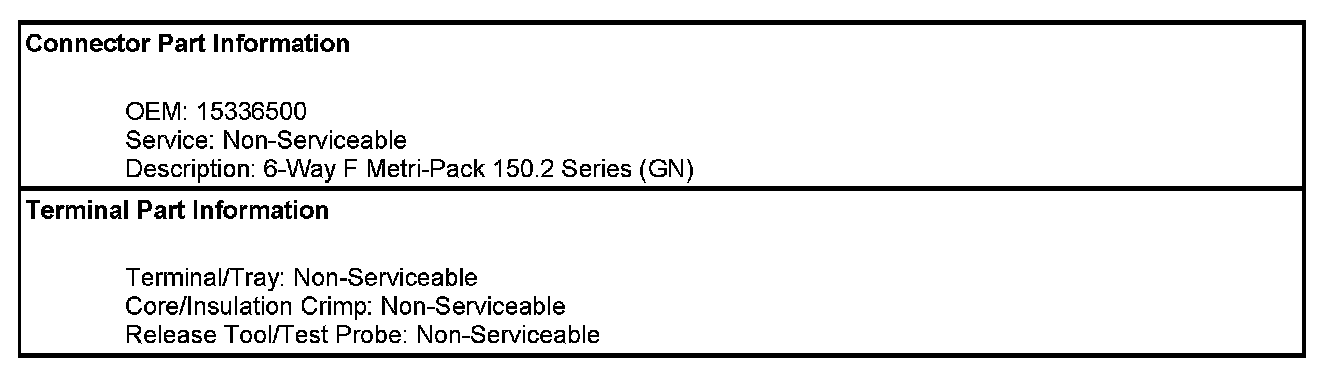

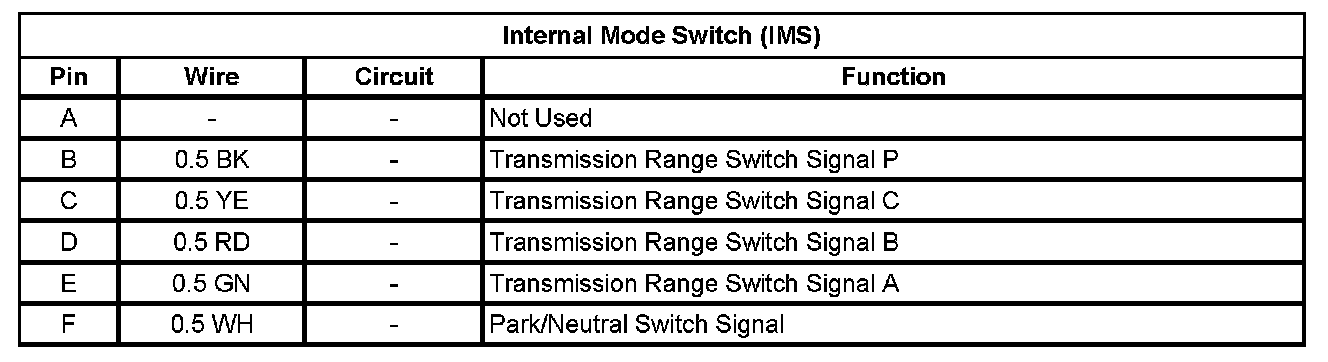

Internal Mode Switch (IMS)
Internal Mode Switch (IMS):

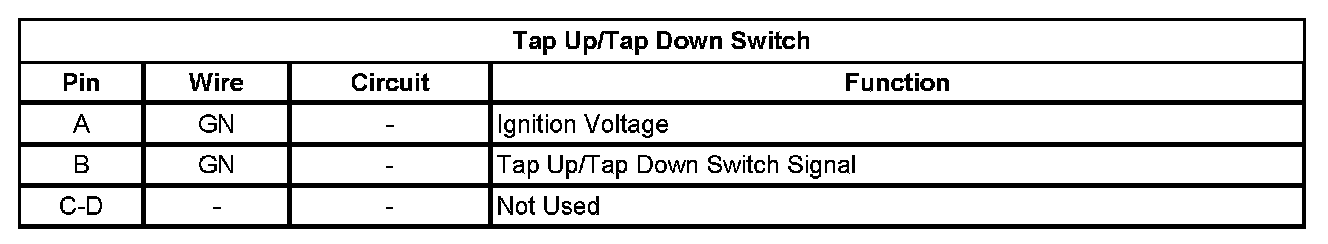

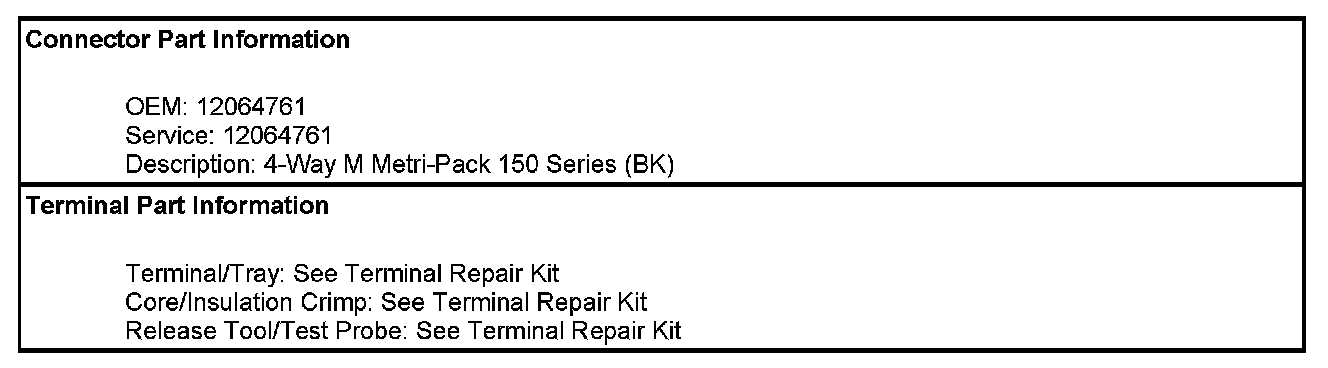

Tap Up/Tap Down Switch
