Home >> Buick >> 2007 >> Terraza V6-3.9L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Underhood Fuse Block

Underhood Fuse Block



Electrical Center Identification Views

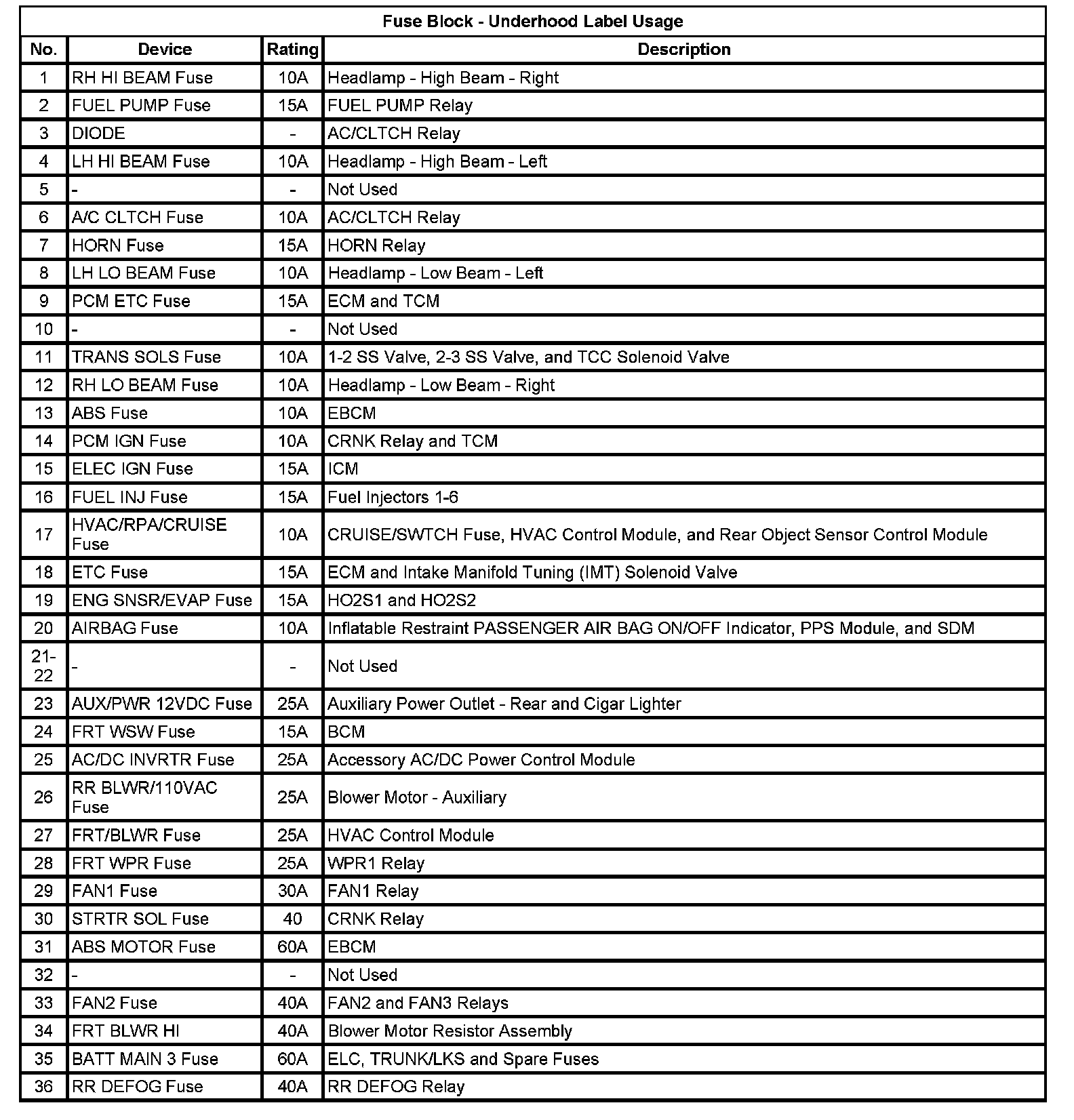

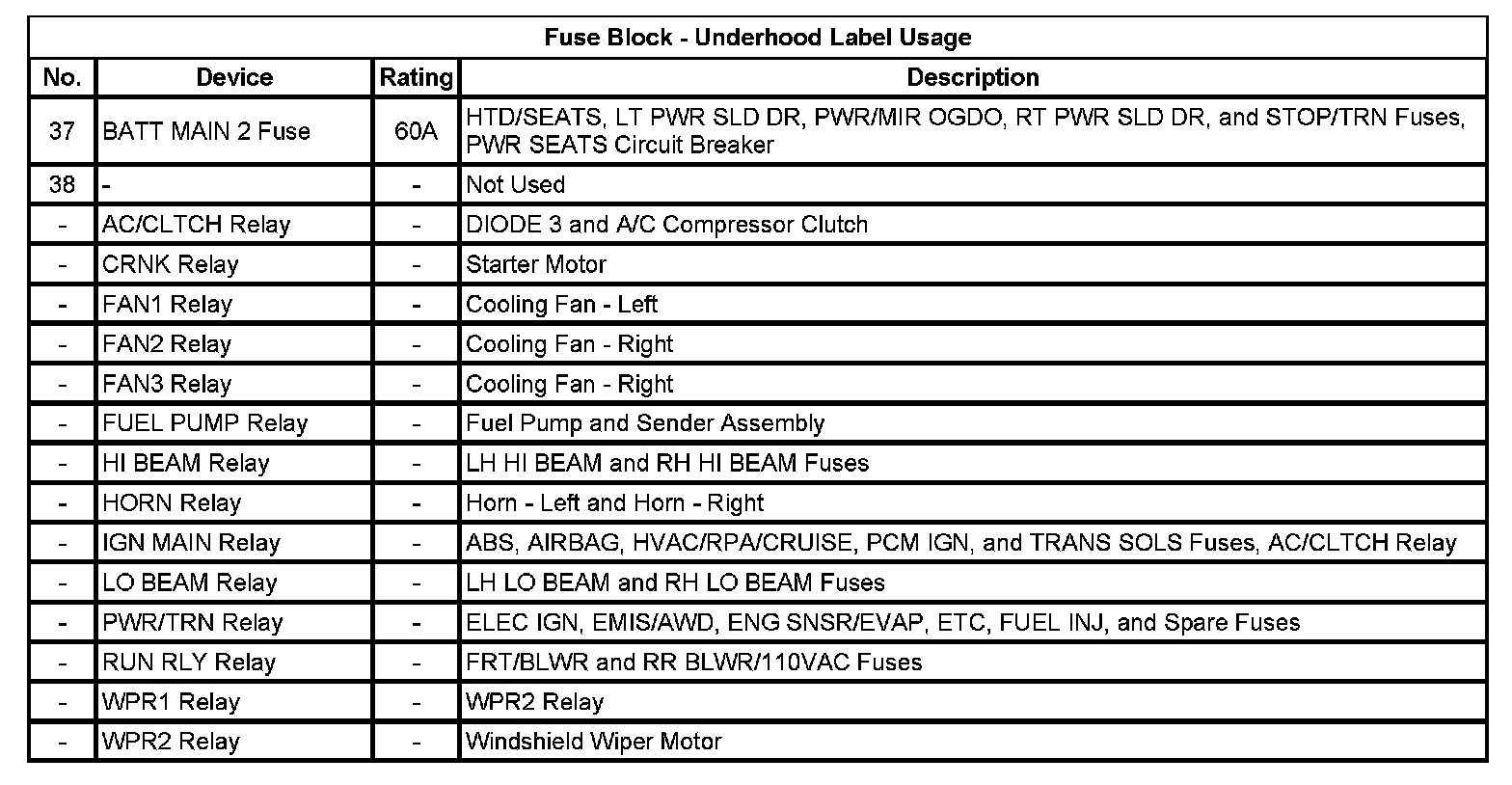

Fuse Block - Underhood Label
