Home >> Buick >> 2007 >> Rendezvous V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Center Console Fuse Block

Center Console Fuse Block



Electrical Center Identification Views

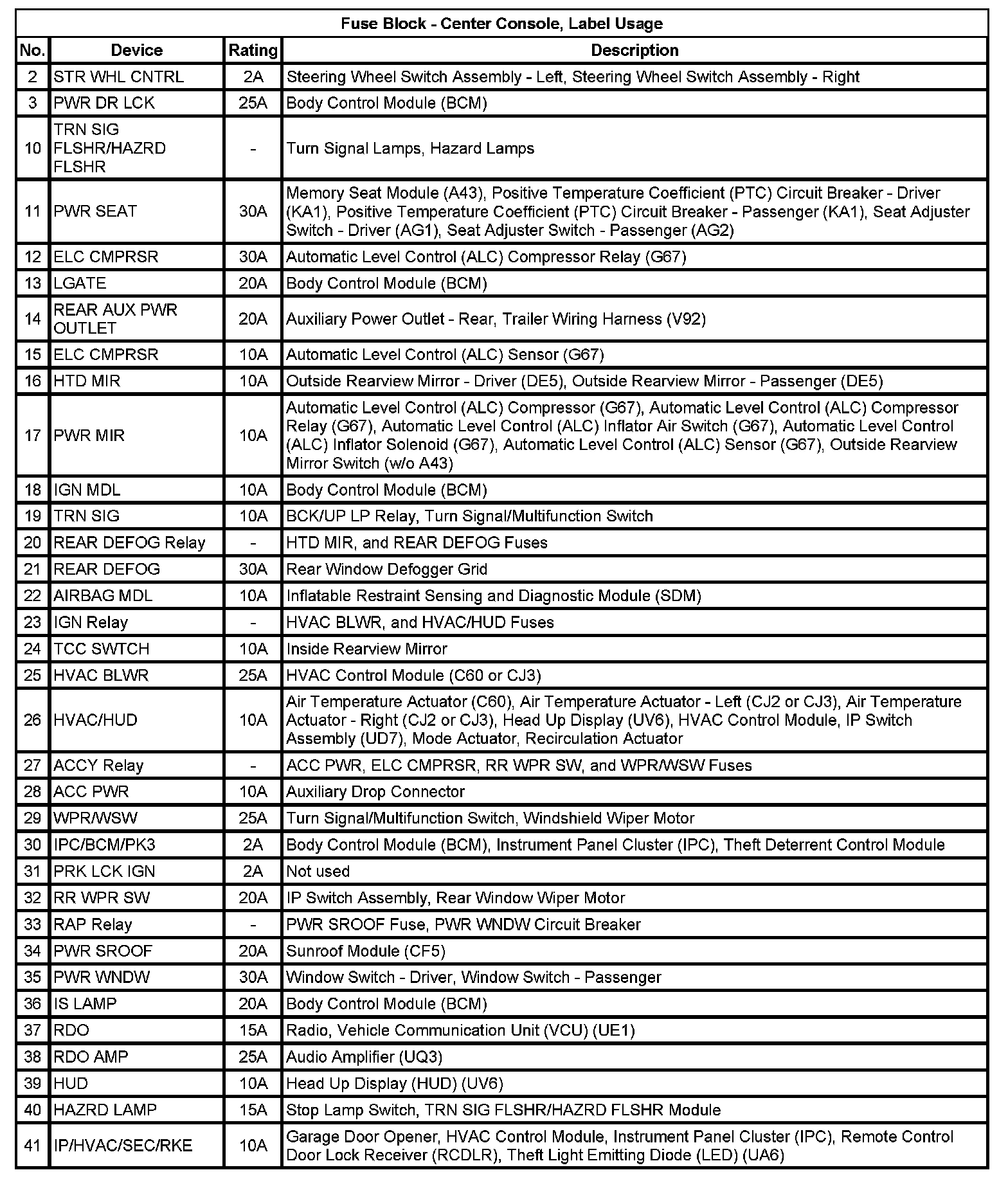

Fuse Block - Center Console, Label
