4T80-E - Automatic Transaxle

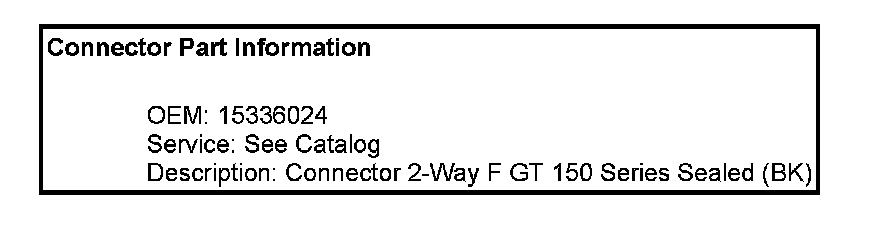

Automatic Transmission Related Connector End Views

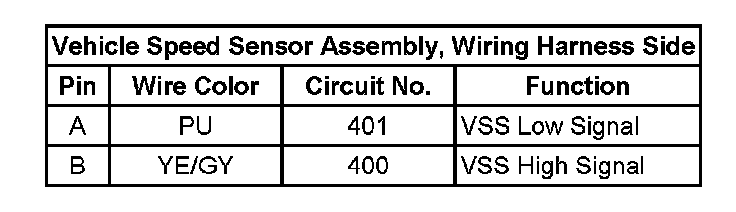

Vehicle Speed Sensor Assembly, Wiring Harness Side:
