Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Panel Views

Panel Views

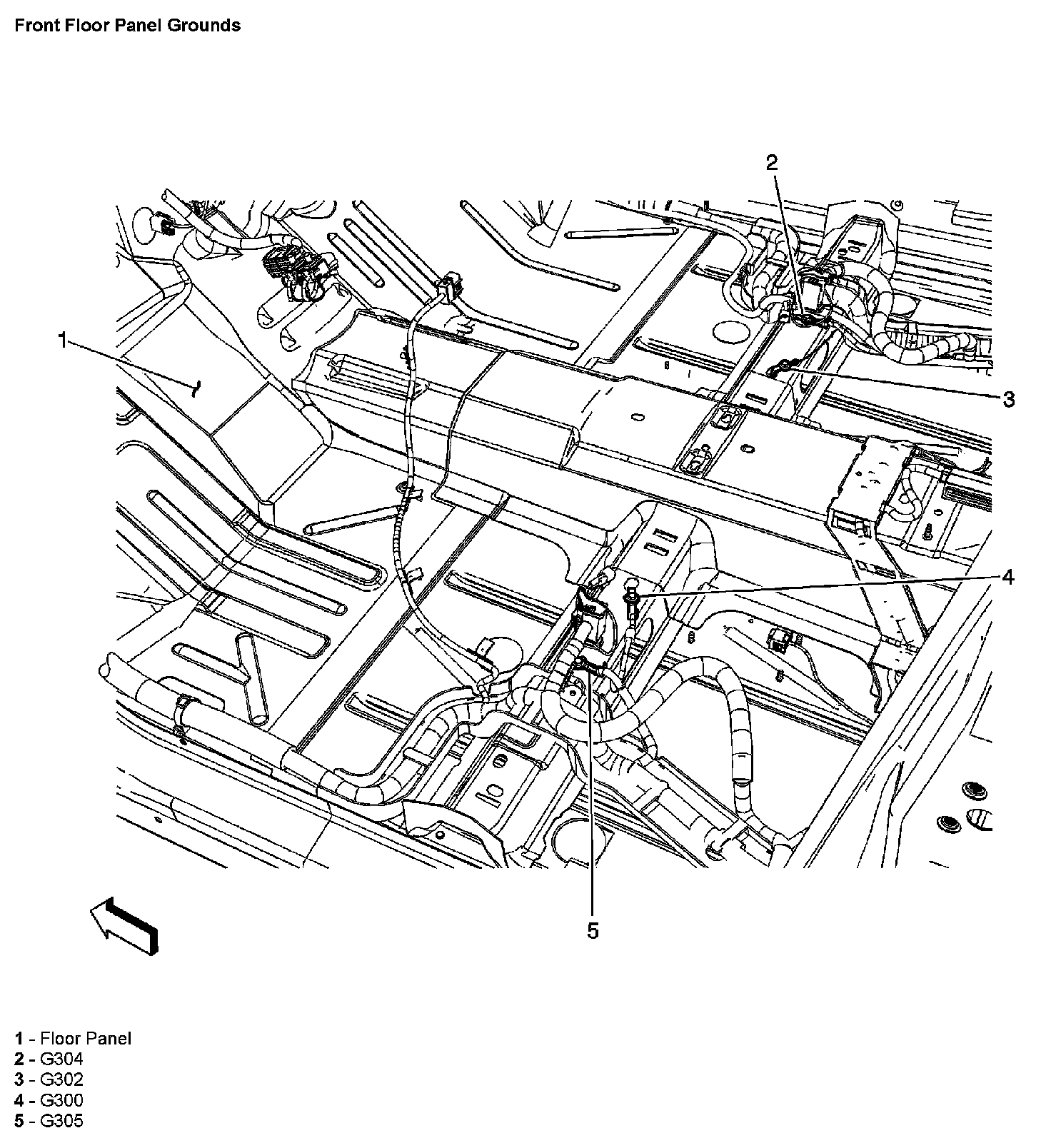

Front Floor Panel Grounds:
