Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Engine Harness Routing Views

Engine Harness Routing Views

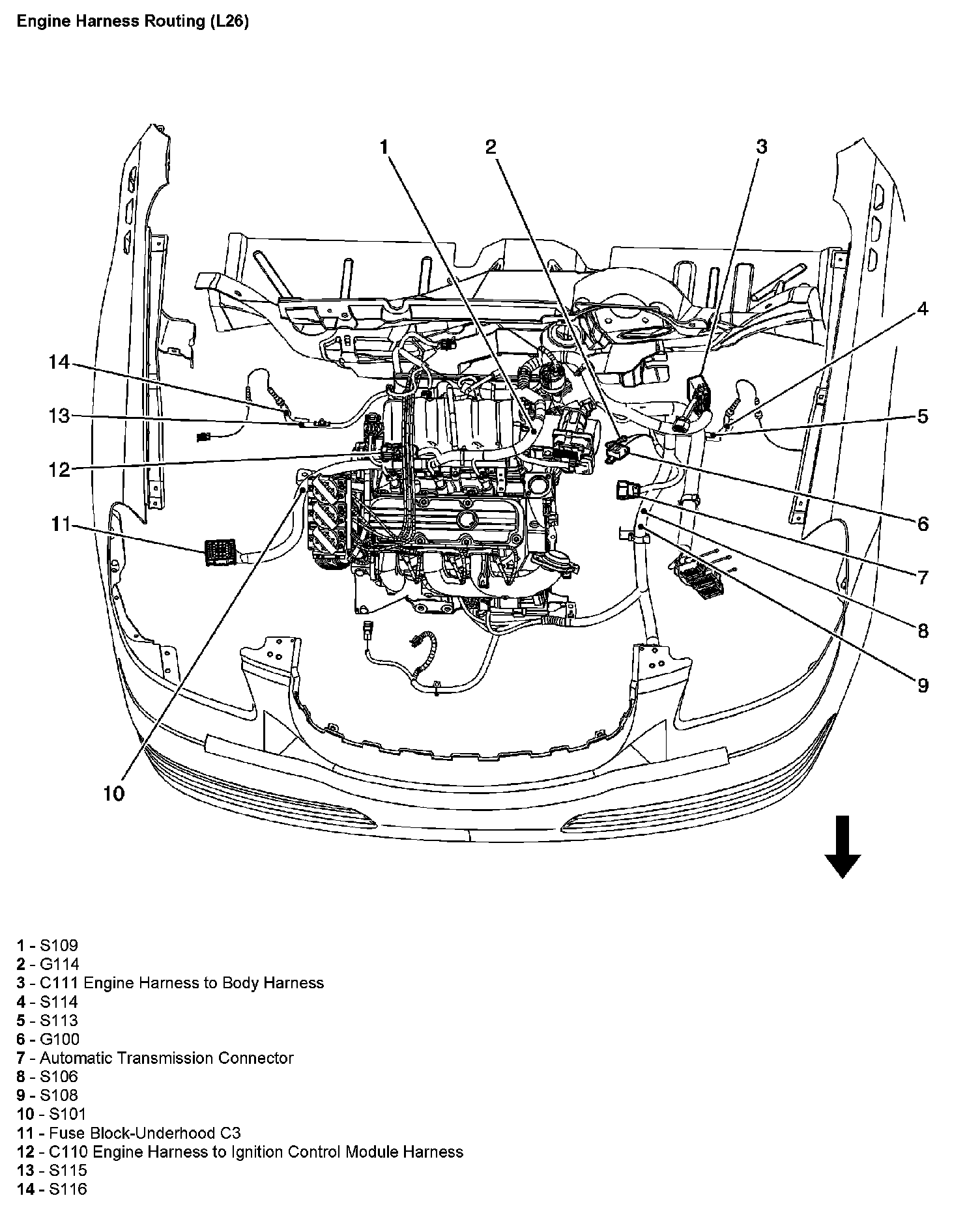

Engine Harness Routing (With RPO Code L26):
