Buick
>>
2007
>>
Lucerne V6-3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Underhood Fuse Block
Underhood Fuse Block
Electrical Center Identification Views:

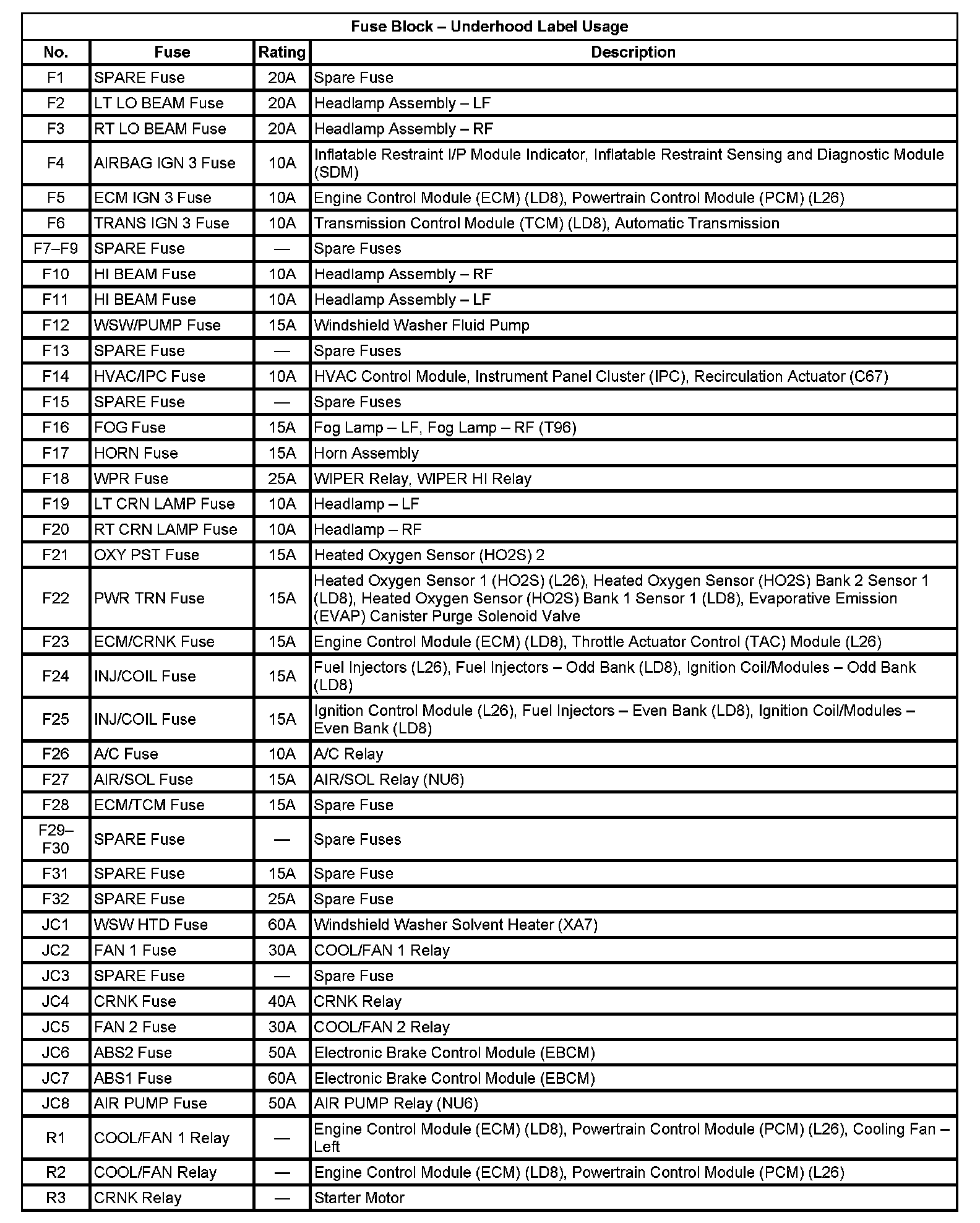

Fuse Block - Underhood Label Usage (Part 1):

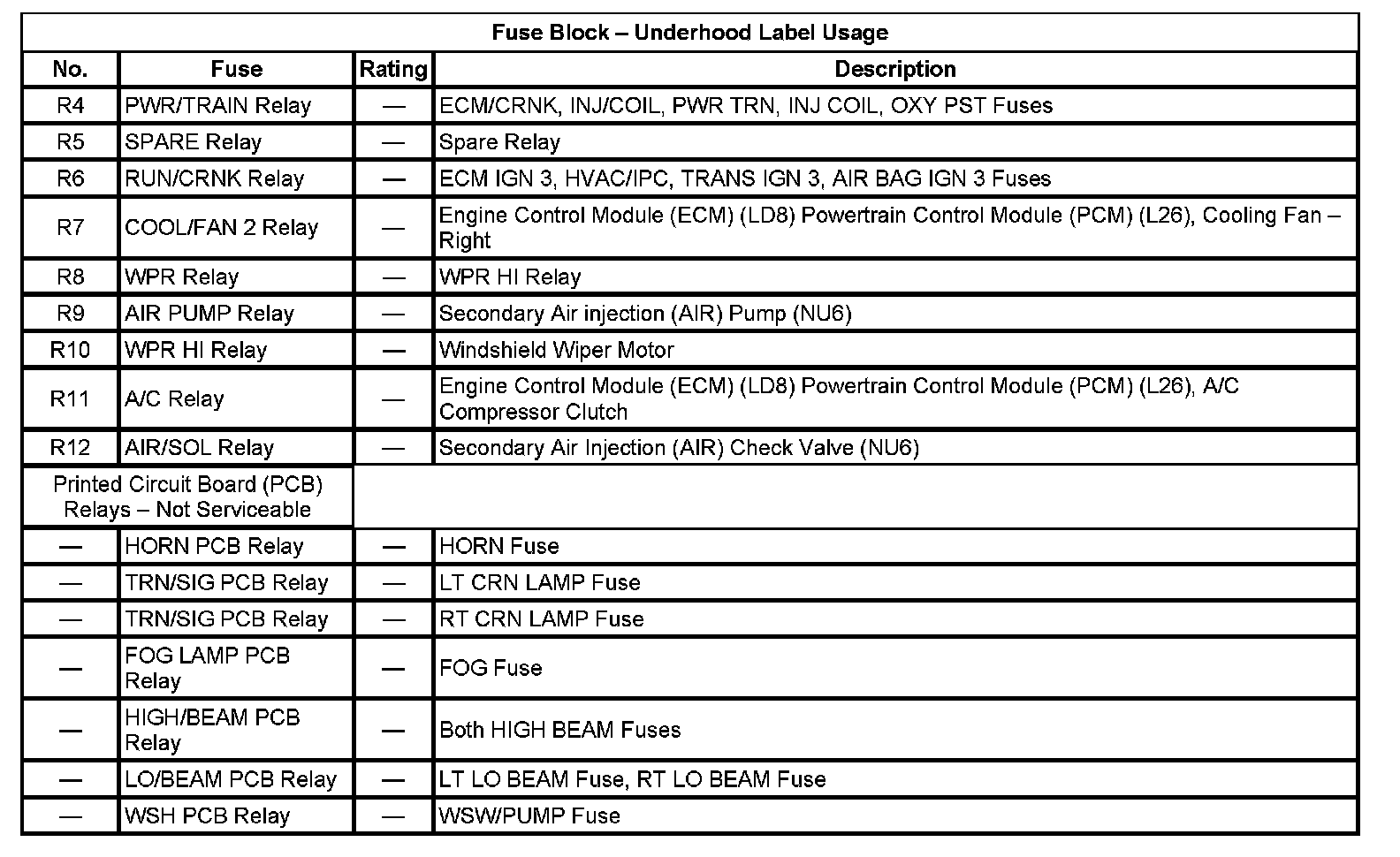

Fuse Block - Underhood Label Usage (Part 2):
