Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Rear Fuse Block

Rear Fuse Block

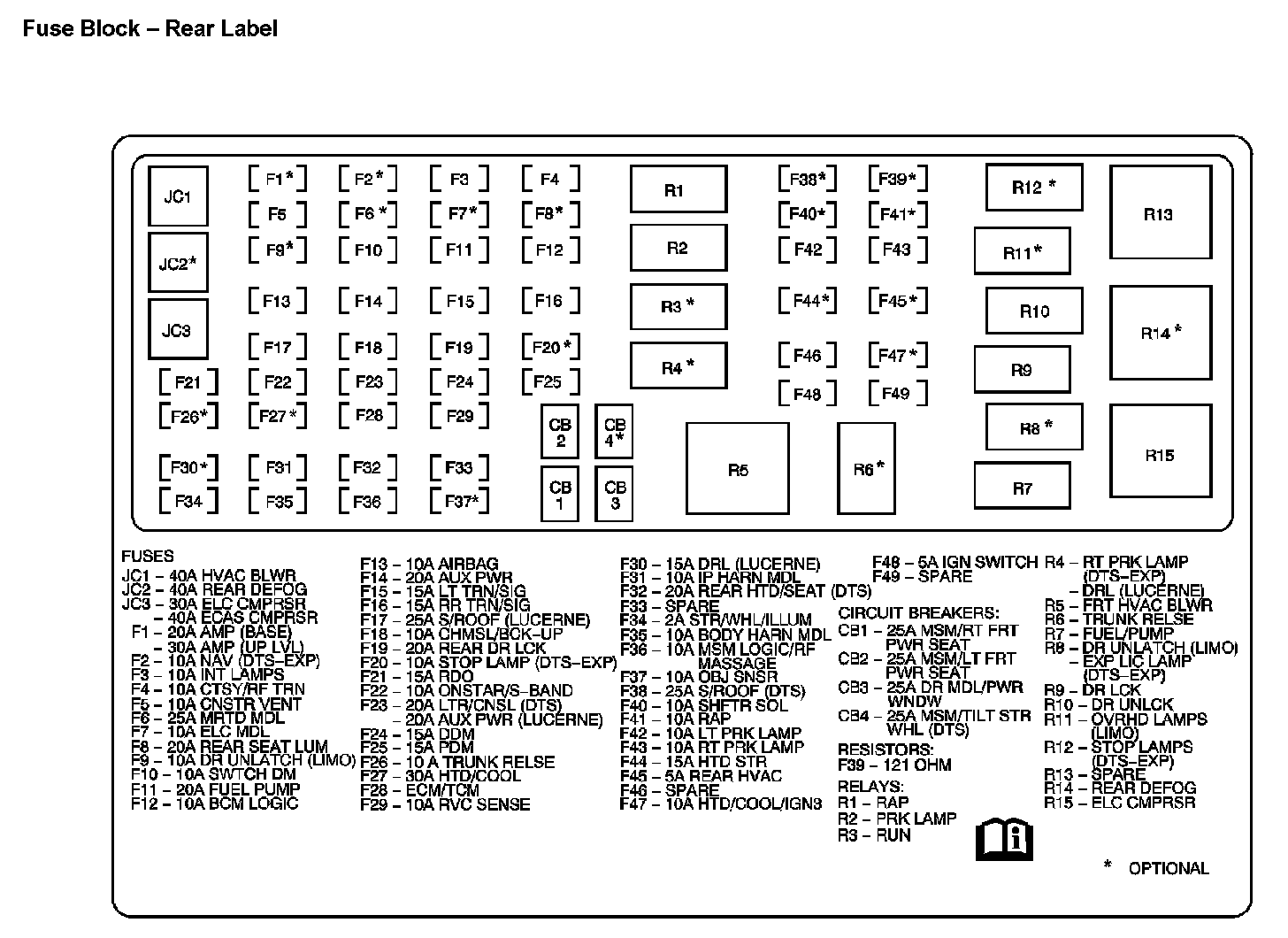

Fuse Block - Rear Label:

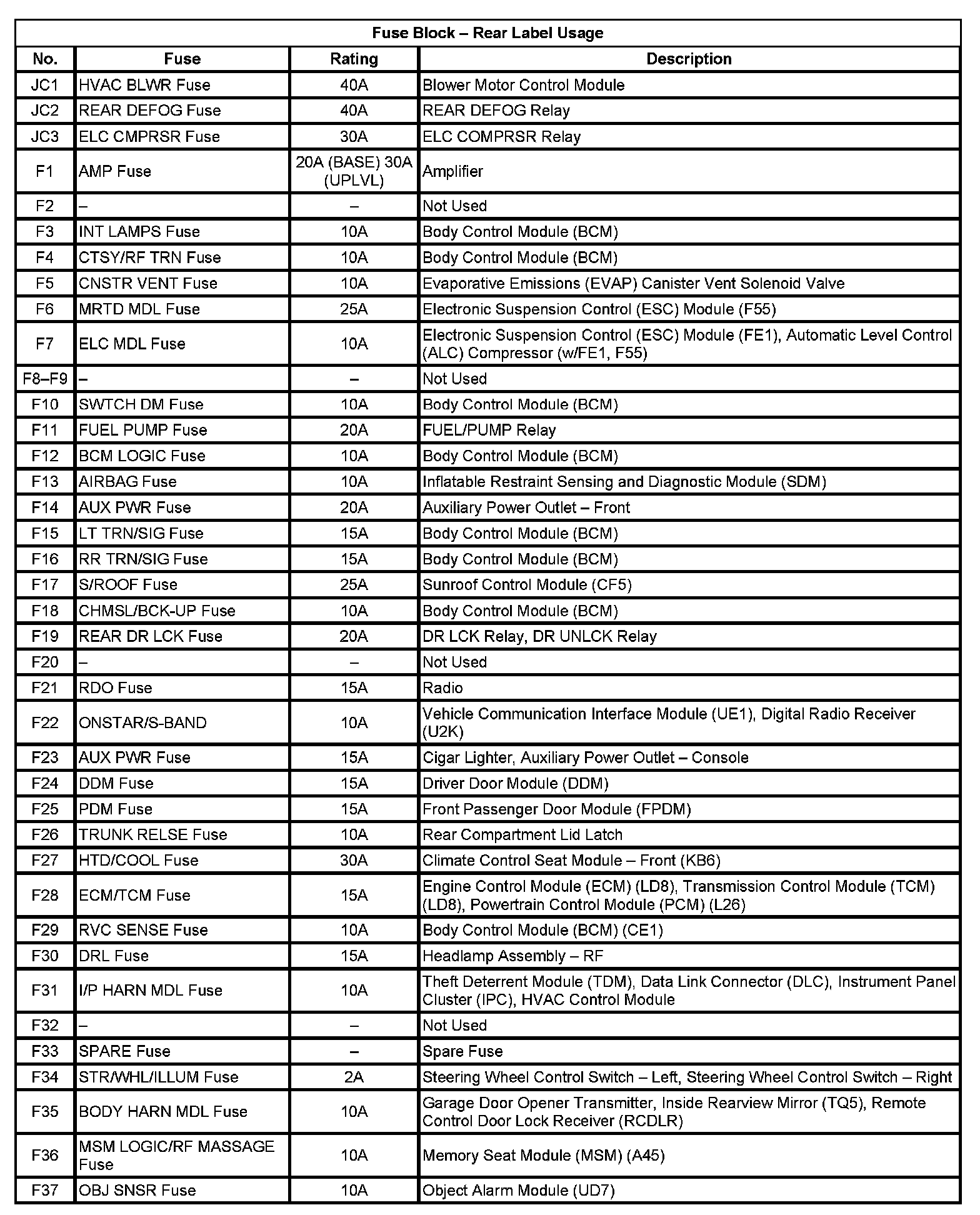

Fuse Block - Rear Label Usage:

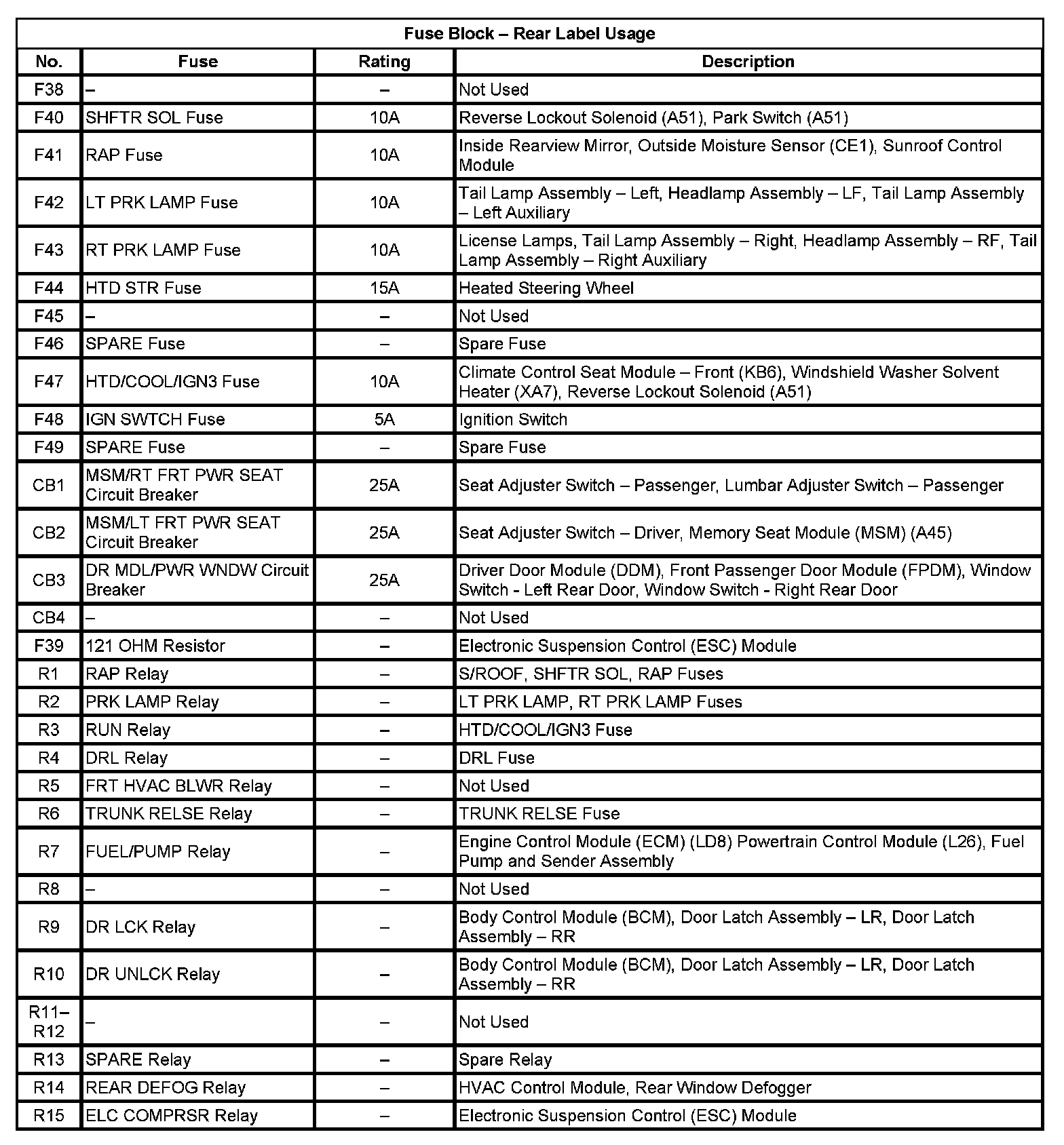

Fuse Block - Rear Label Usage:
