Solar Sensor: Diagrams

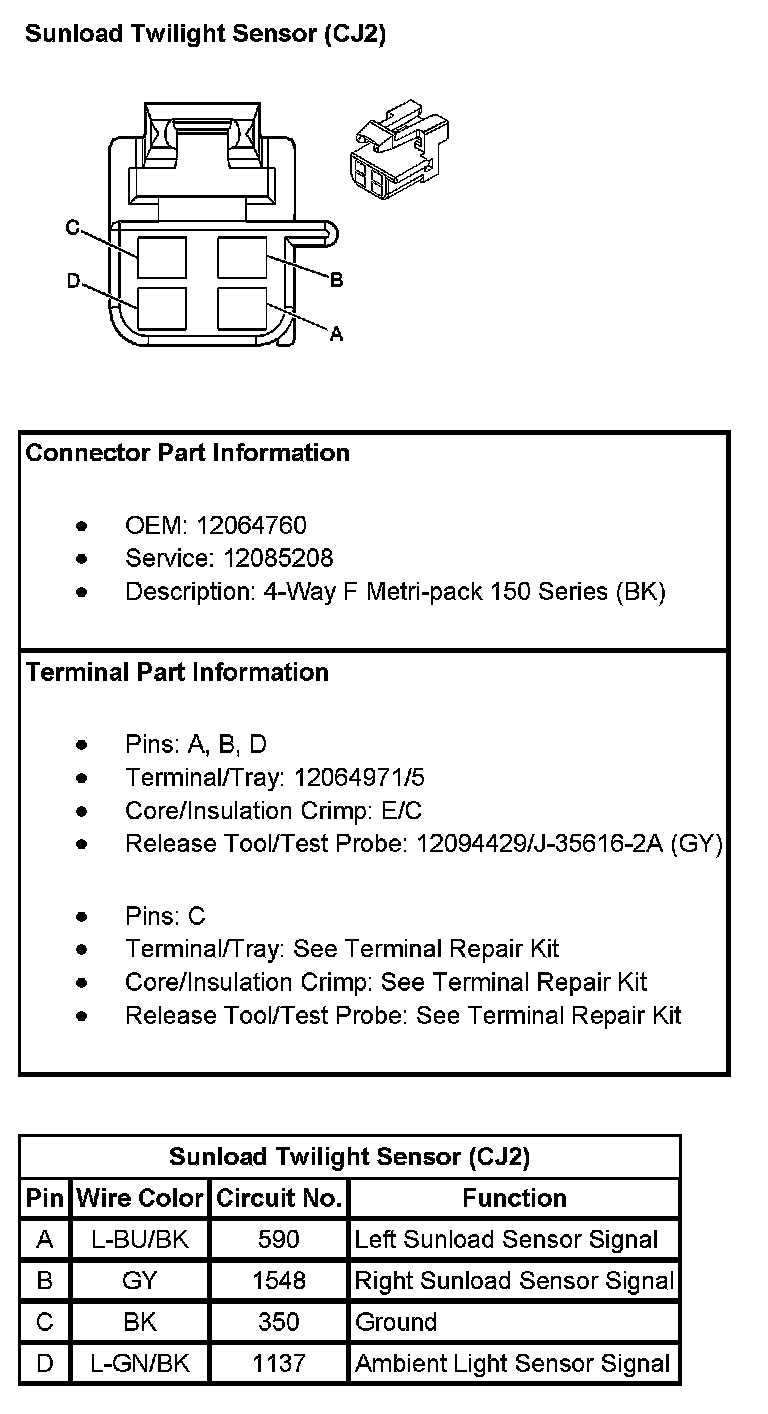

Sunload Twilight Sensor (With RPO Code CJ2):



Sunload Twilight Sensor (With RPO Code C67):
