Mirror Component Views

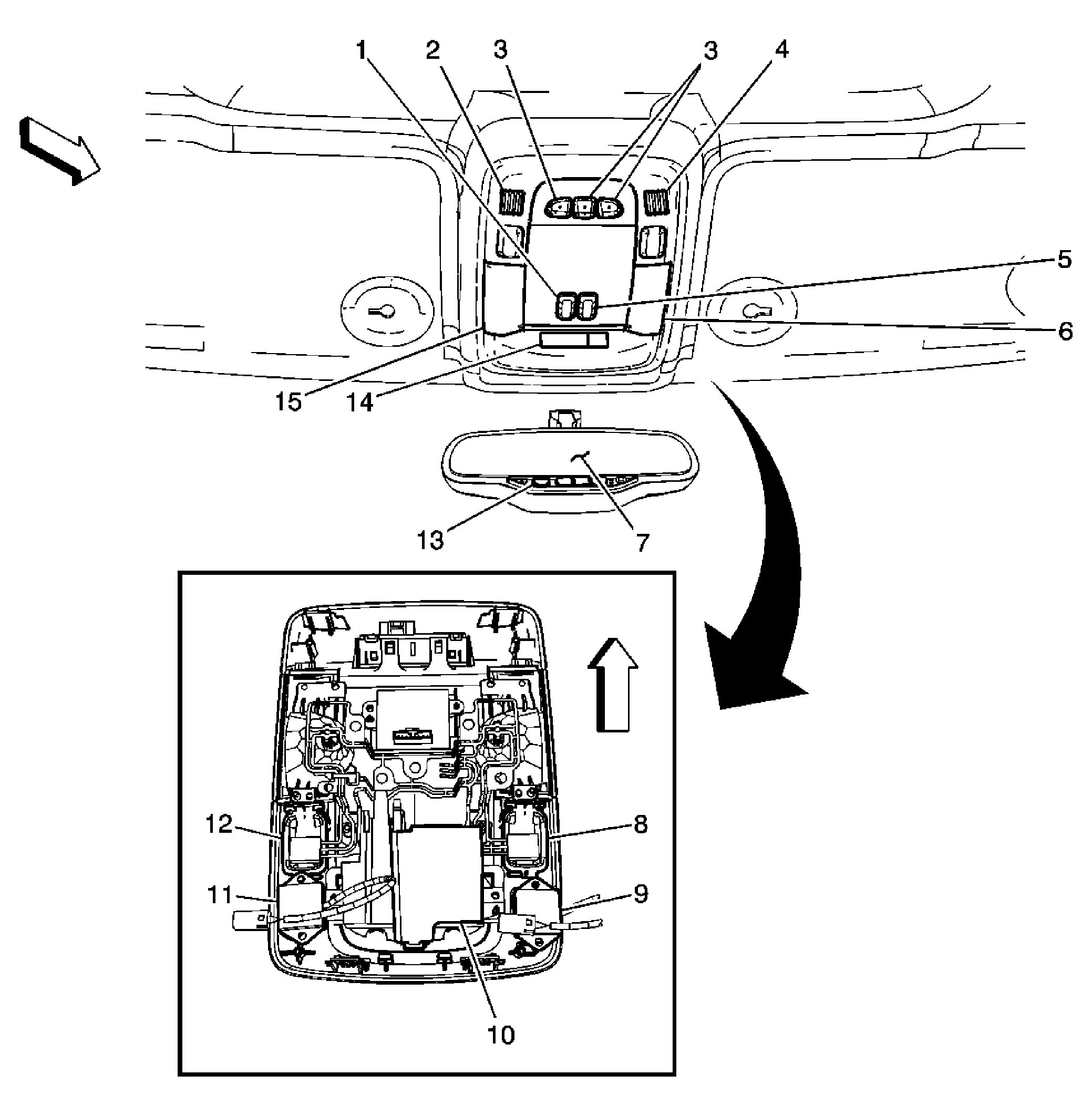

| Callout | Component Name |
|---|---|
| 1 | Sunroof Switch-Open/Close (CF5) |
| 2 | Cellular Microphone (UE1, U3U) |
| 3 | Garage Door Opener Buttons (UG1) |
| 4 | Cellular Microphone (UE1, U3U) |
| 5 | Sunroof Switch-Vent (CF5) |
| 6 | Courtesy Lamp-Overhead Console-Right |
| 7 | Inside Rearview Mirror |
| 8 | Courtesy Lamp Switch-Right |
| 9 | Cellular Microphone (UE1, U3U) |
| 10 | Garage Door Opener Transmitter (UG1) |
| 11 | Cellular Microphone (UE1, U3U) |
| 12 | Courtesy Lamp Switch-Left |
| 13 | Onstar Button Assembly |
| 14 | Inflatable Restraint I/P Module Indicator |
| 15 | Courtesy Lamp Overhead Console-Left |

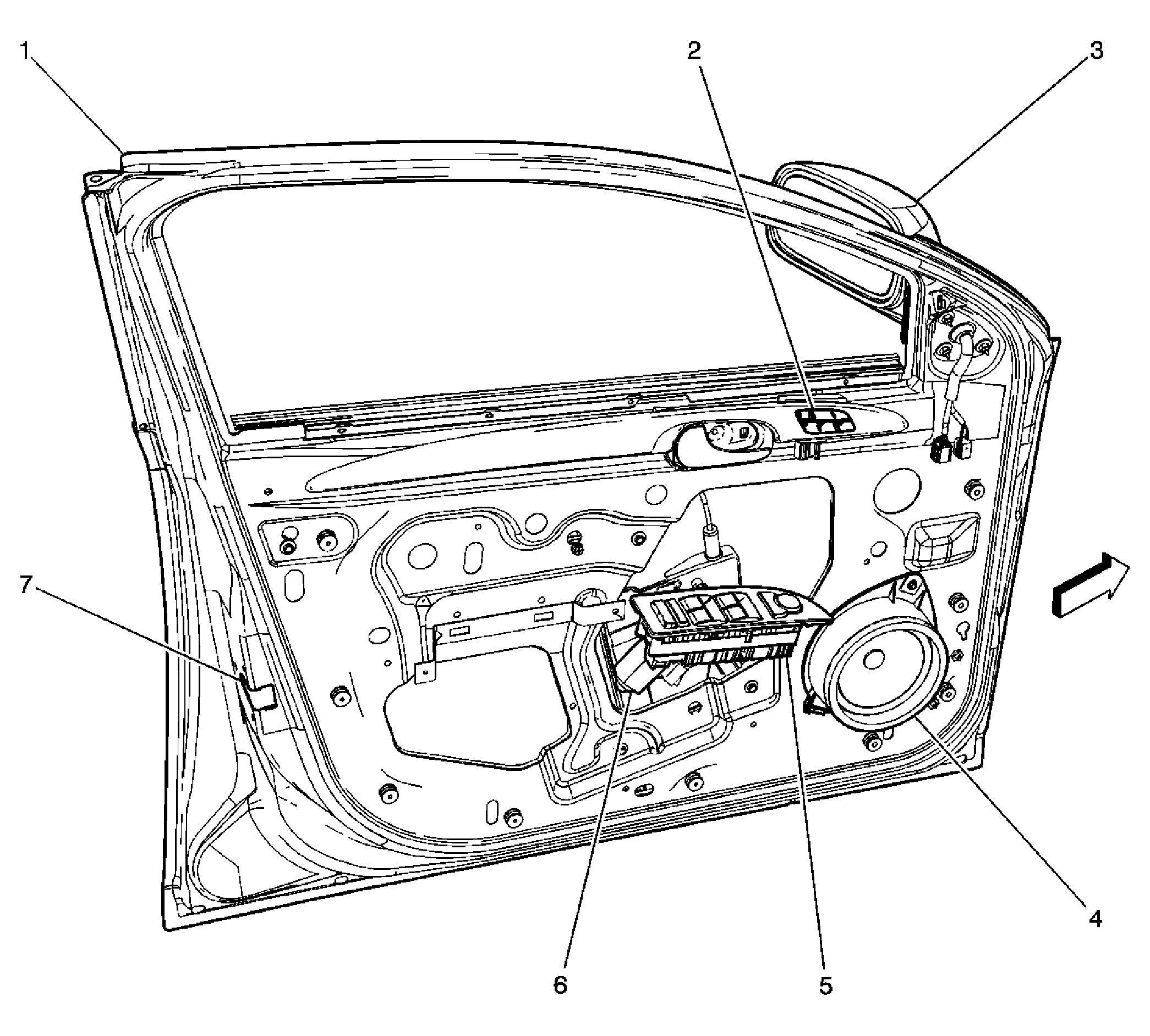

| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Heated and Cooled Seat Switch - Driver (KA1, KB6, A45) |
| 3 | Outside Rearview Mirror - Driver |
| 4 | Speaker - LF Door |
| 5 | Driver Door Module (DDM) |
| 6 | Window Motor - Driver |
| 7 | Door Latch Assembly - Driver |

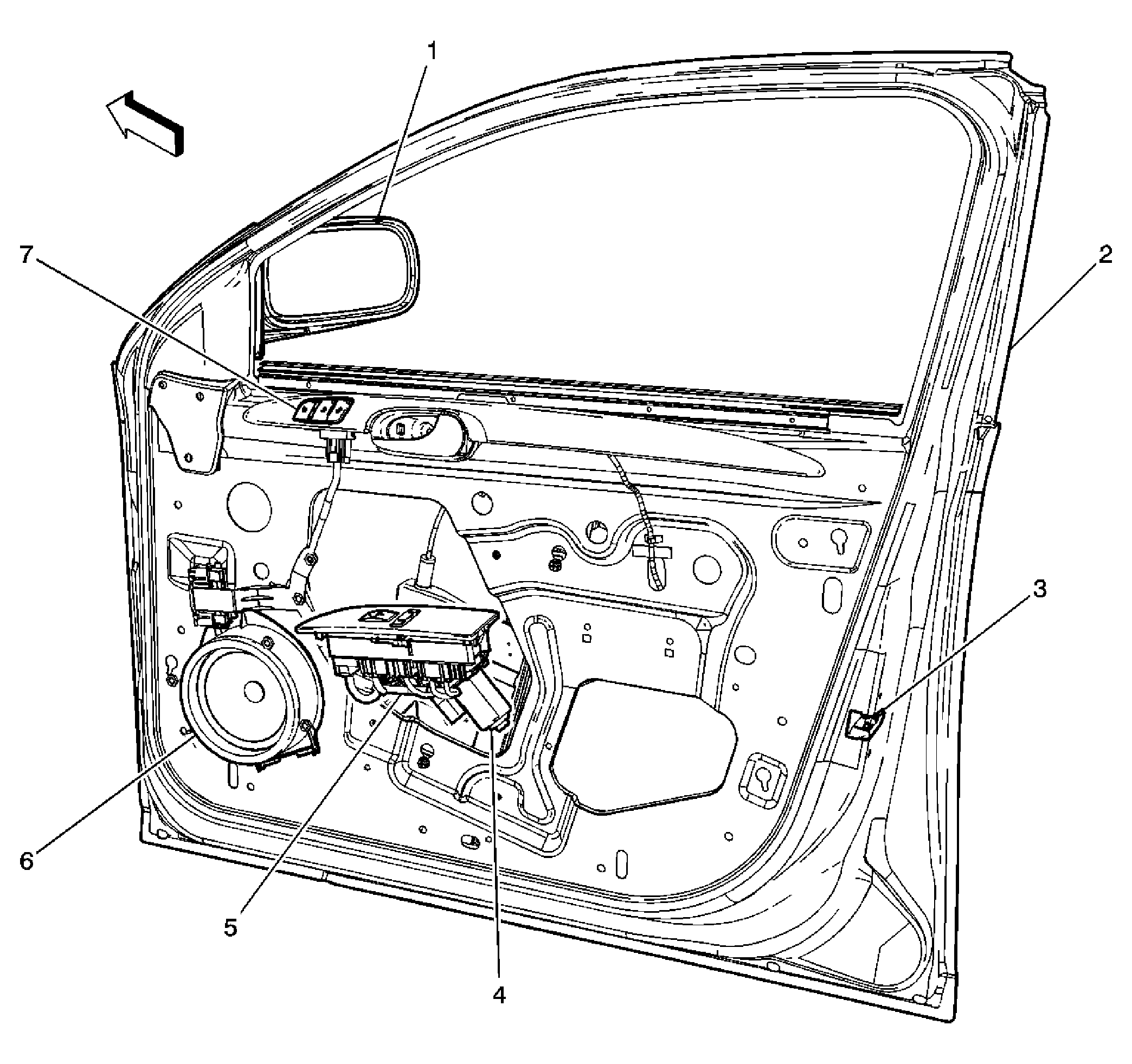

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Door Frame |
| 3 | Door Latch Assembly - Front Passenger |
| 4 | Window Motor - Driver |
| 5 | Front Passenger Door Module (FPDM) |
| 6 | Speaker - RF Door |
| 7 | Heated and Cooled Seat Switch - Front Passenger (KA1, KB6) |
