Electrical Diagrams

Automatic Transmission Controls Schematics

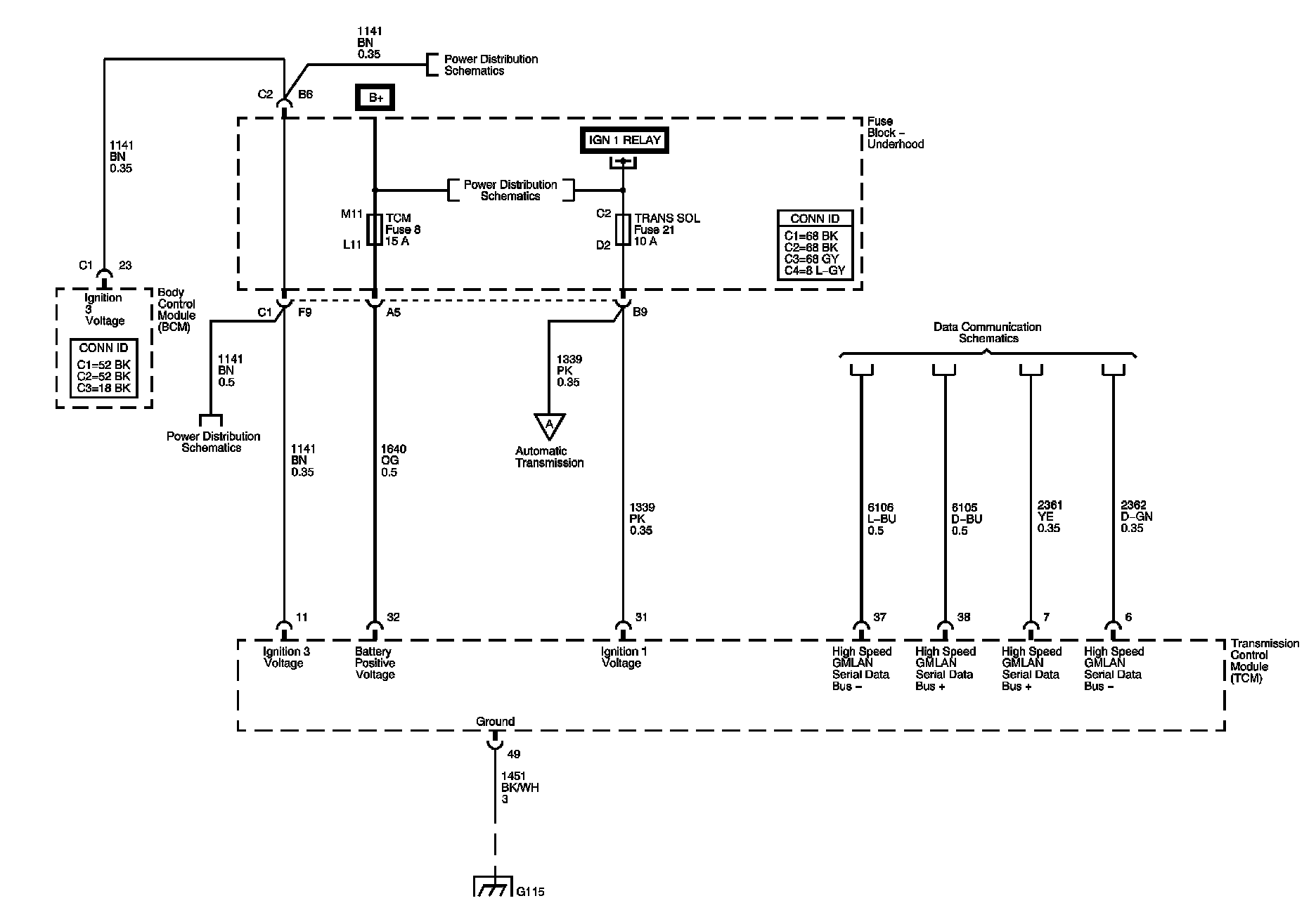

Automatic Transmission Controls Schematics 1:

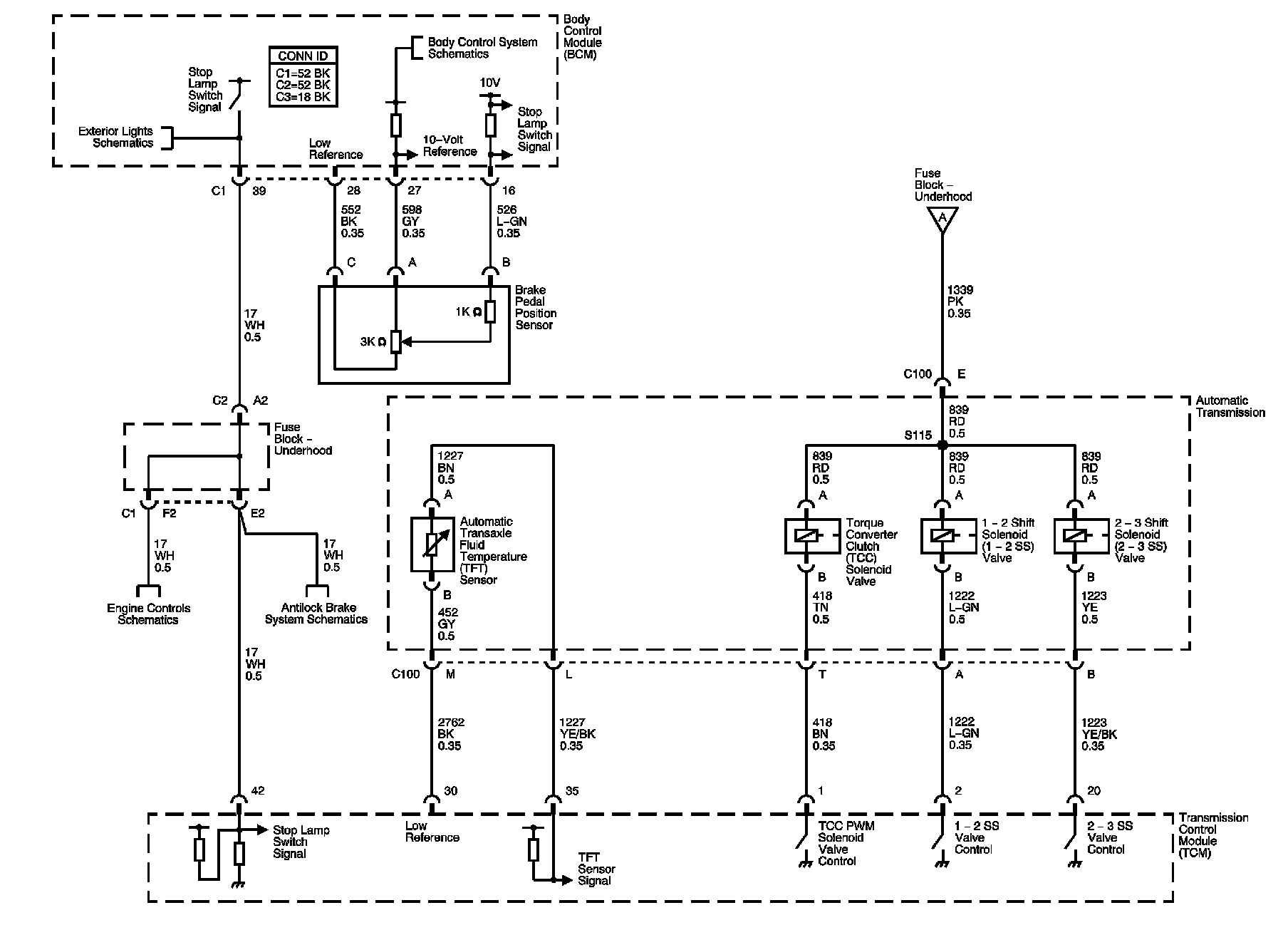

Automatic Transmission Controls Schematics 2:

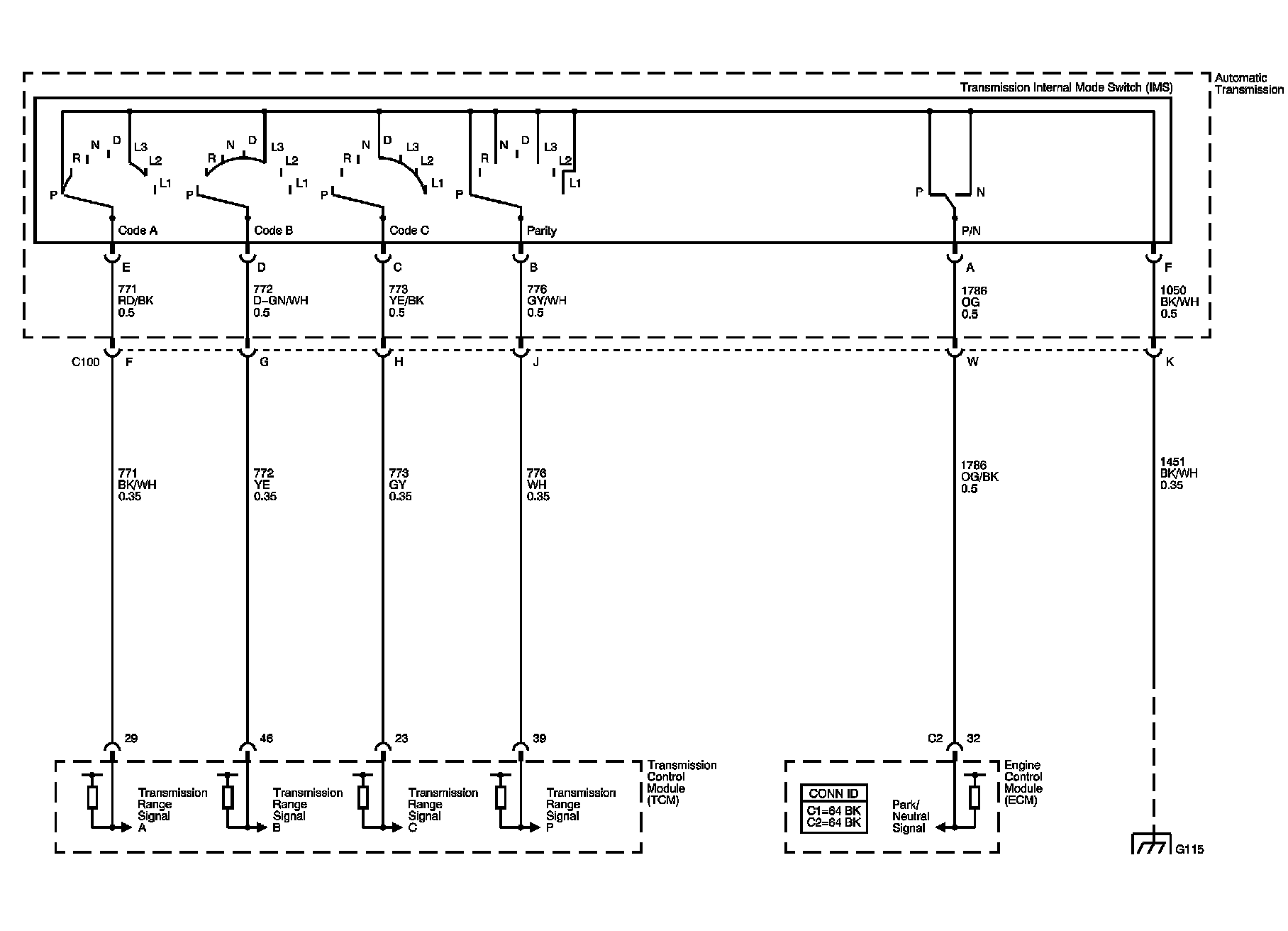

Automatic Transmission Controls Schematics 3:

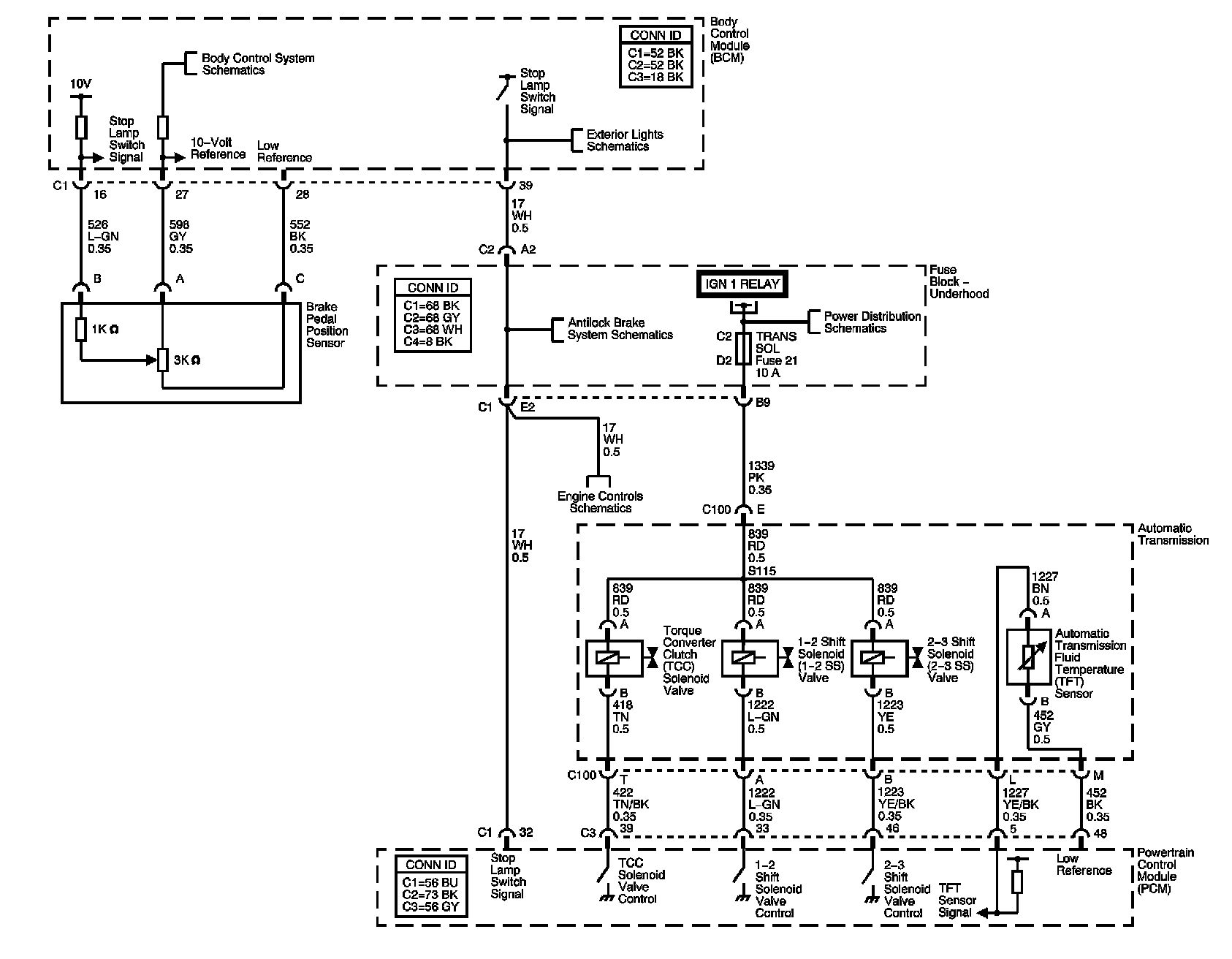

Automatic Transmission Controls Schematics 4:

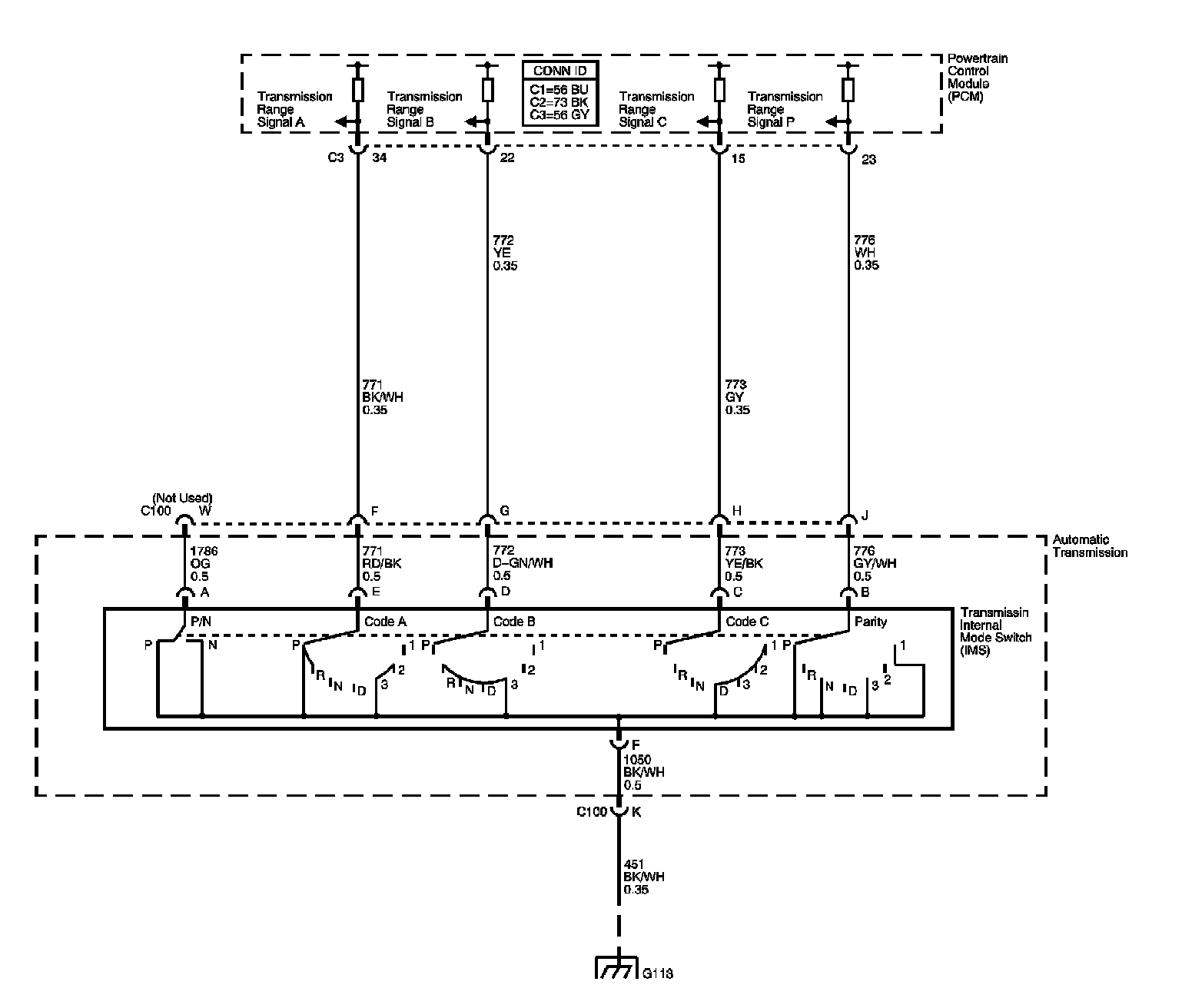

Automatic Transmission Controls Schematics 5:

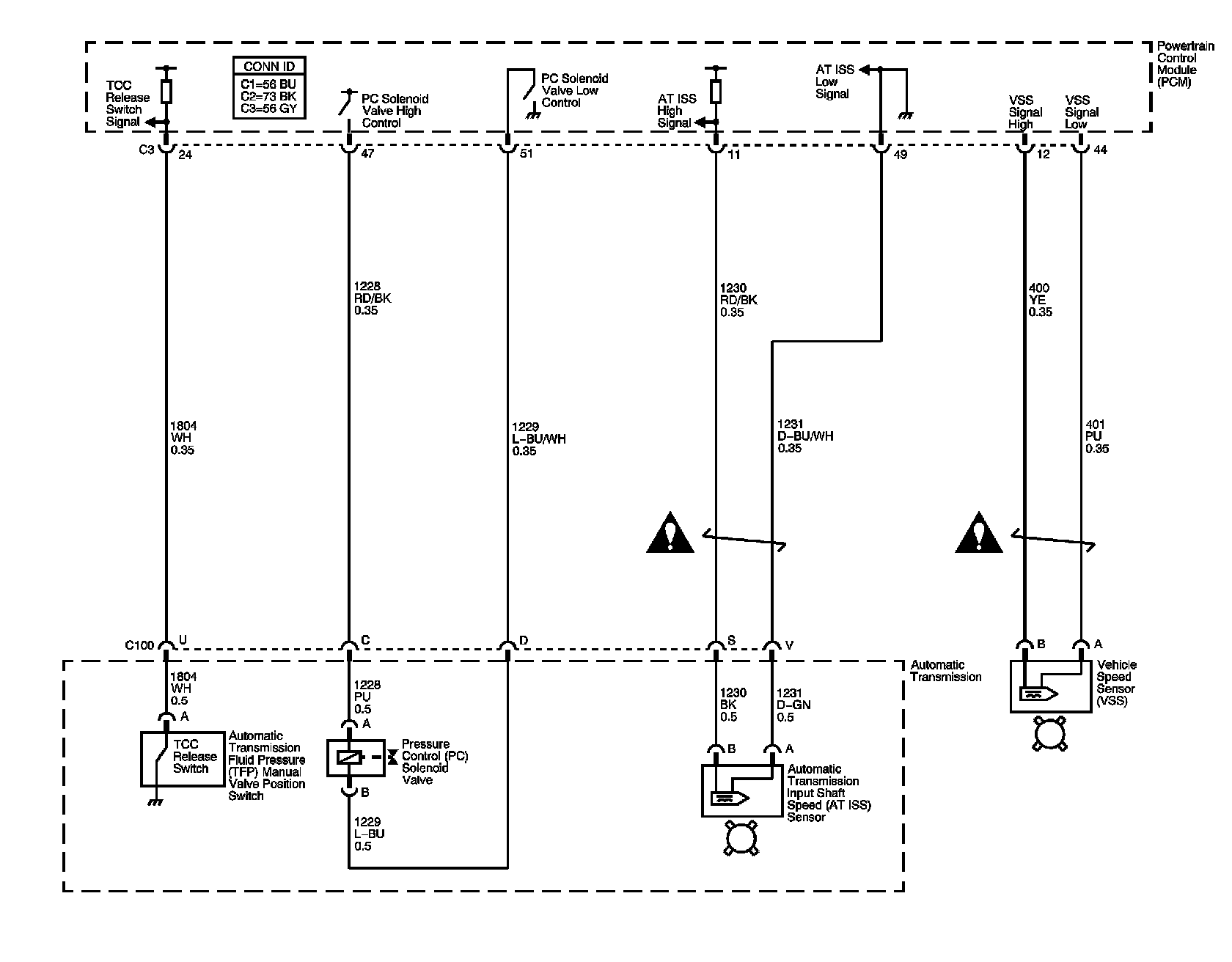

Automatic Transmission Controls Schematics 6:

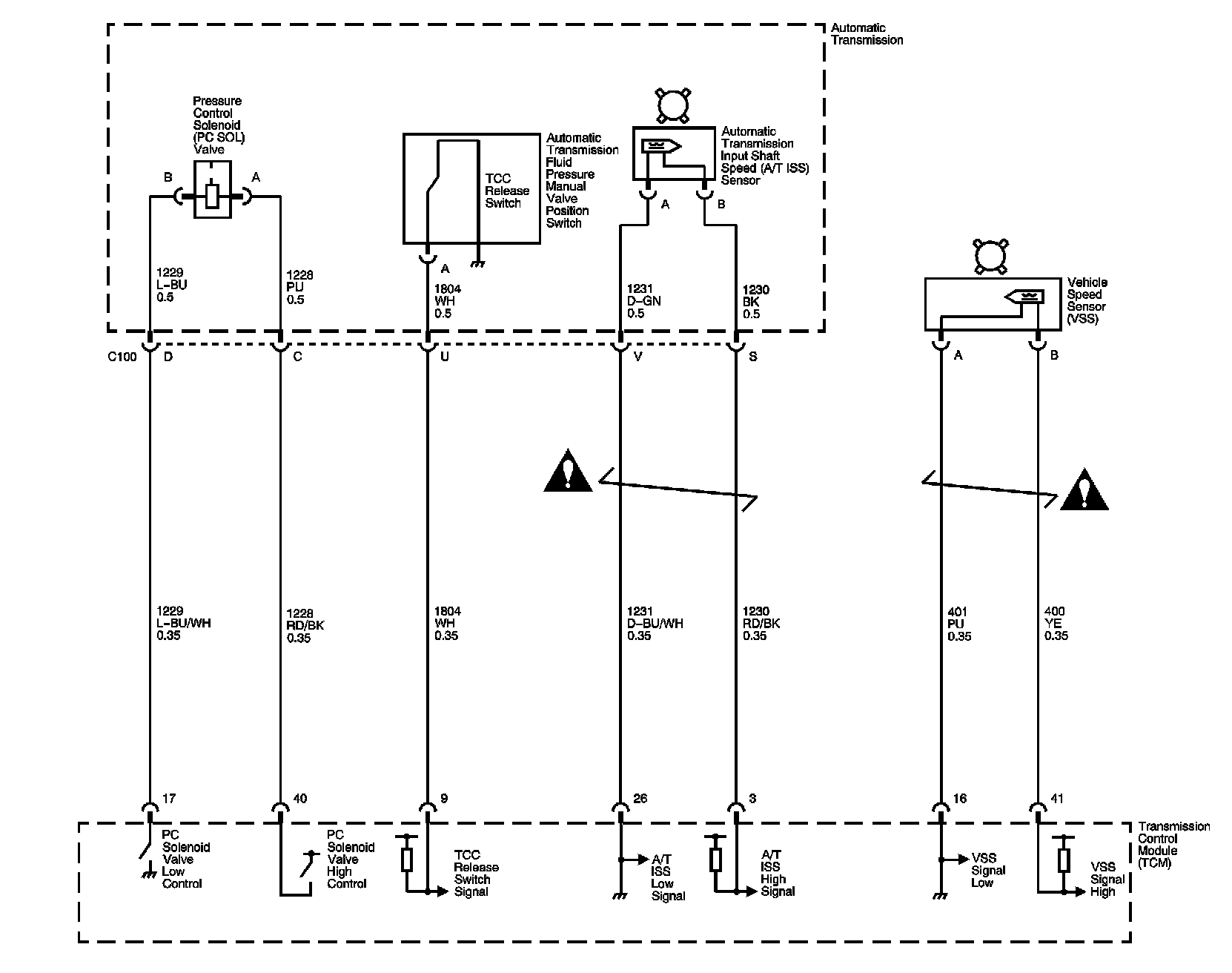

Automatic Transmission Controls Schematics 7:

Locations: The locations for the connectors, Grounds, Splices and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
