Air Injection Pressure Sensor/Switch: Diagrams

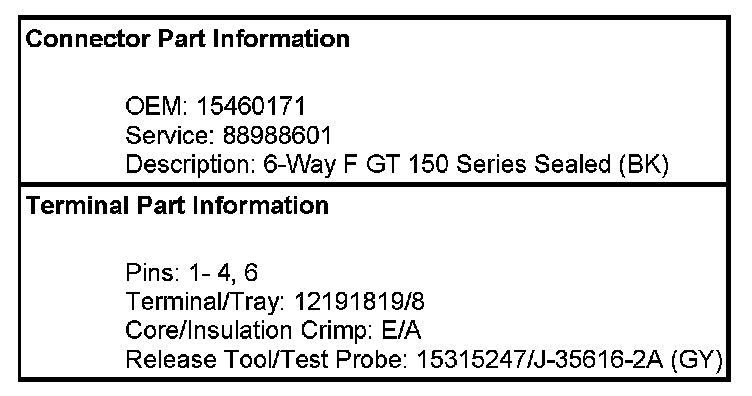

Engine Controls Connector End Views

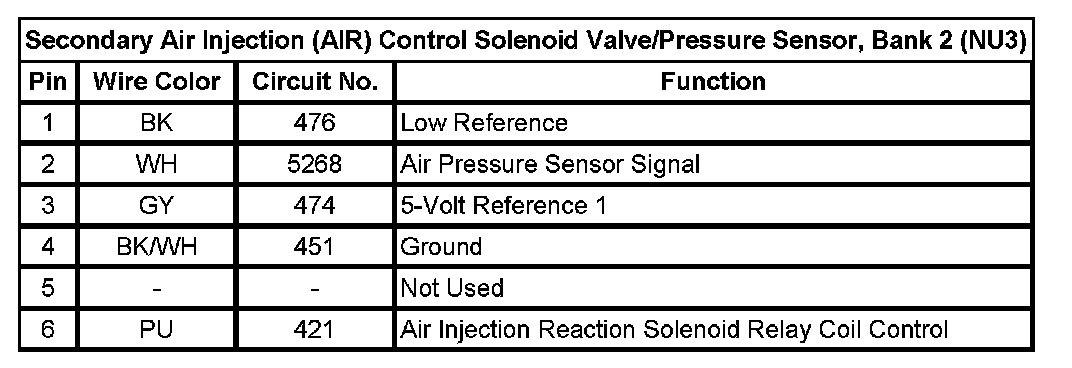

Secondary Air Injection (AIR) Control Solenoid Valve/Pressure Sensor, Bank 2 (NU3)
