Variable Valve Timing Solenoid: Diagrams



Engine Controls Connector End Views

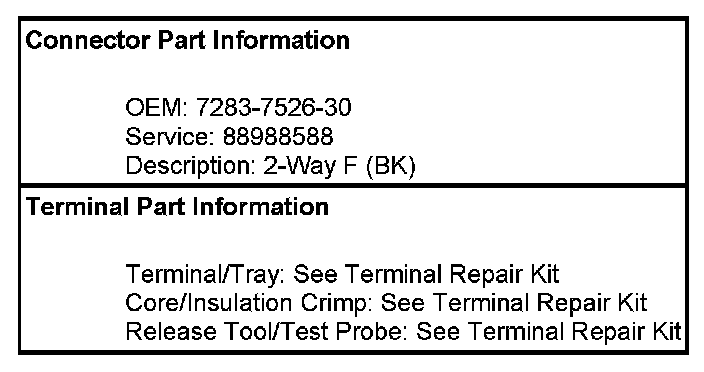

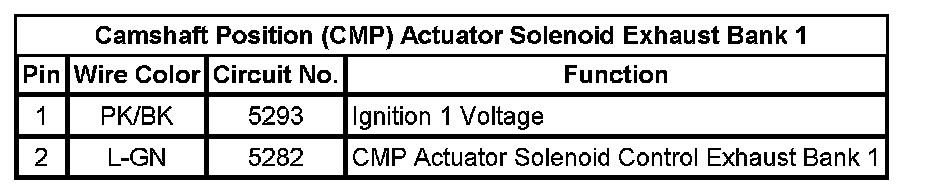

Camshaft Position (CMP) Actuator Solenoid Exhaust Bank 1

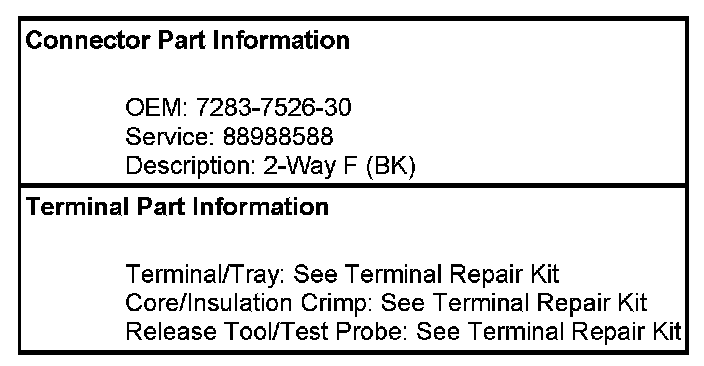

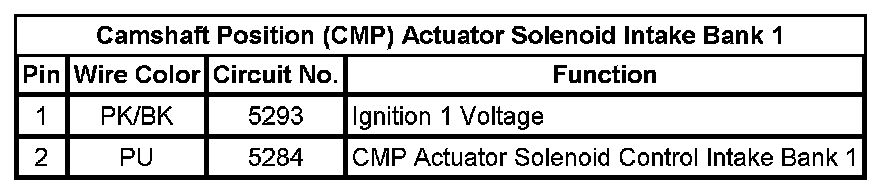

Camshaft Position (CMP) Actuator Solenoid Intake Bank 1

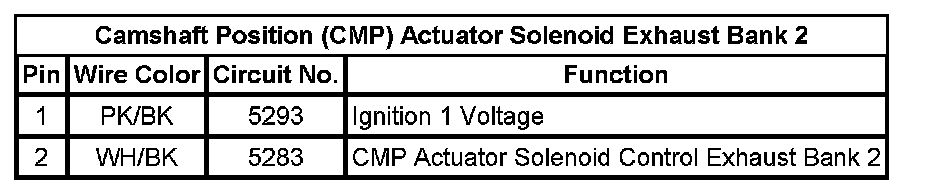

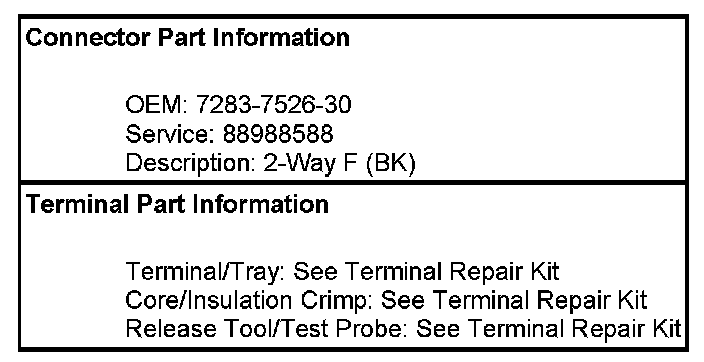

Camshaft Position (CMP) Actuator Solenoid Exhaust Bank 2

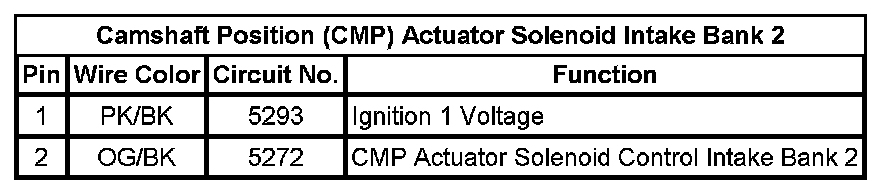

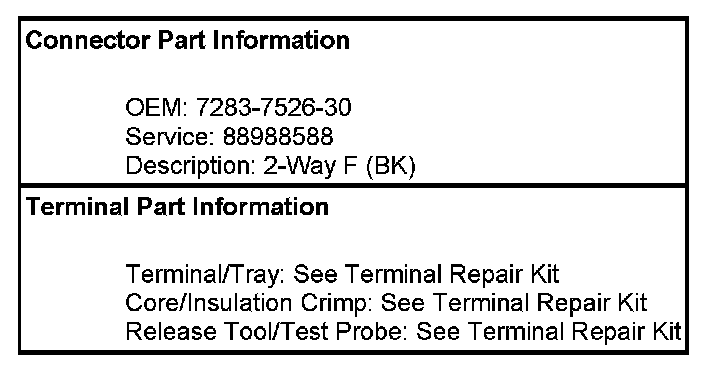

Camshaft Position (CMP) Actuator Solenoid Intake Bank 2
