Connector Views
Automatic Transmission Inline 20-Way Connector End View (3.6L)

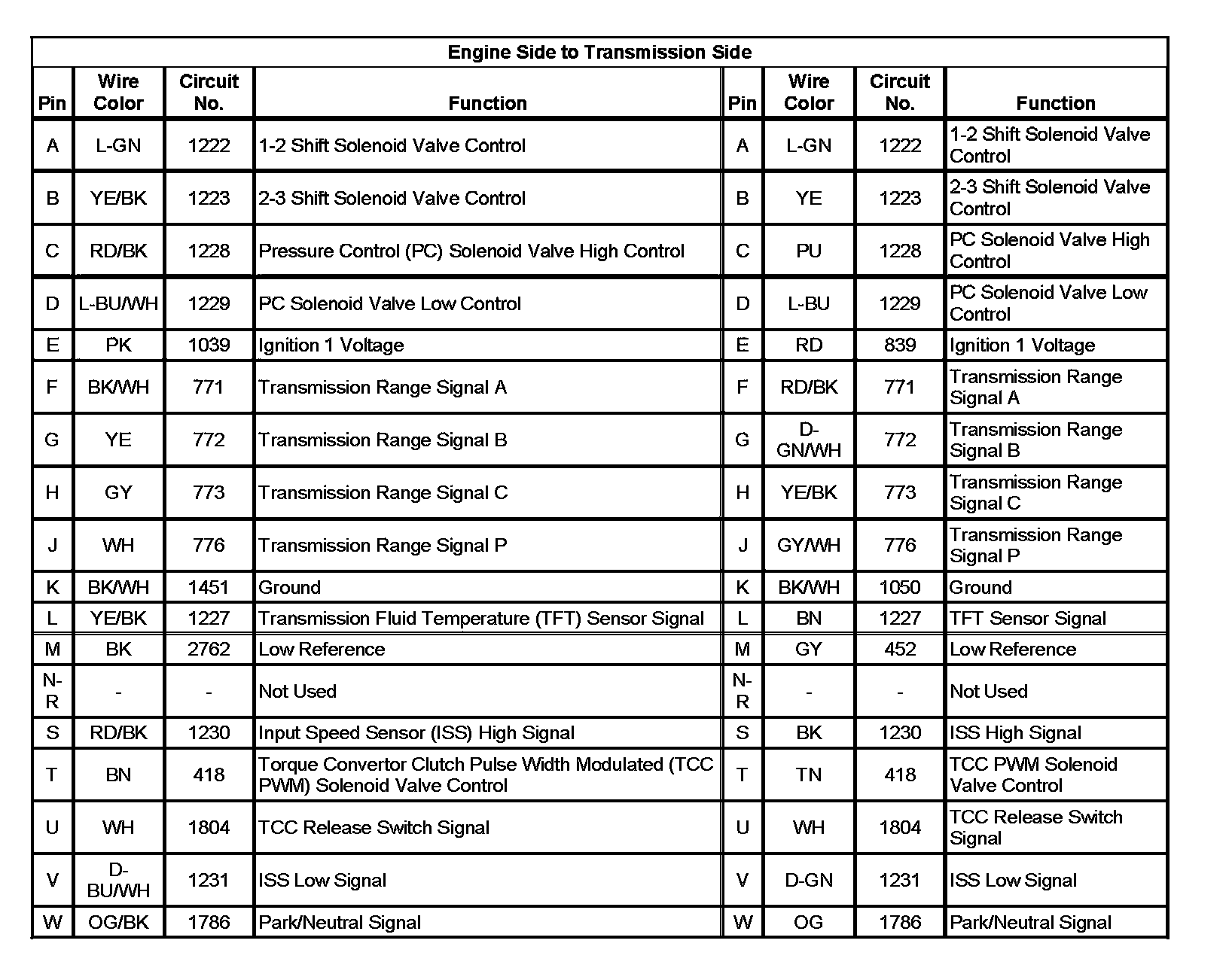

Engine Side to Transmission Side
Engine Side To Transmission Side:
