Scan Tool Output Controls

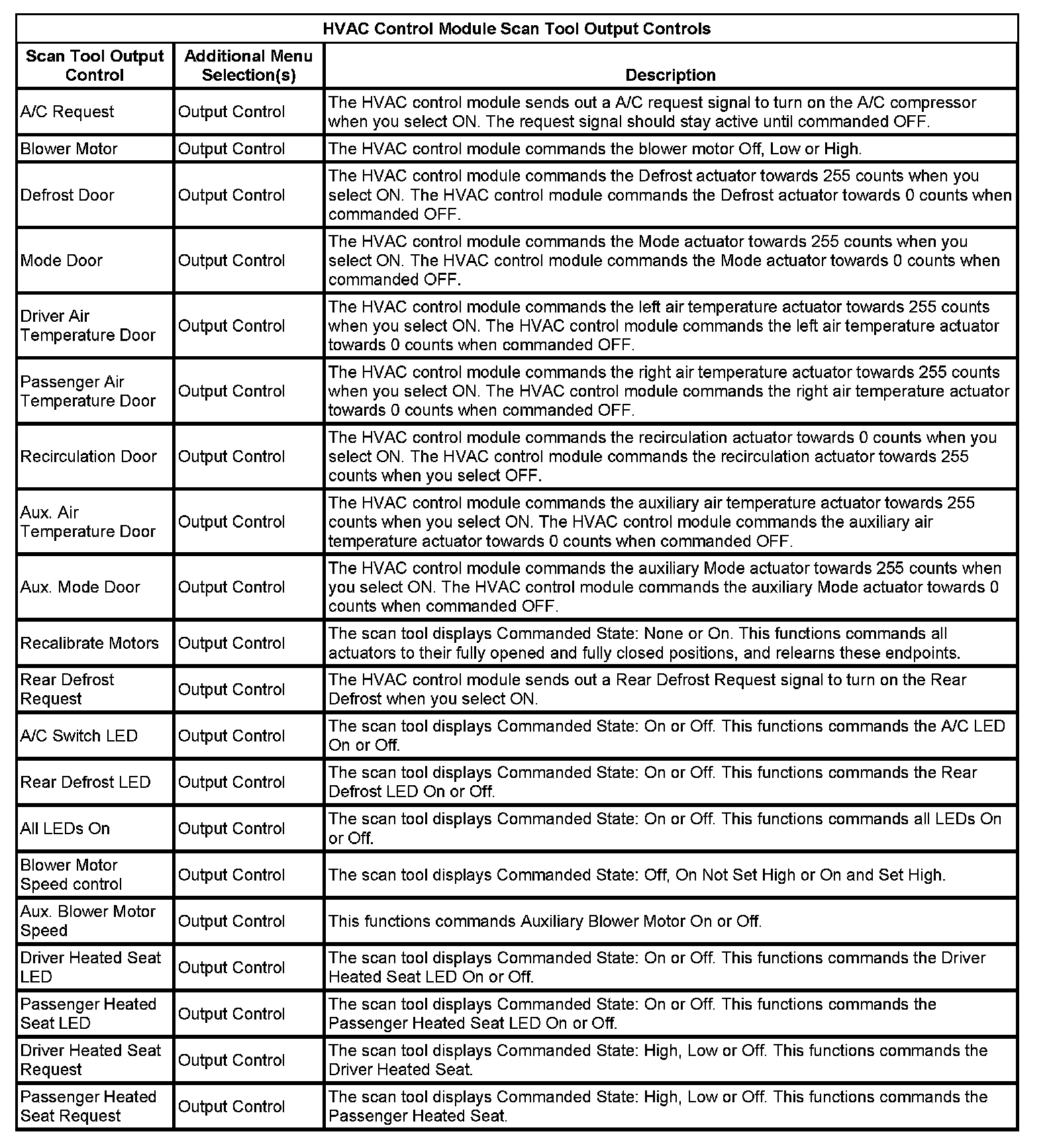

HVAC Control Module Scan Tool Output Controls:



PCM / ECM Scan Tool Output Controls:
