Buick
>>
2006
>>
Rendezvous AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Relay
>>
Locations
>>
Center Console Fuse Block
Center Console Fuse Block

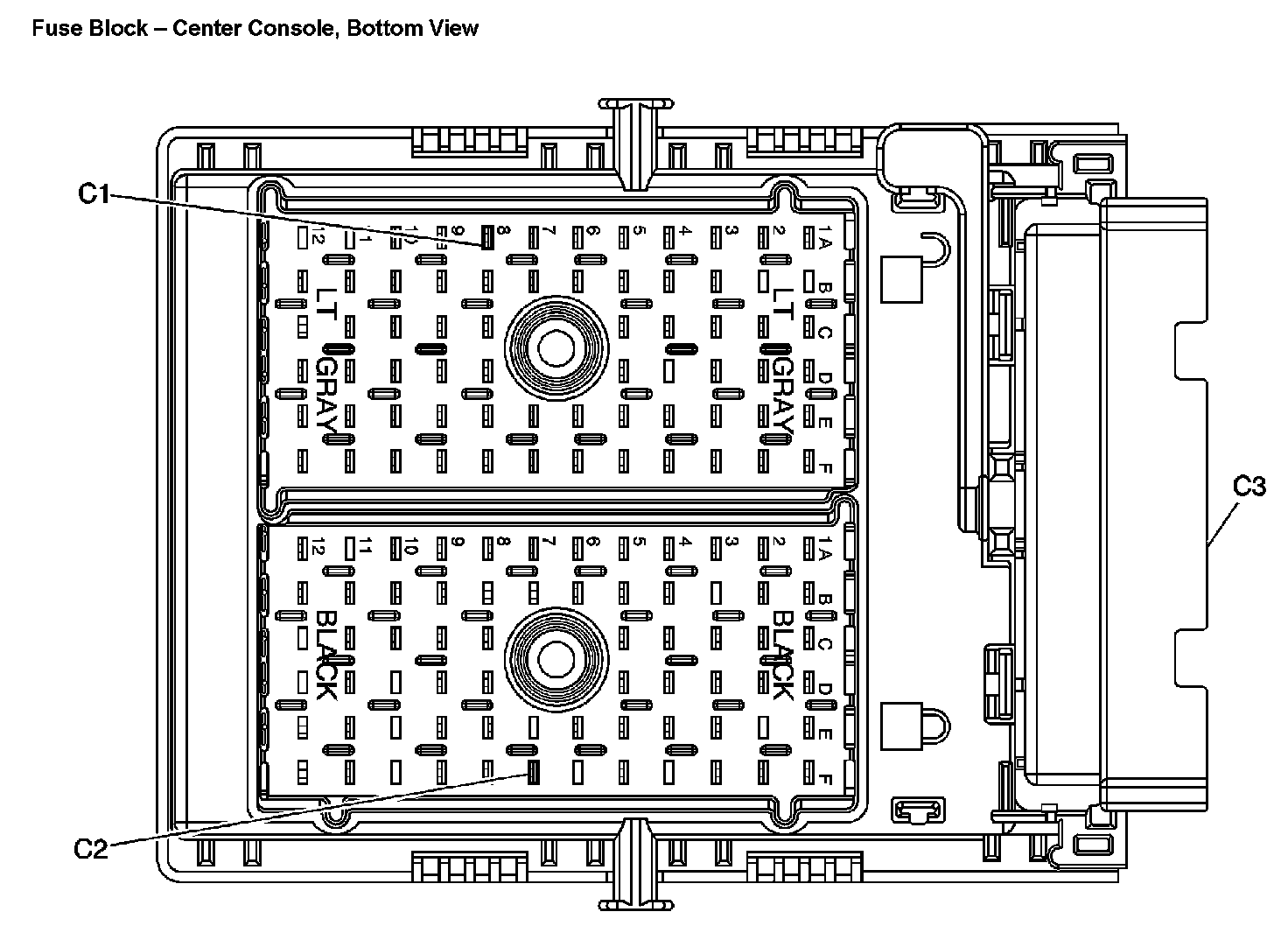

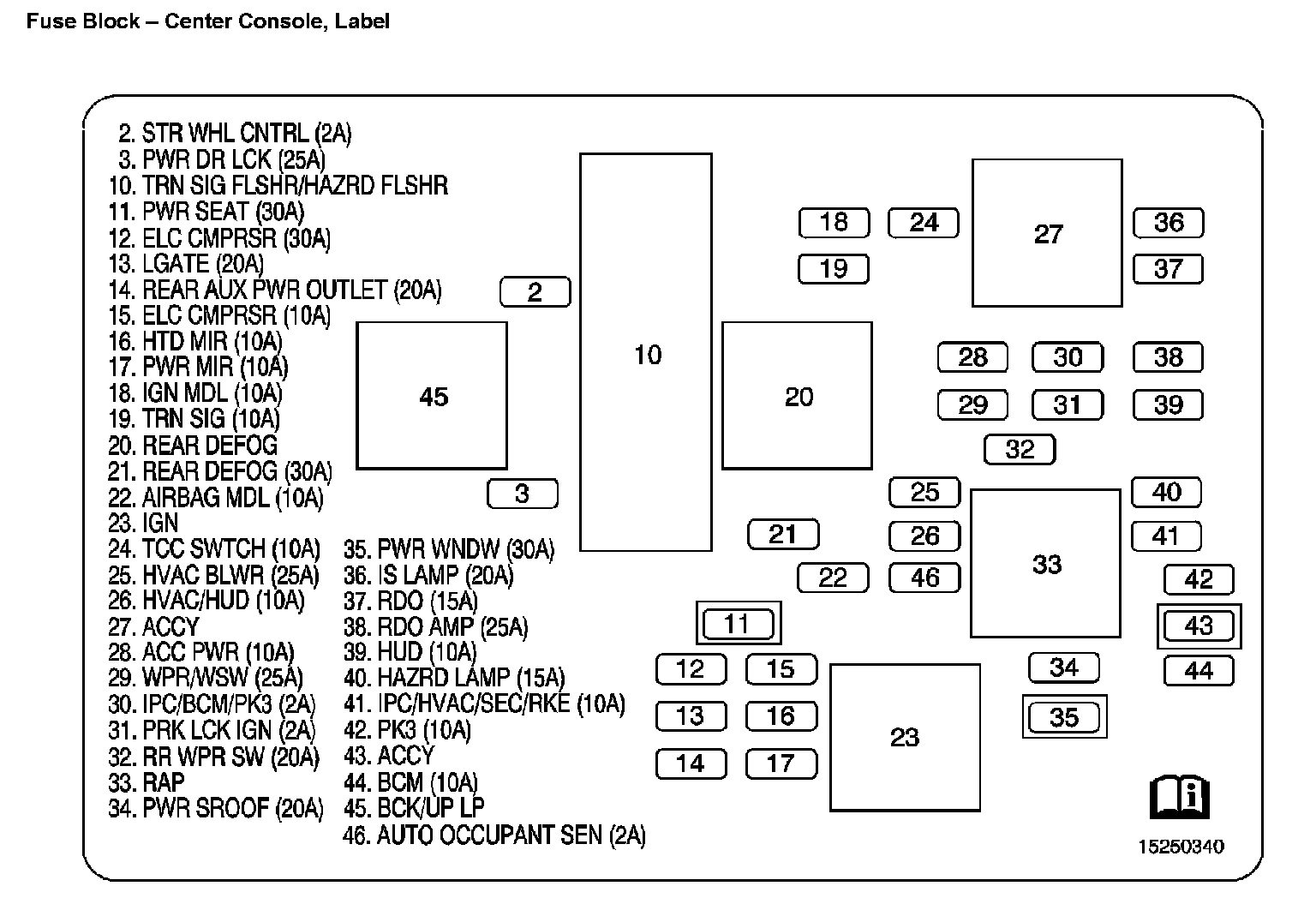

Location View:

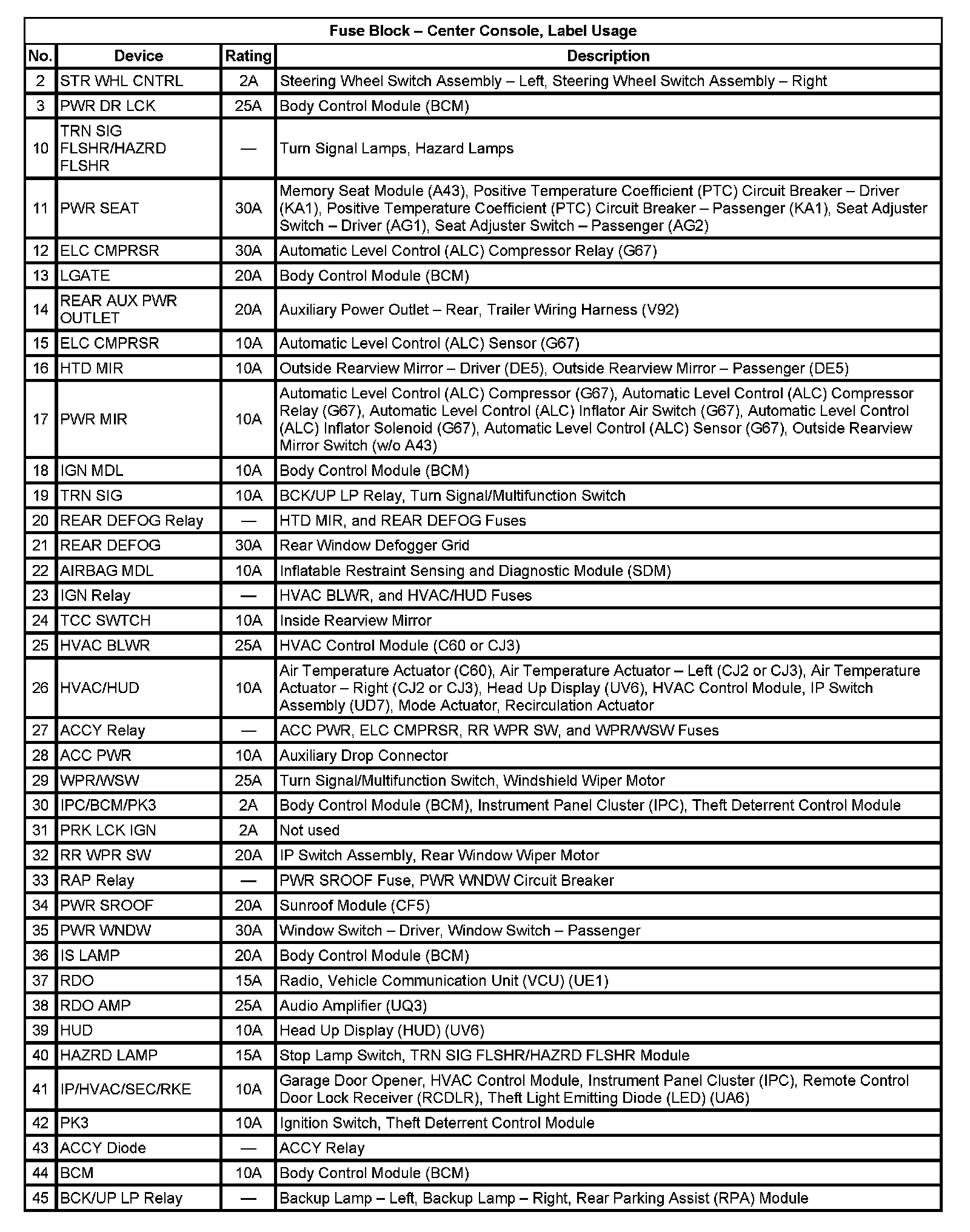

Application Table (Part 1):

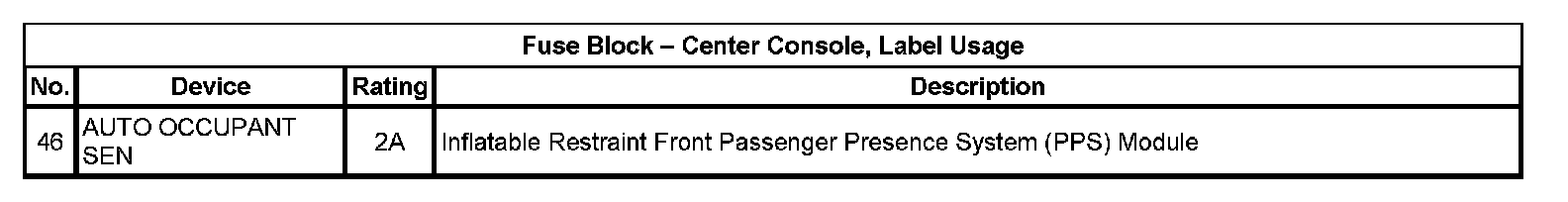

Application Table (Part 2):

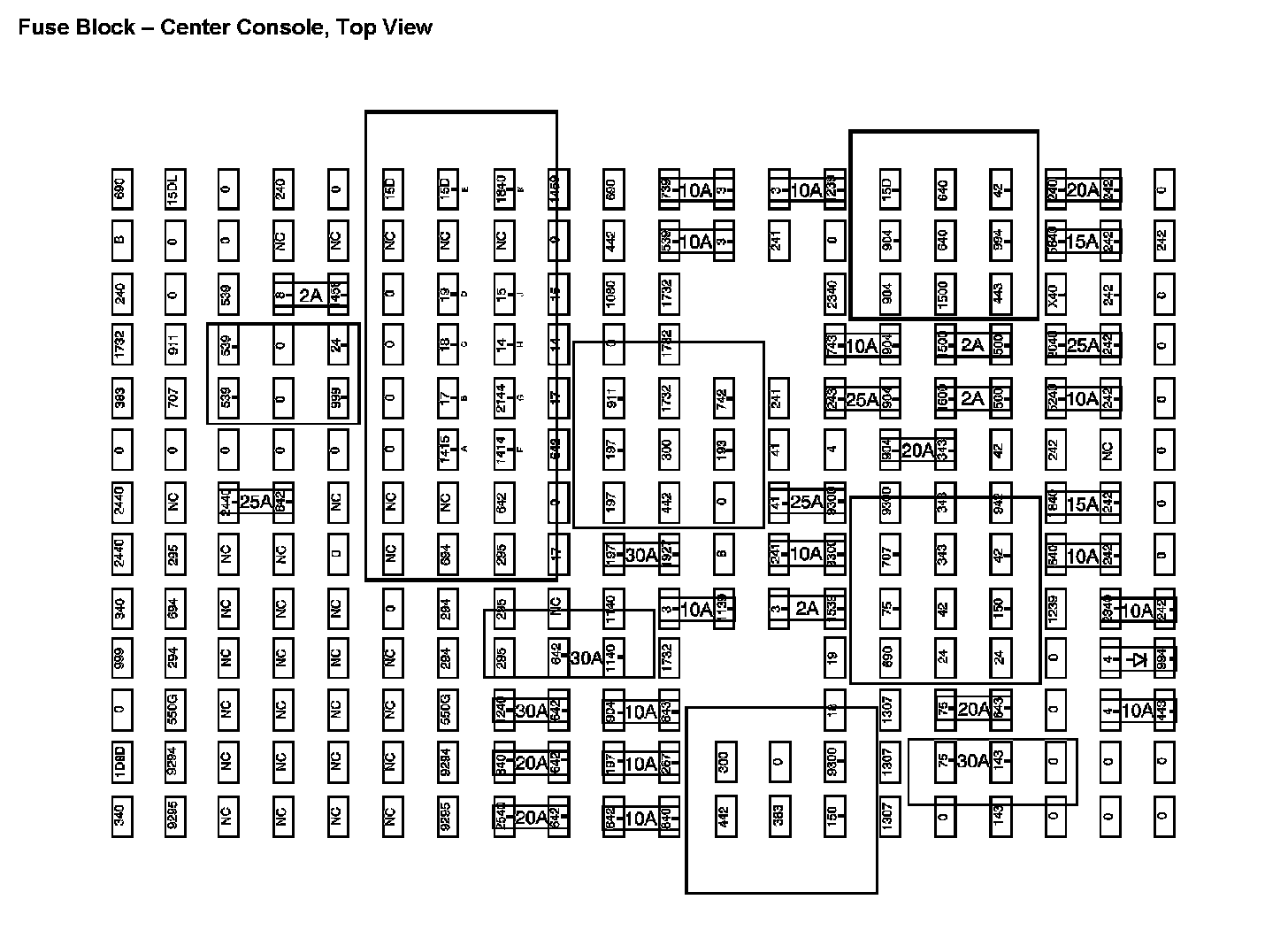

Location View (Part 1):
Location View (Part 2):
