Connector Views

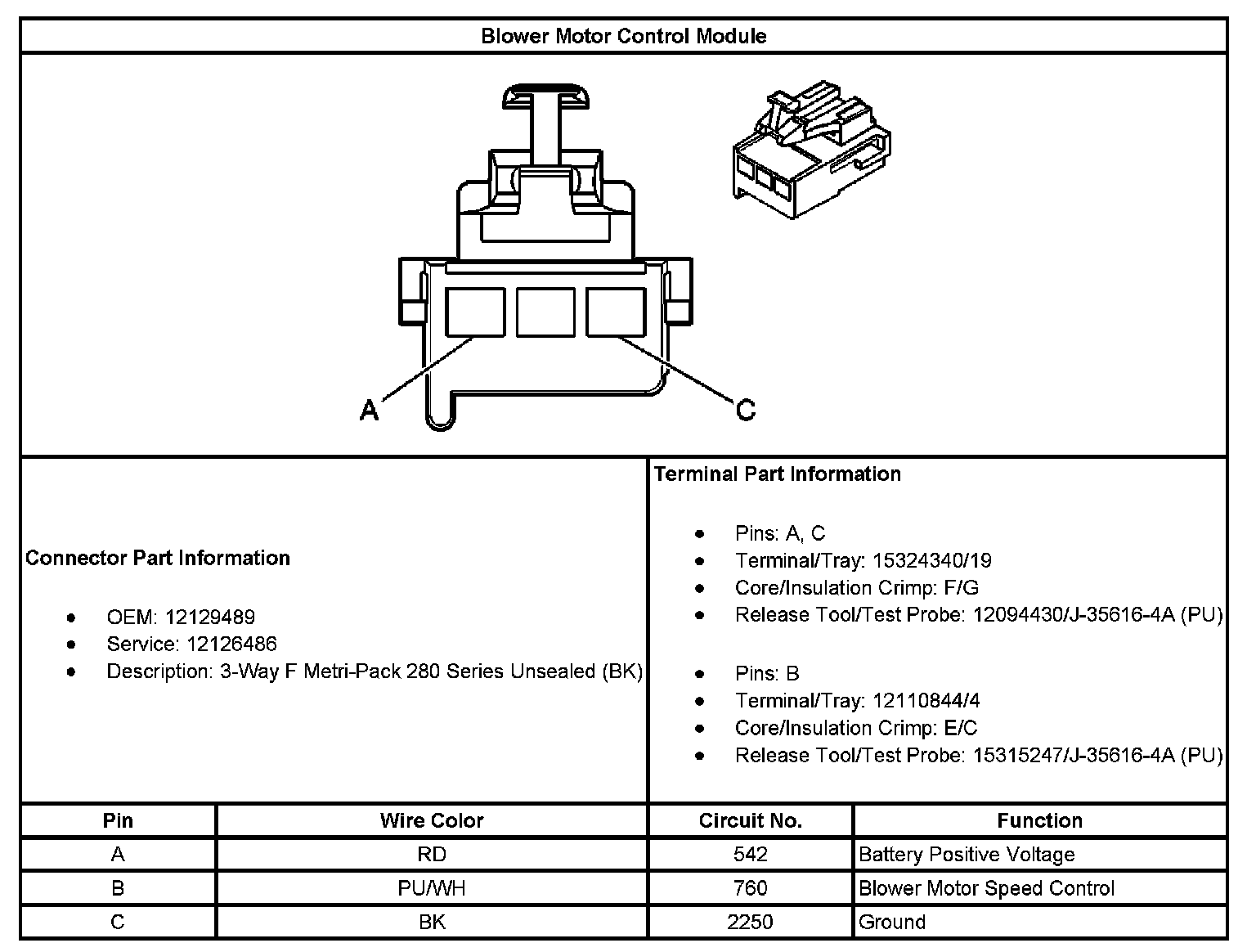

Blower Motor Control Module:

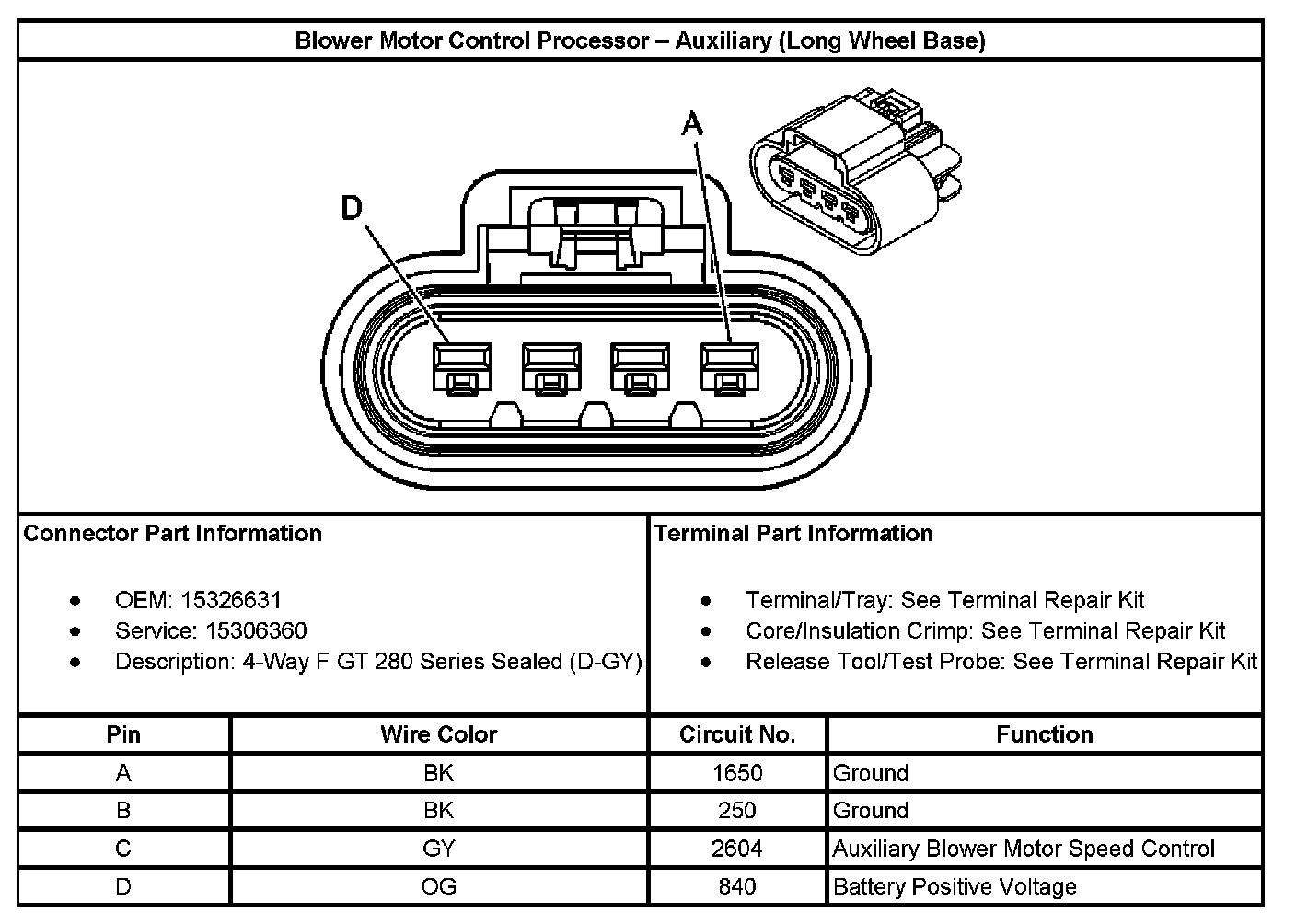

Blower Motor Control Processor - Auxiliary (Long Wheel Base):
