Home >> Buick >> 2006 >> Rainier AWD L6-4.2L VIN S >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Module >> Diagrams

Memory Positioning Module: Diagrams

Memory Seat Module - Driver C1 (w/Memory):

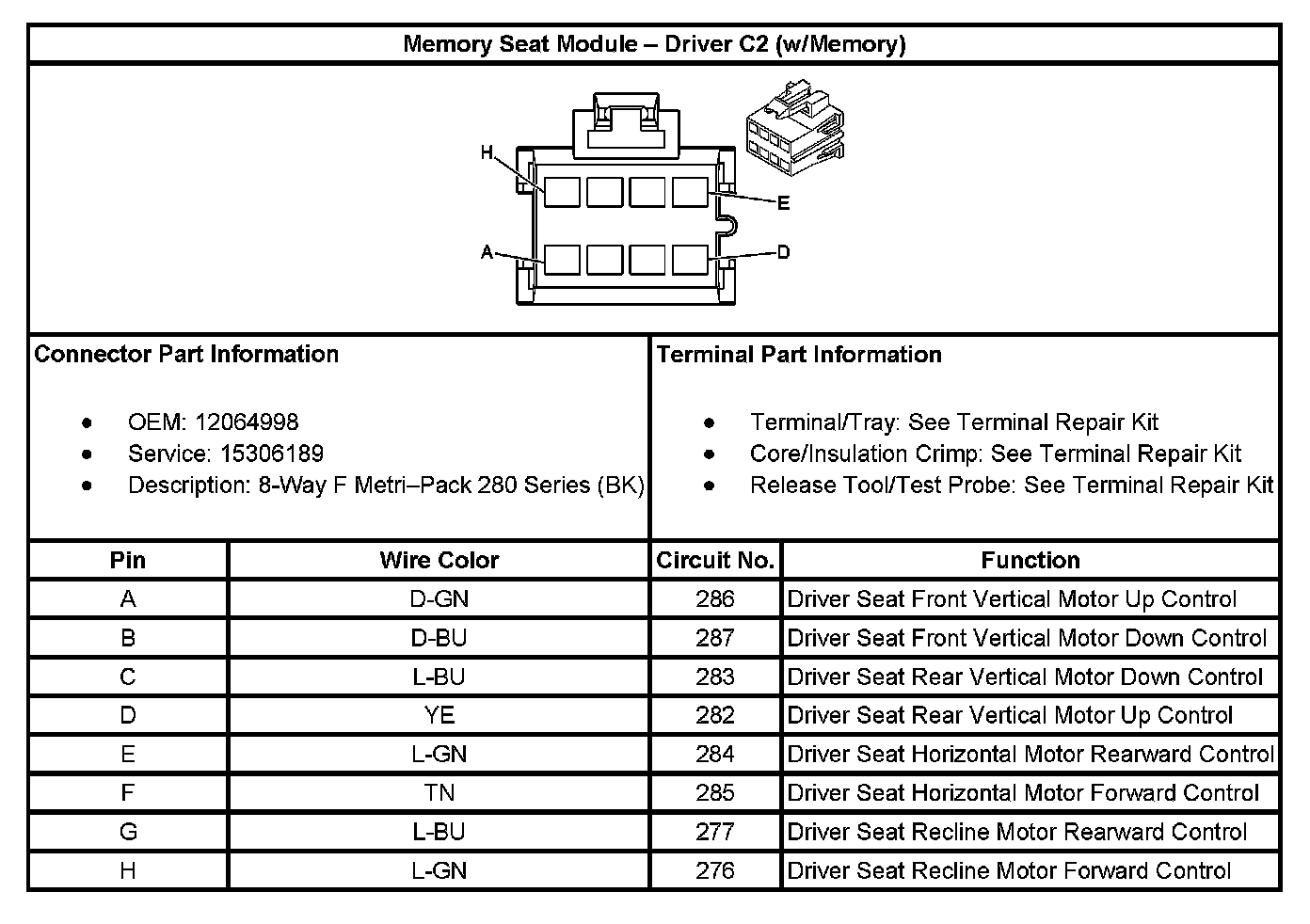

Memory Seat Module - Driver C2 (w/Memory):

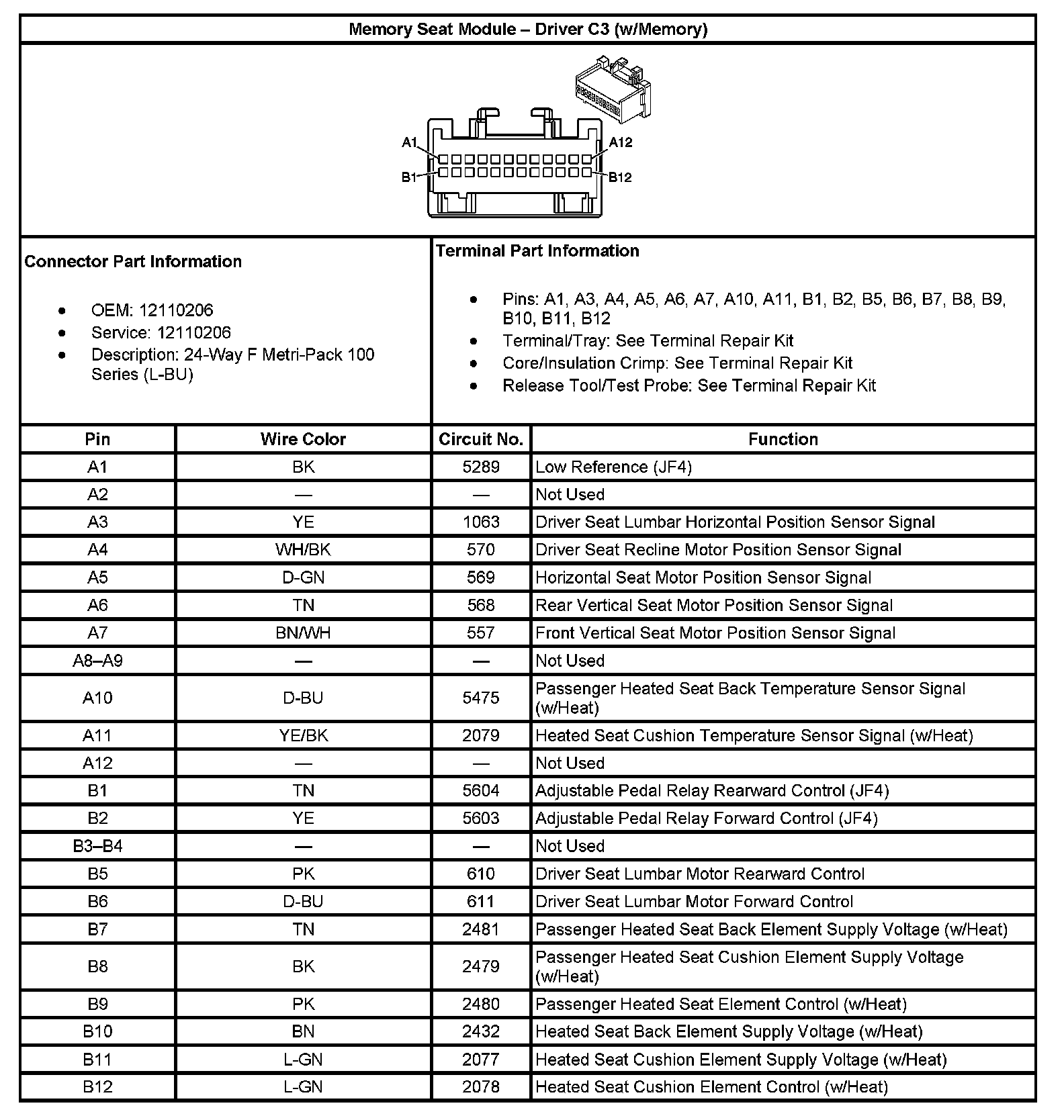

Memory Seat Module - Driver C3 (w/Memory):

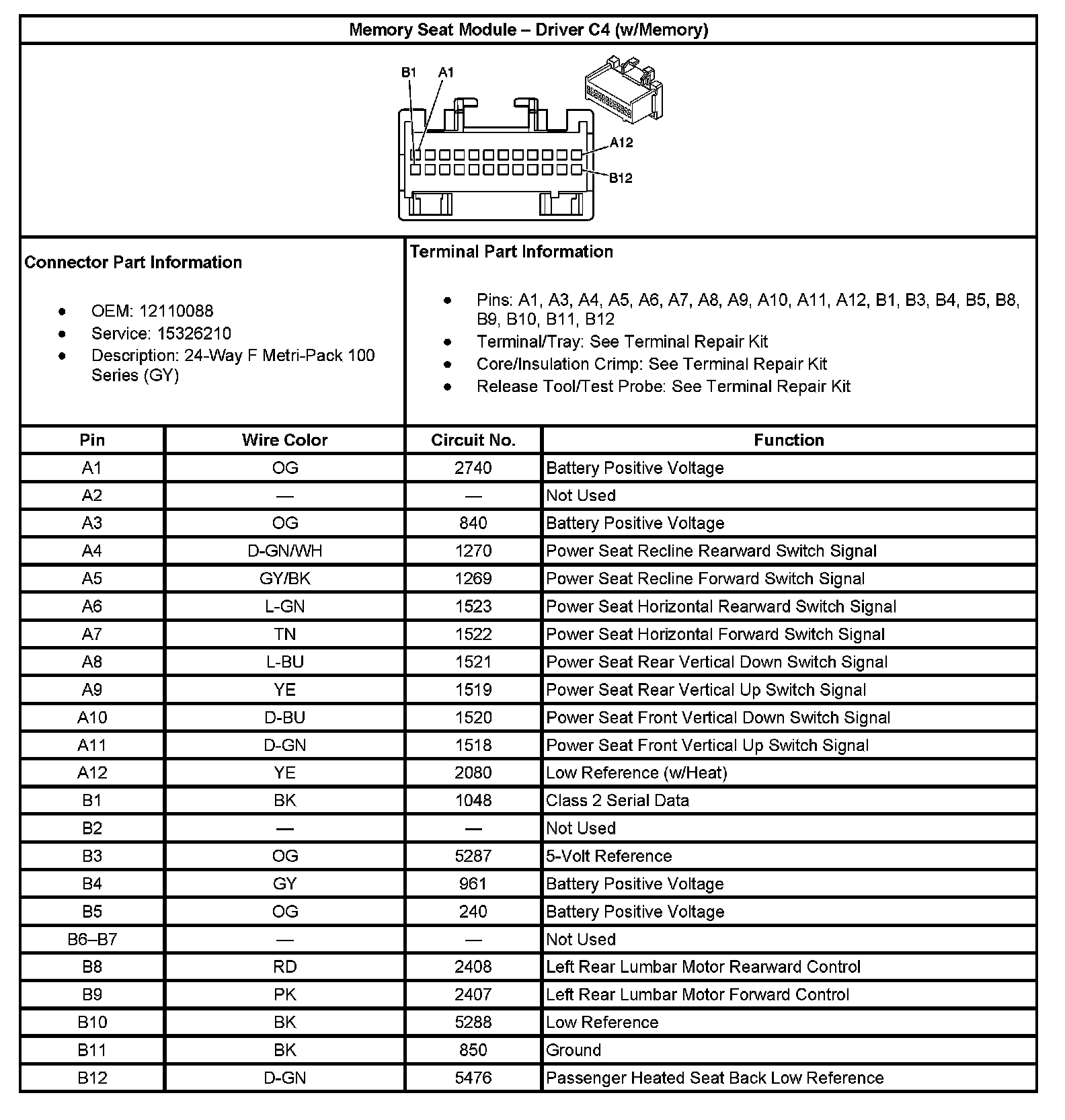

Memory Seat Module - Driver C4 (w/Memory):
