Home >> Buick >> 2006 >> Lucerne V6-3.8L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> 4T65-E Automatic Transaxle >> Scan Tool Output Controls

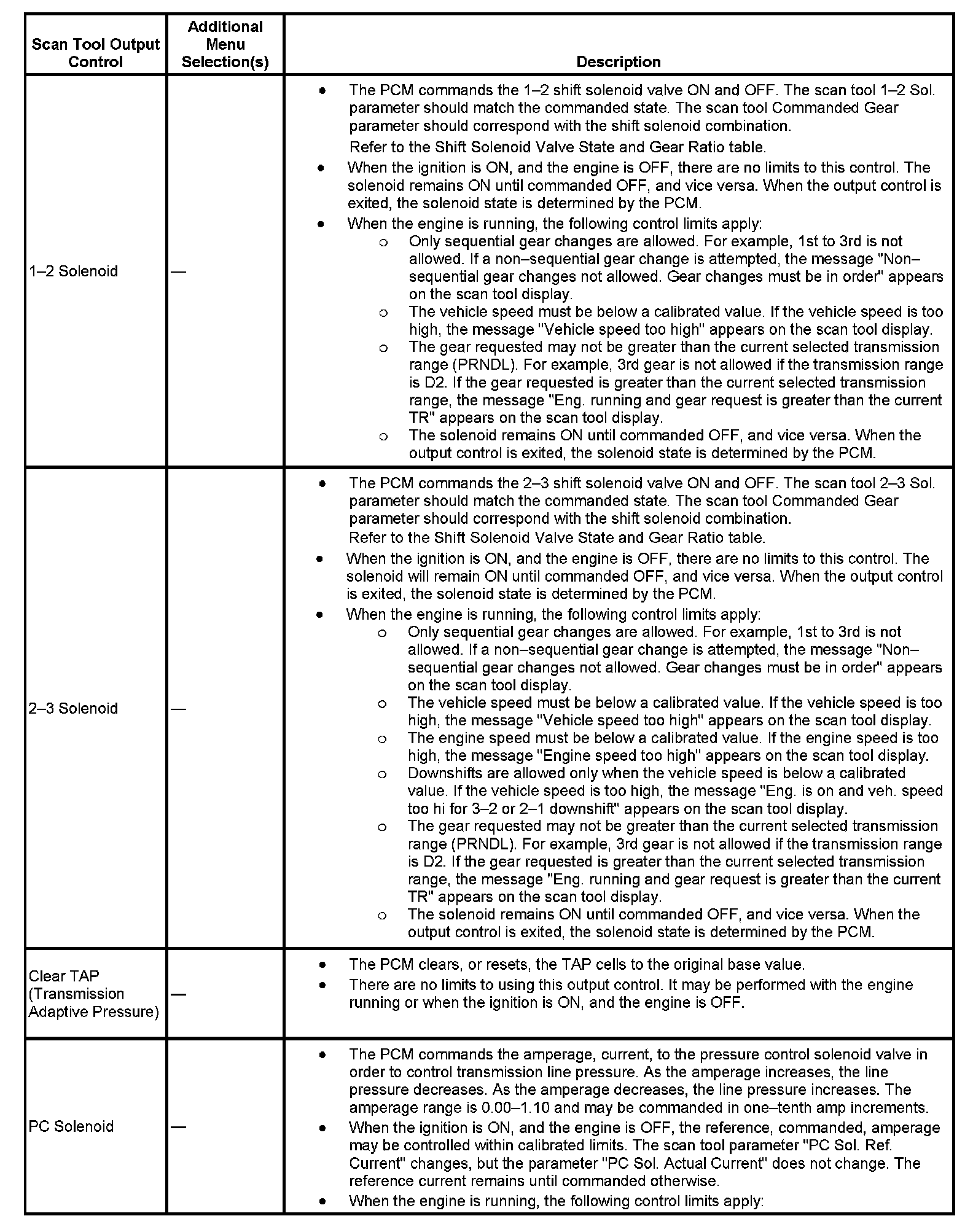

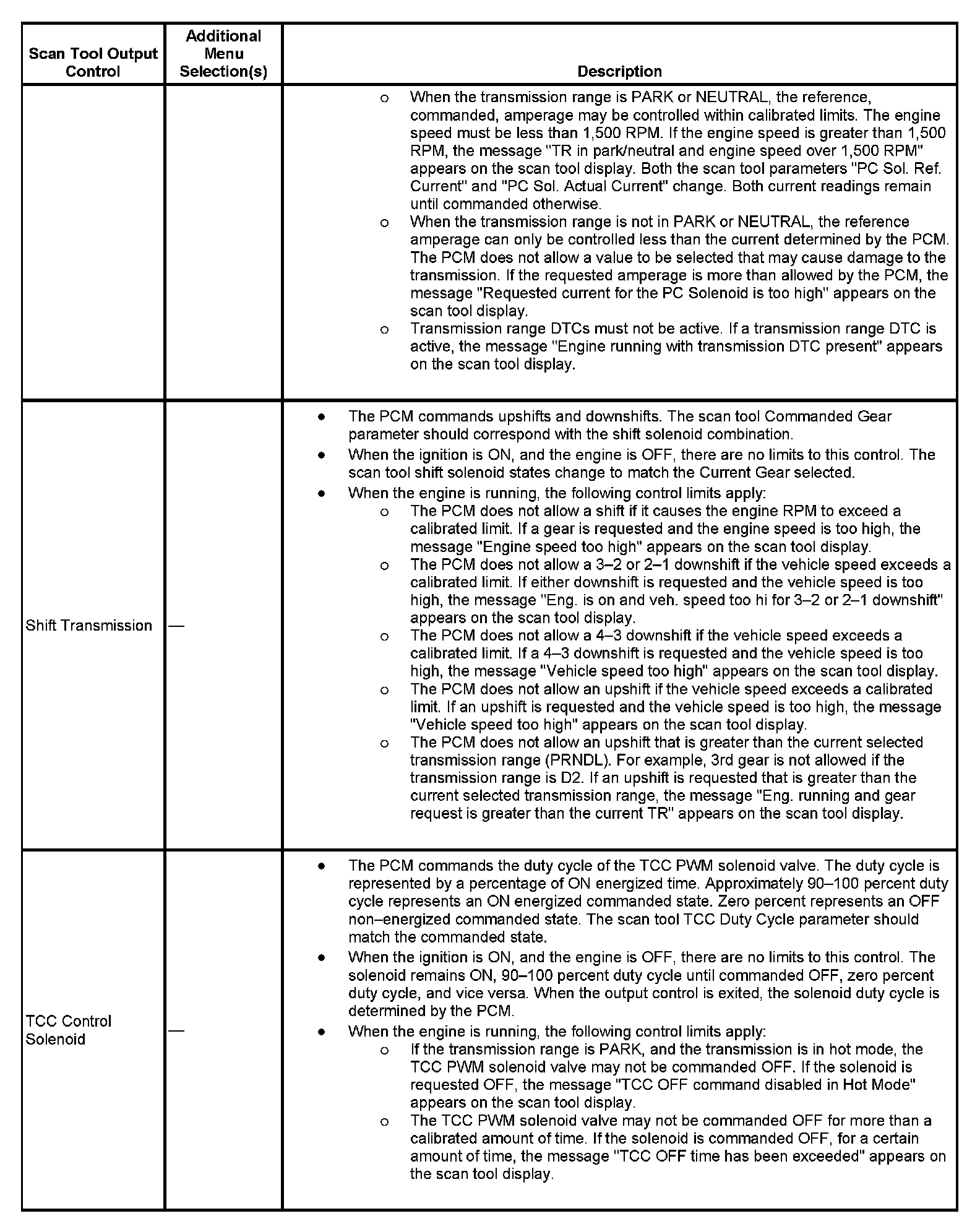

Scan Tool Output Controls

Scan Tool Output Controls:



Shift Solenoid Valve State And Gear Ratio:
