Home >> Buick >> 2006 >> Lucerne V6-3.8L VIN 2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations >> HVAC System - Automatic

HVAC System - Automatic

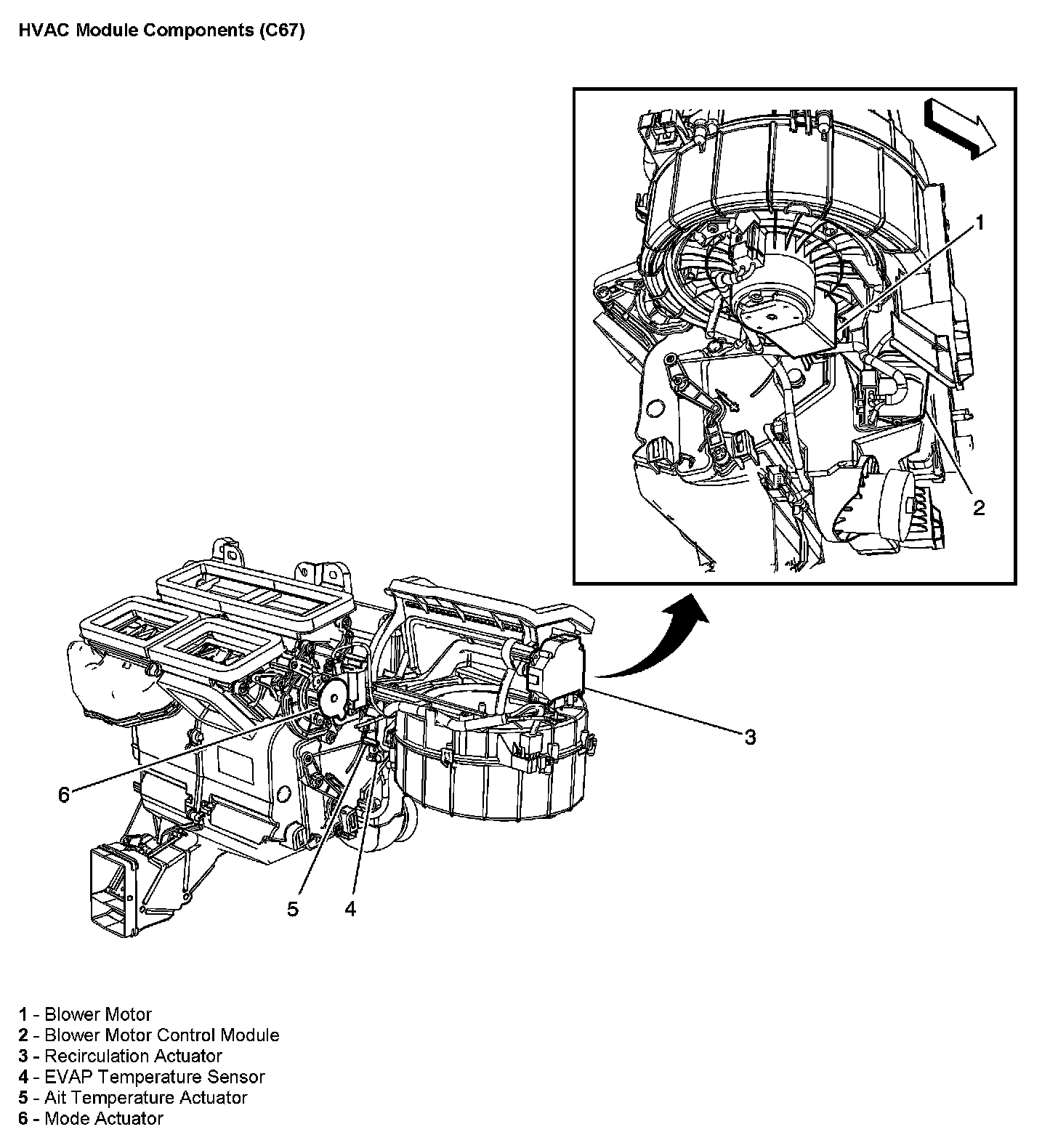

HVAC Module Components (With RPO Code C67):

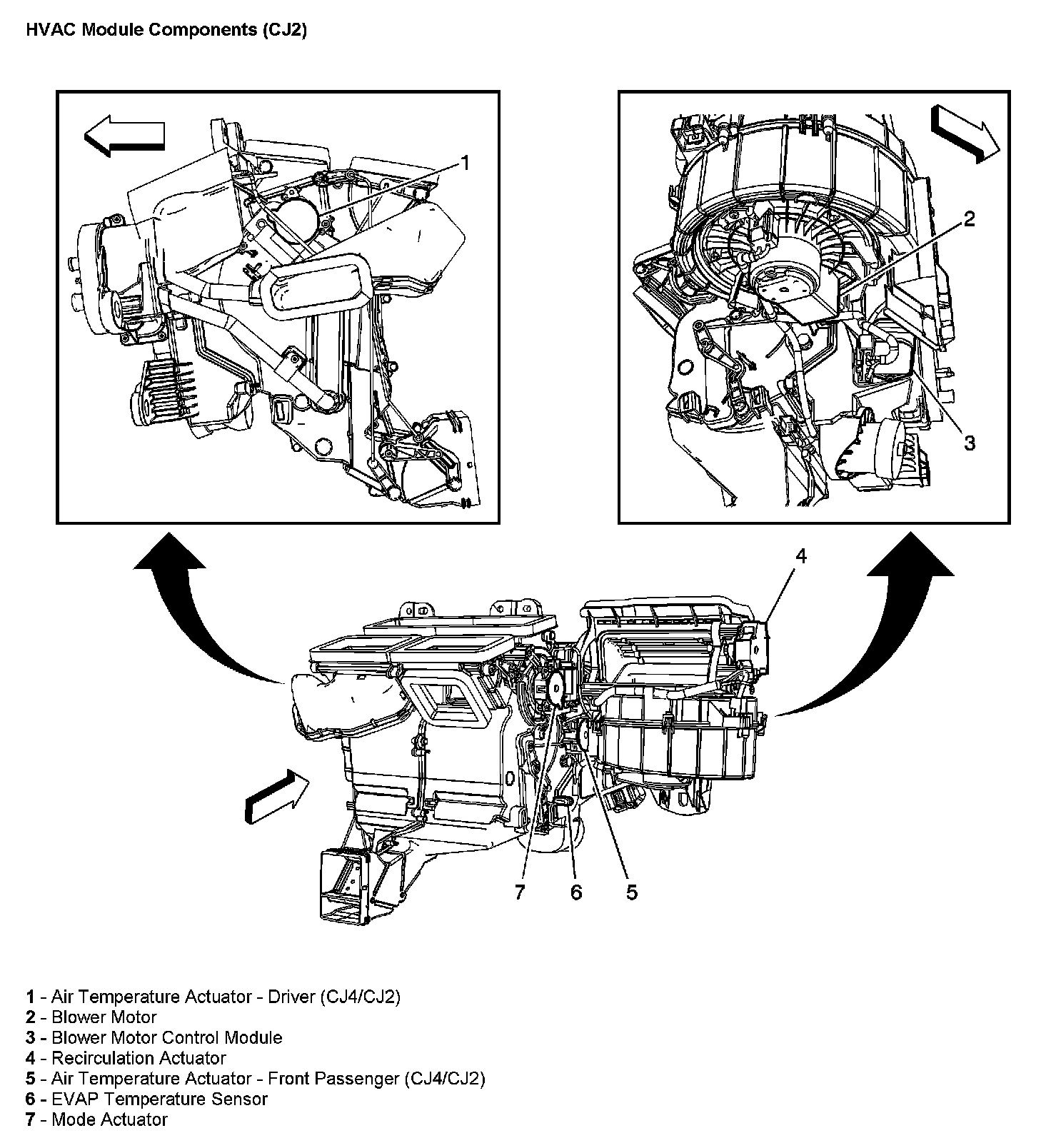

HVAC Module Components (With RPO Code CJ2):
