Home >> Buick >> 2006 >> Allure (CANADA) V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

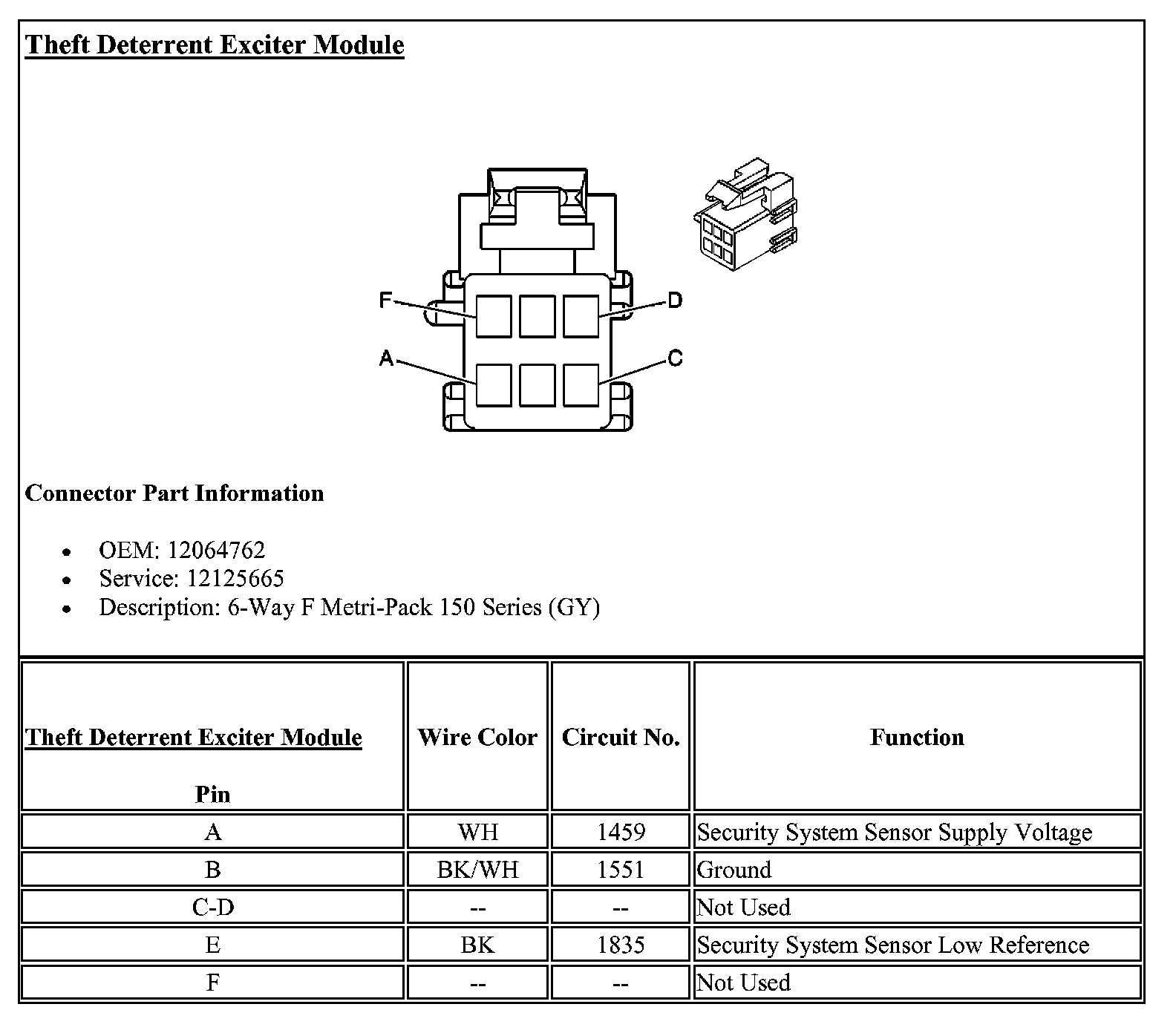

Theft Deterrent Exciter Module:
