Home >> Buick >> 2006 >> Allure (CANADA) V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

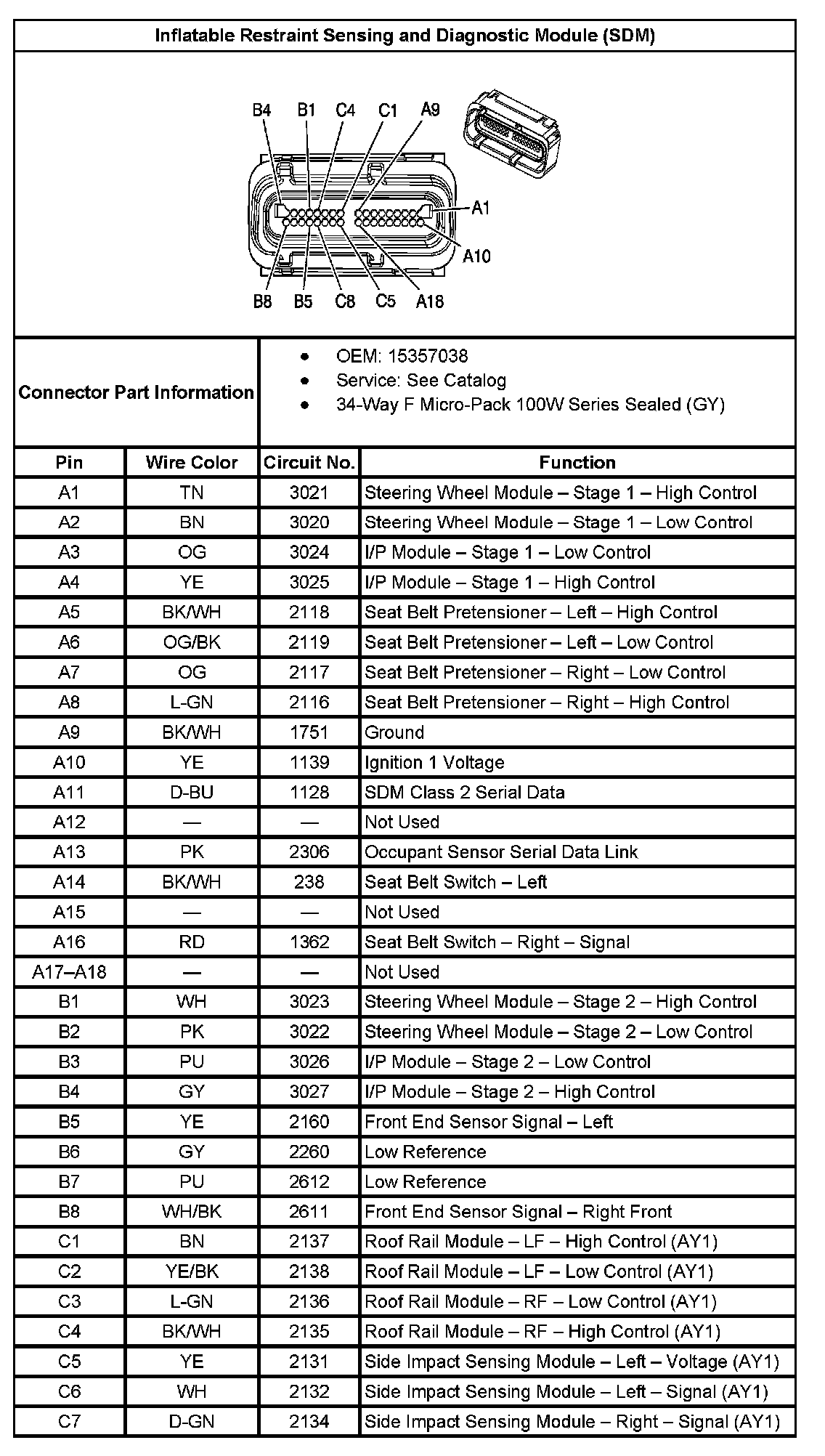

Inflatable Restraint Sensing And Diagnostic Module (SDM):



Inflatable Restraint Sensing And Diagnostic Module (SDM):
