Control Module: Diagrams

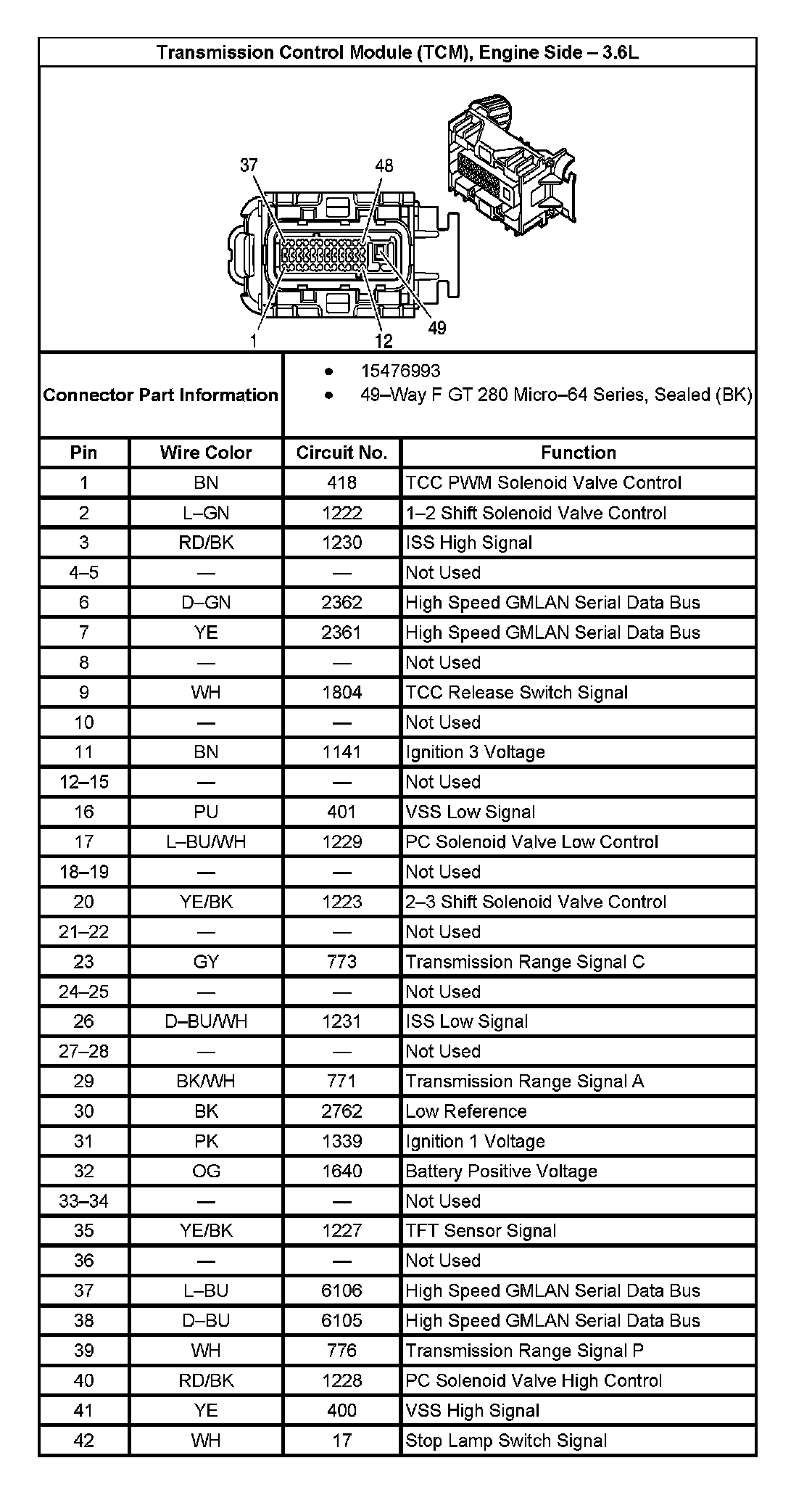

Transmission Control Module (TCM), Engine Side - 3.6L:



Transmission Control Module (TCM), Engine Side - 3.6L:
