Home >> Buick >> 2006 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Manifold Pressure/Vacuum Sensor >> Diagrams

Manifold Pressure/Vacuum Sensor: Diagrams

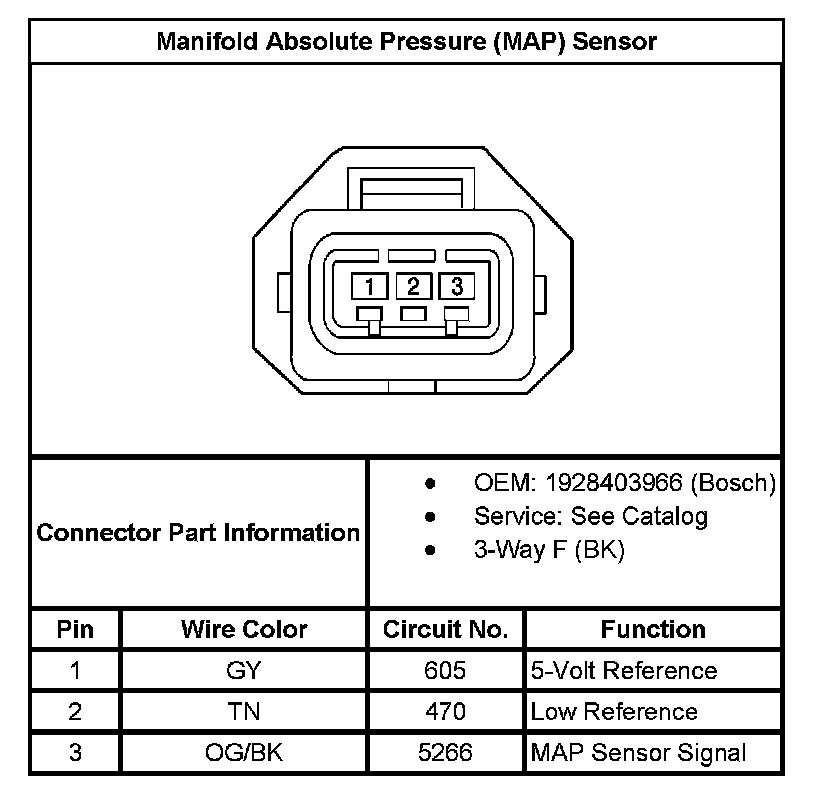

Manifold Absolute Pressure (MAP) Sensor:
