Transmission Internal Mode Switch
Transmission Internal Mode Switch

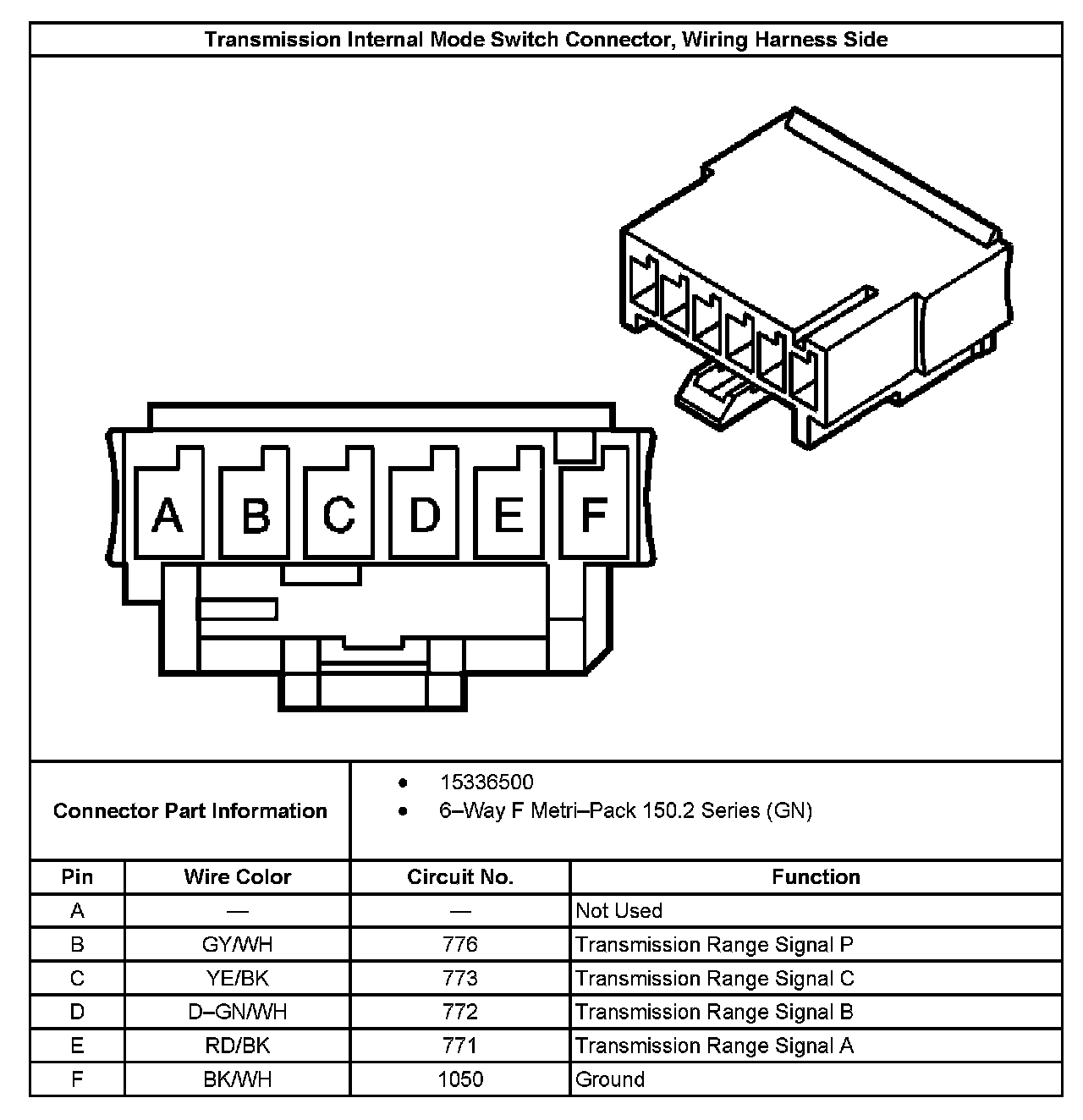

Transmission Internal Mode Switch Connector, Wiring Harness Side:
