LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
2005
>>
Terraza AWD V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Relay
>>
Locations
Ignition Relay: Locations

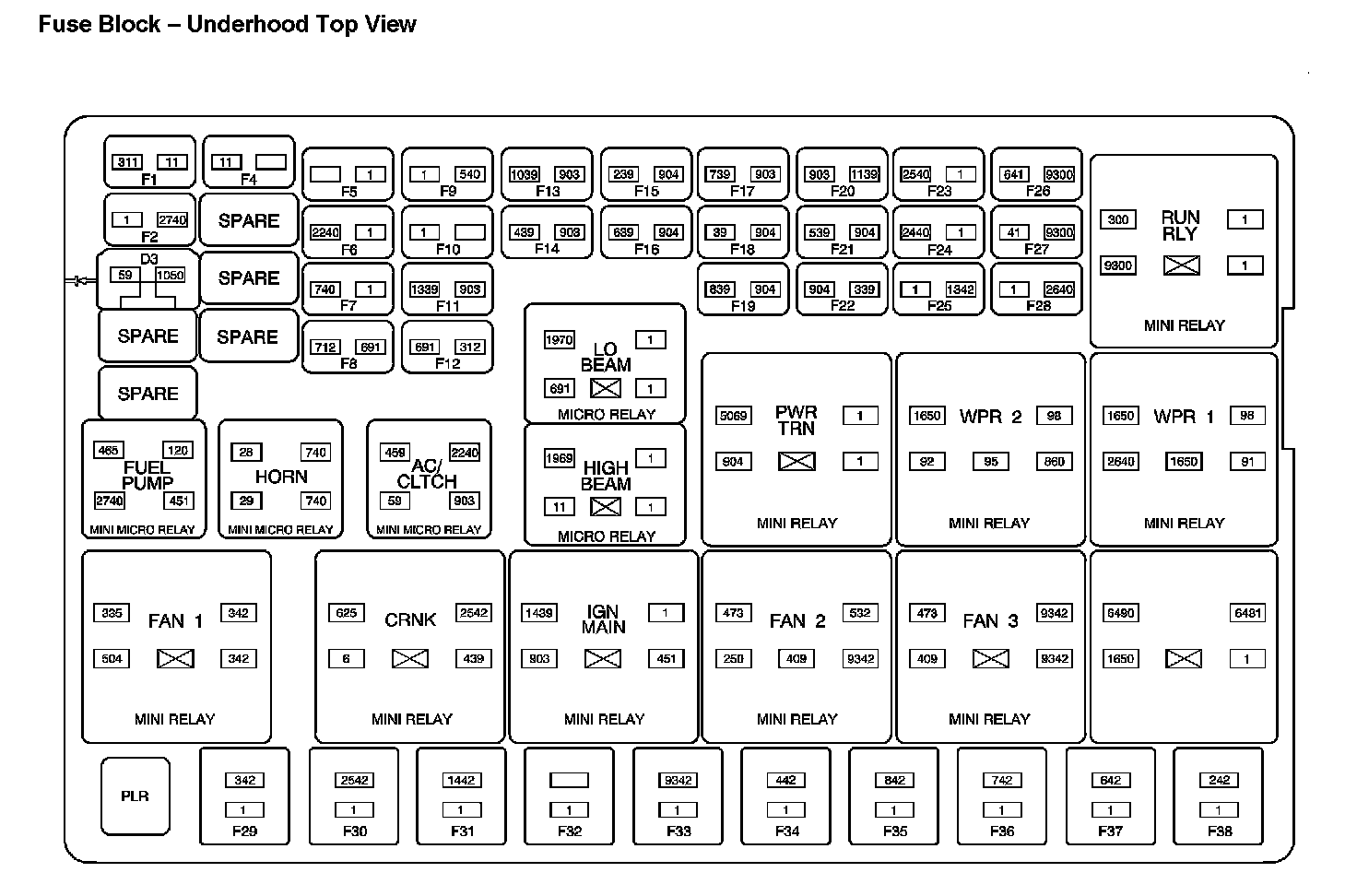

Location View:

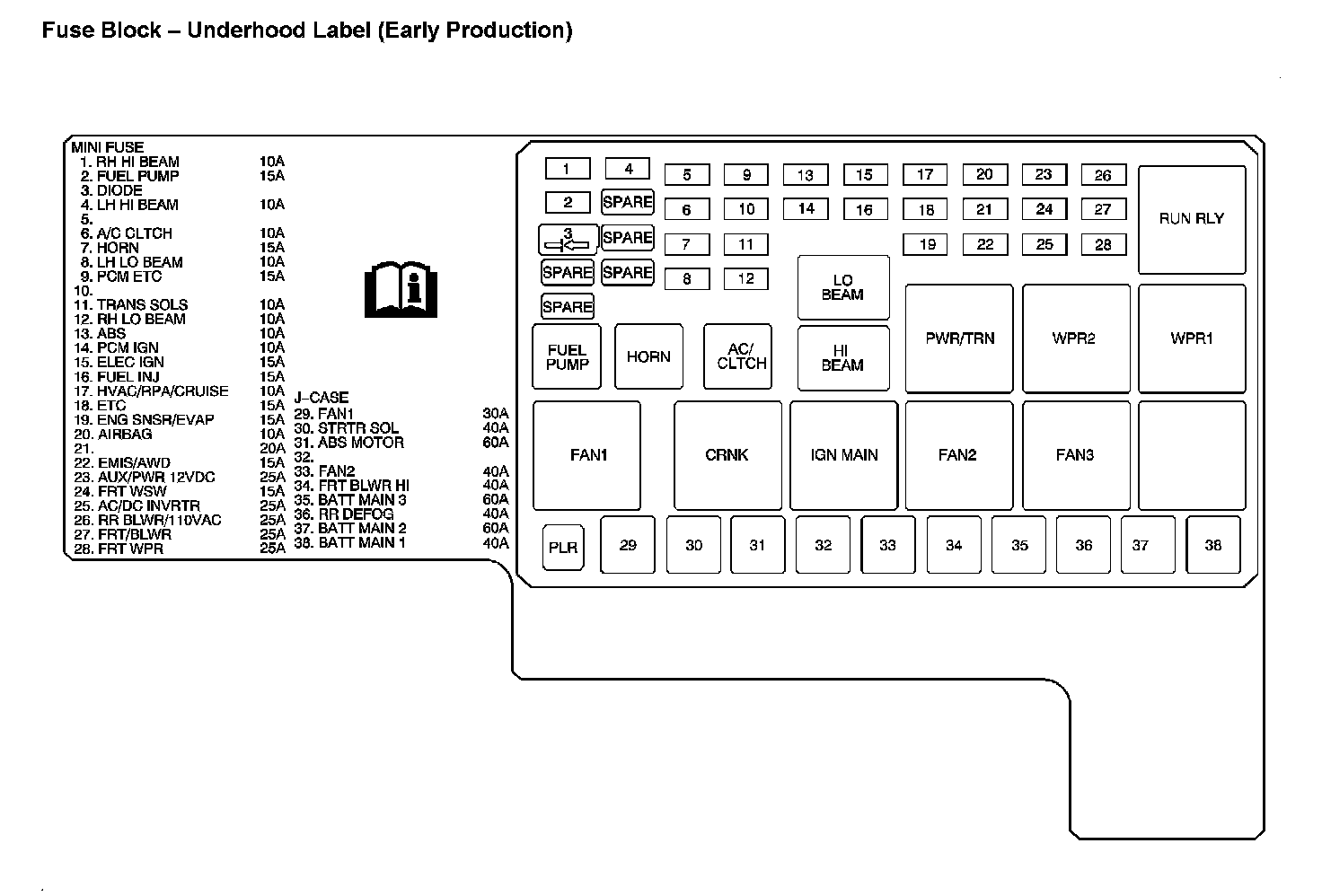

Location View:

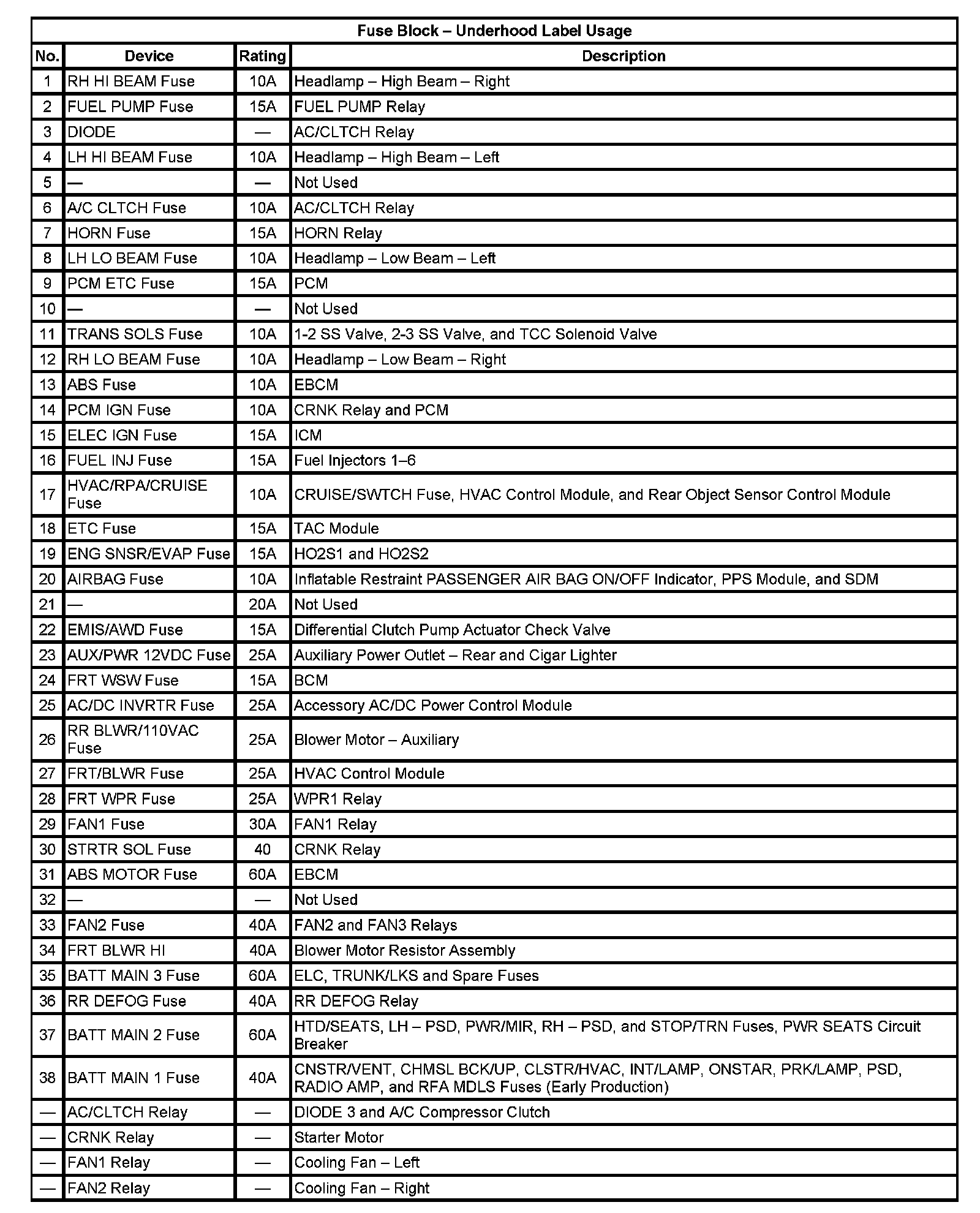

Application Table (Part 1):
Application Table (Part 2):

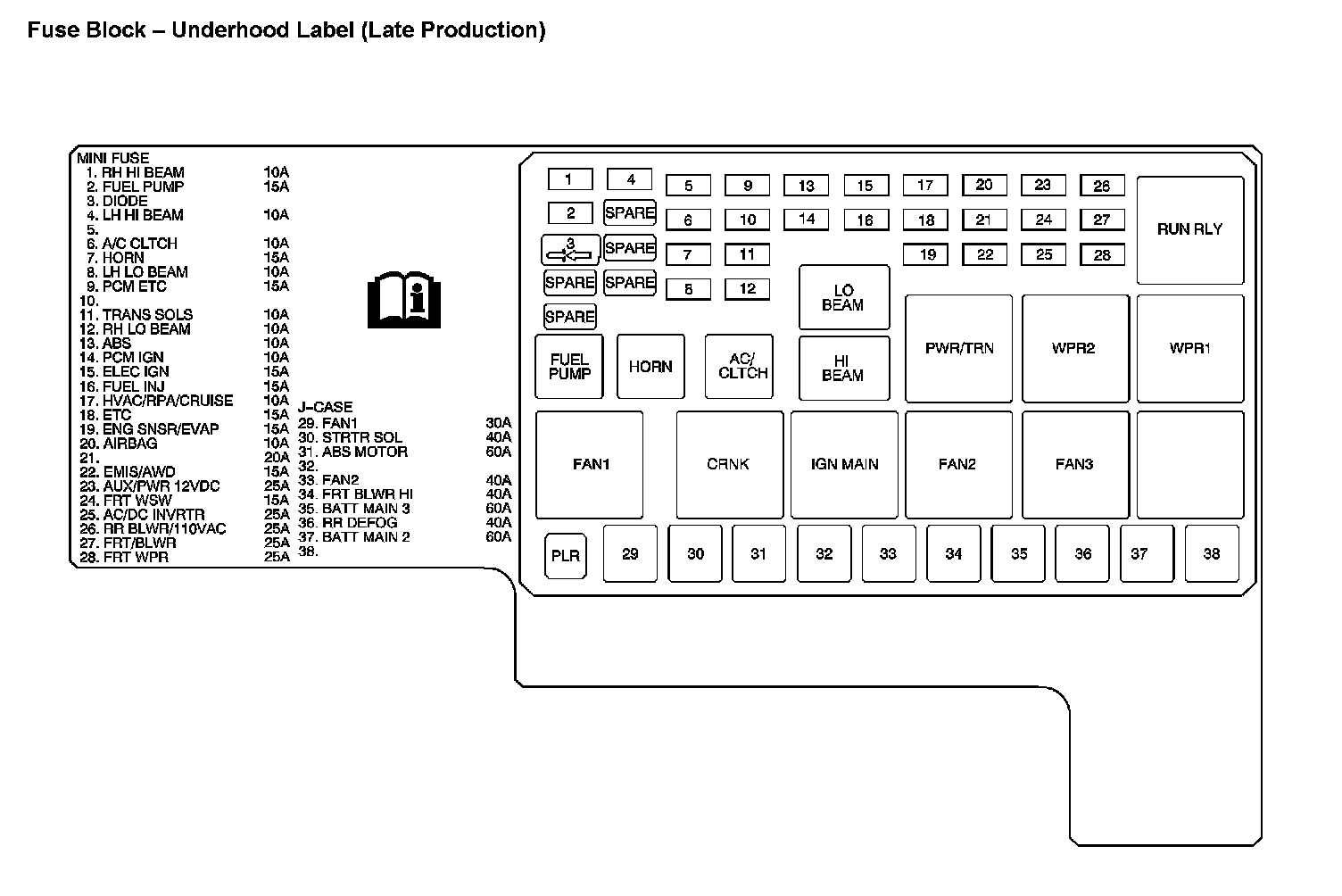

Location View:

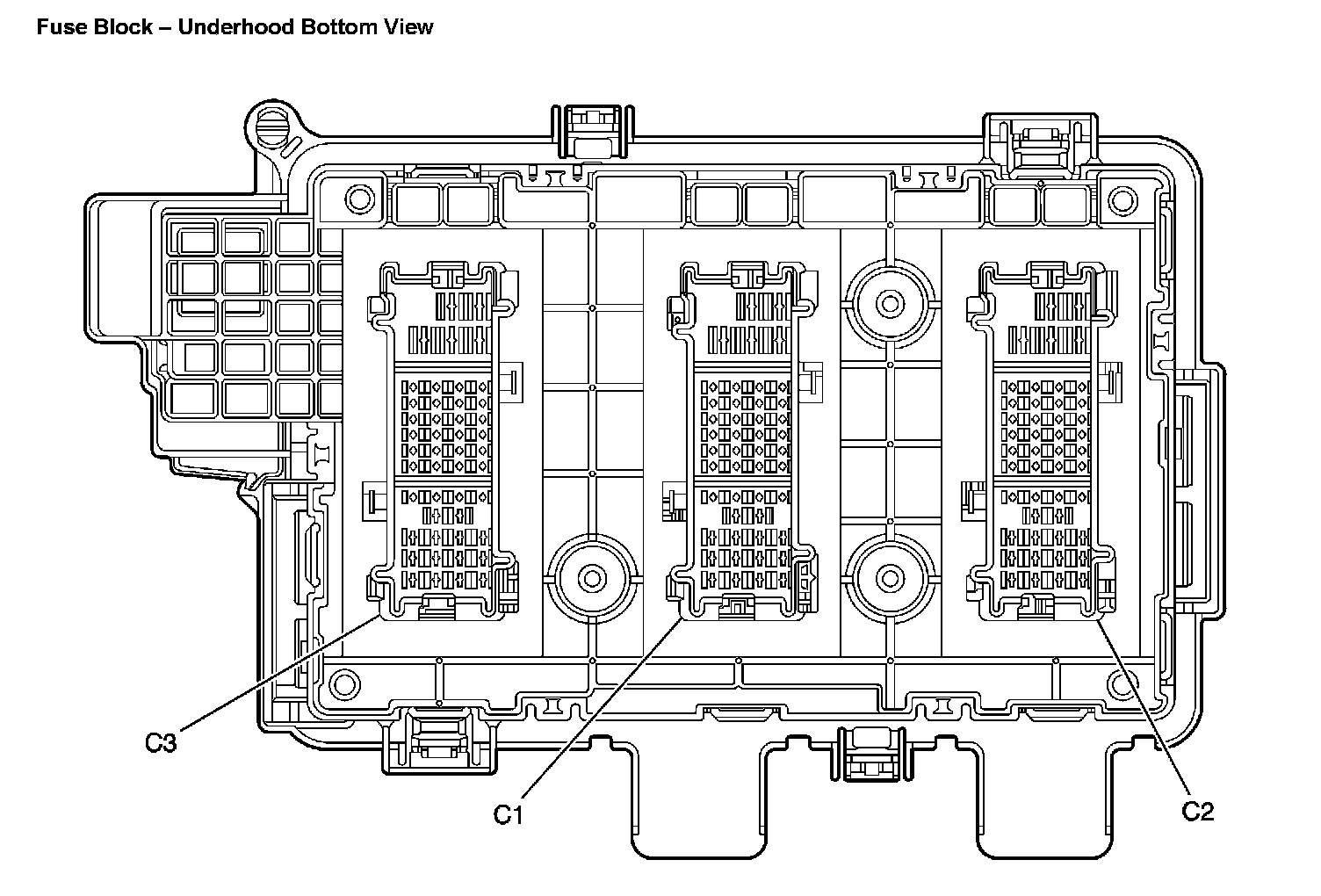

Location View:
