Home >> Buick >> 2005 >> Terraza AWD V6-3.5L VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

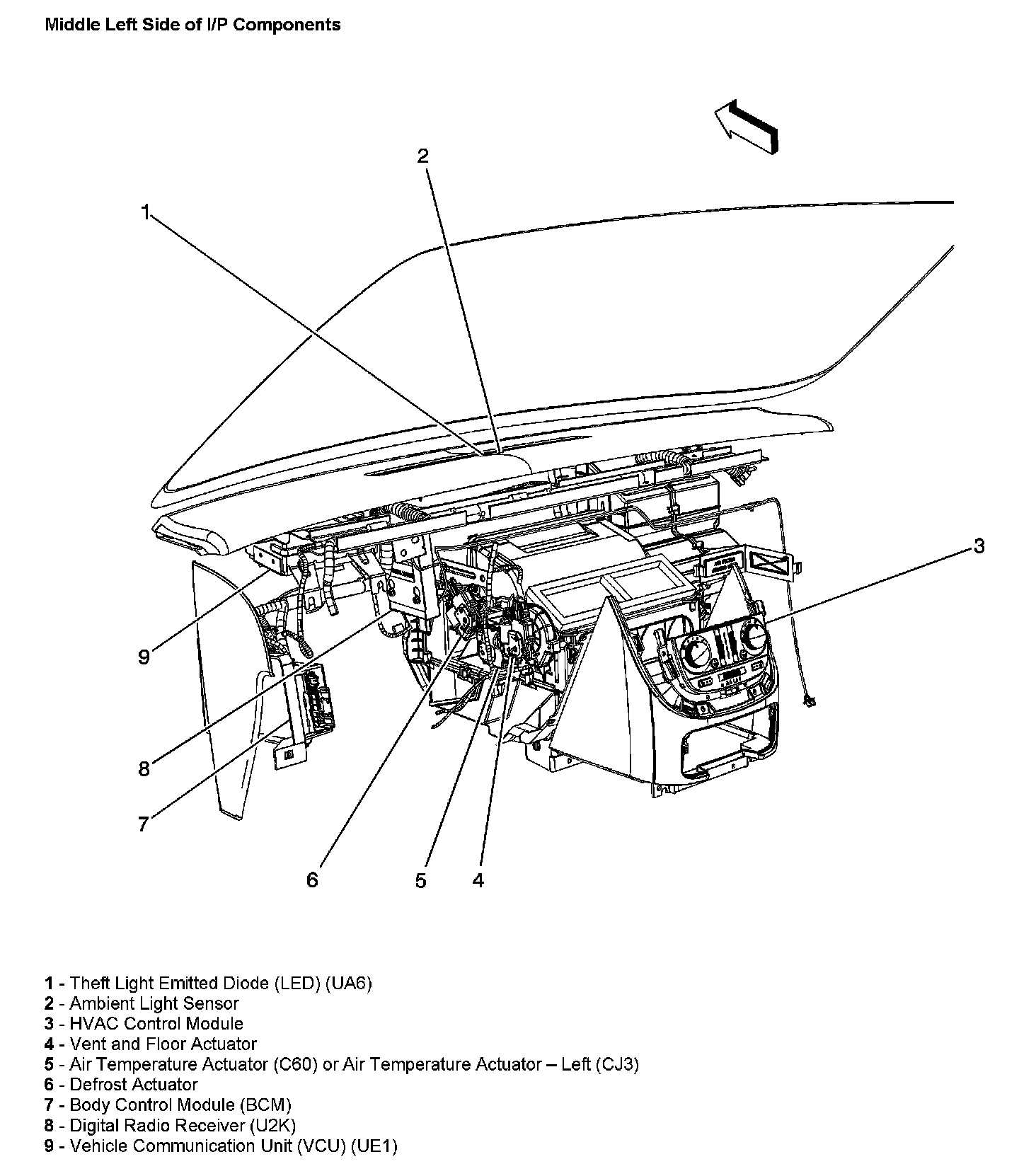

Middle Left Side Of I/P Components:
