Home >> Buick >> 2005 >> Rainier AWD L6-4.2L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> HVAC System - Manual >> HVAC Control Module C1

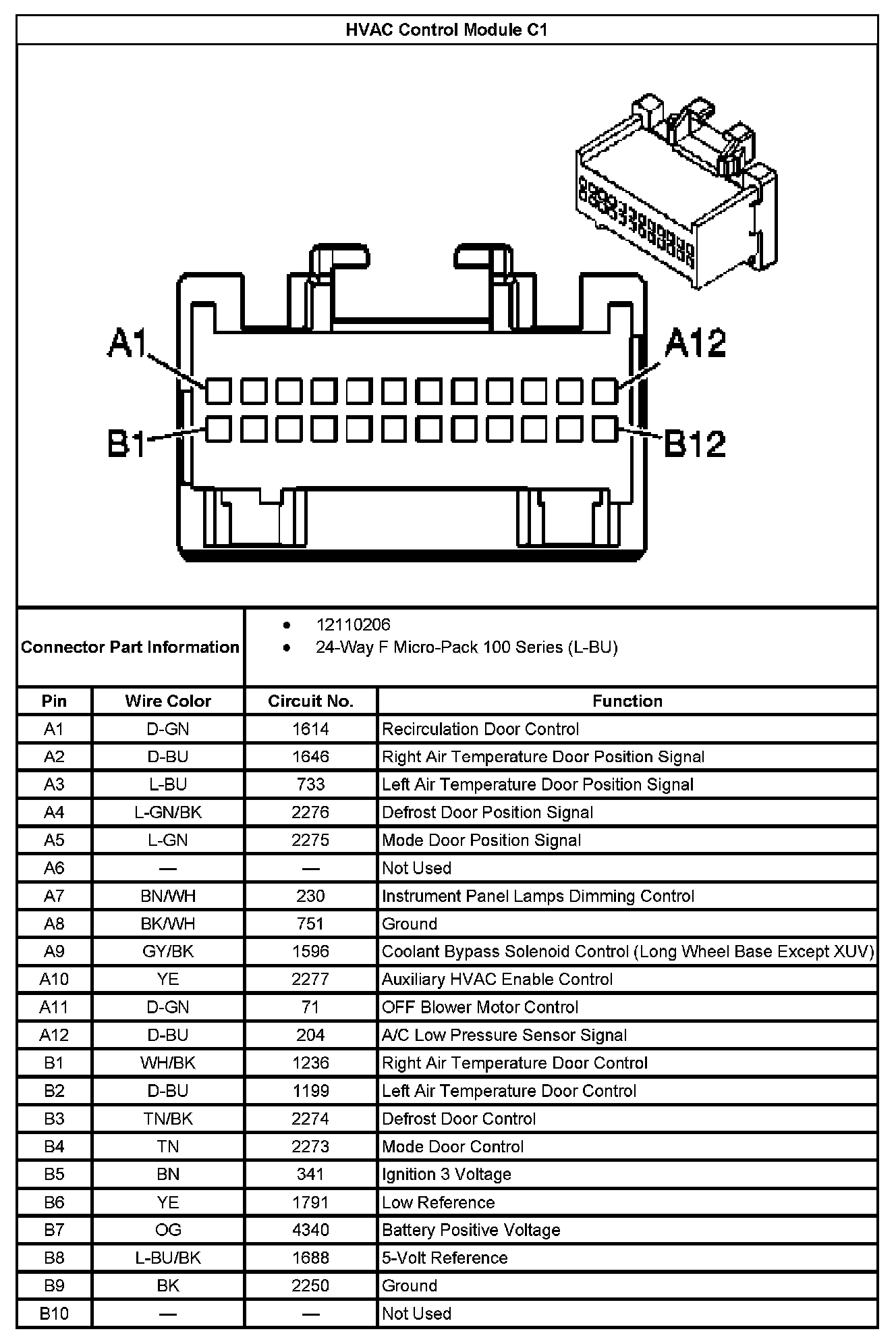

HVAC Control Module C1

HVAC Control Module C1 Part 1:



HVAC Control Module C1 Part 2:
