Buick
>>
2005
>>
Century V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Master Switch
Window Master Switch

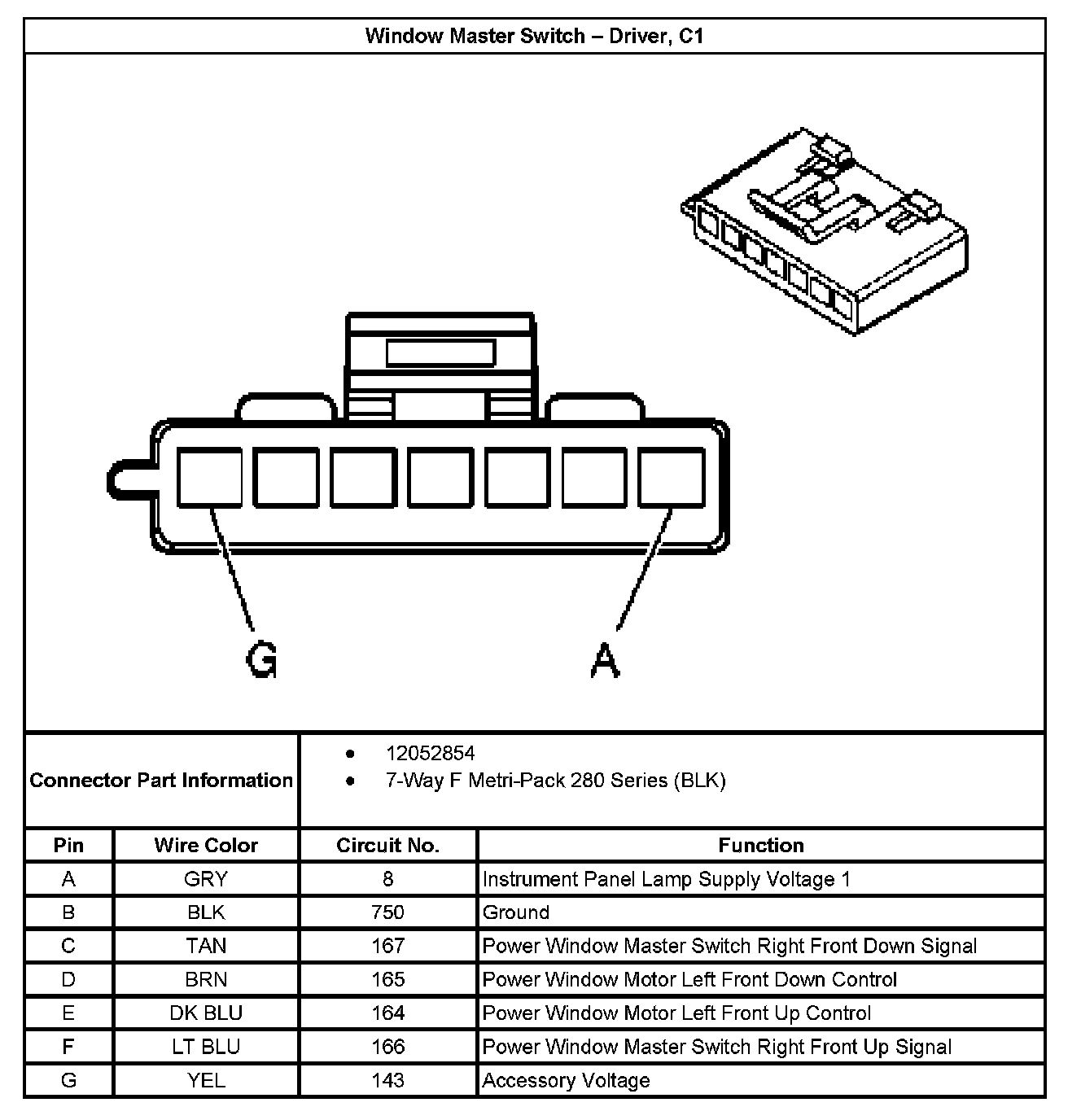

Window Master Switch - Driver, C1:

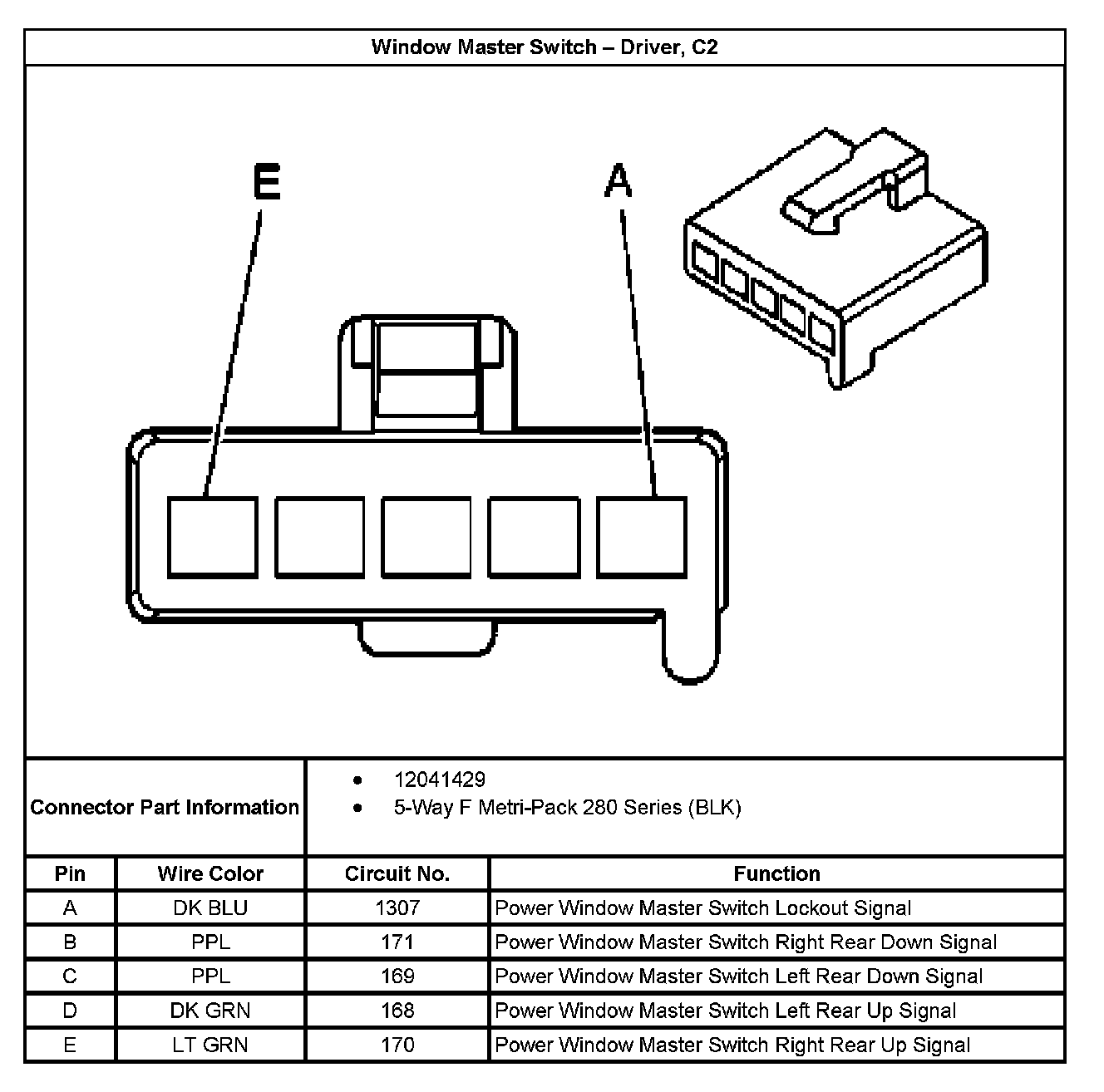

Window Master Switch - Driver, C2:
