Normal Scan Tool Data Values

Body Control Module (BCM):



Instrumental Panel Cluster (IPC):



Powertrain Control Module (PCM):

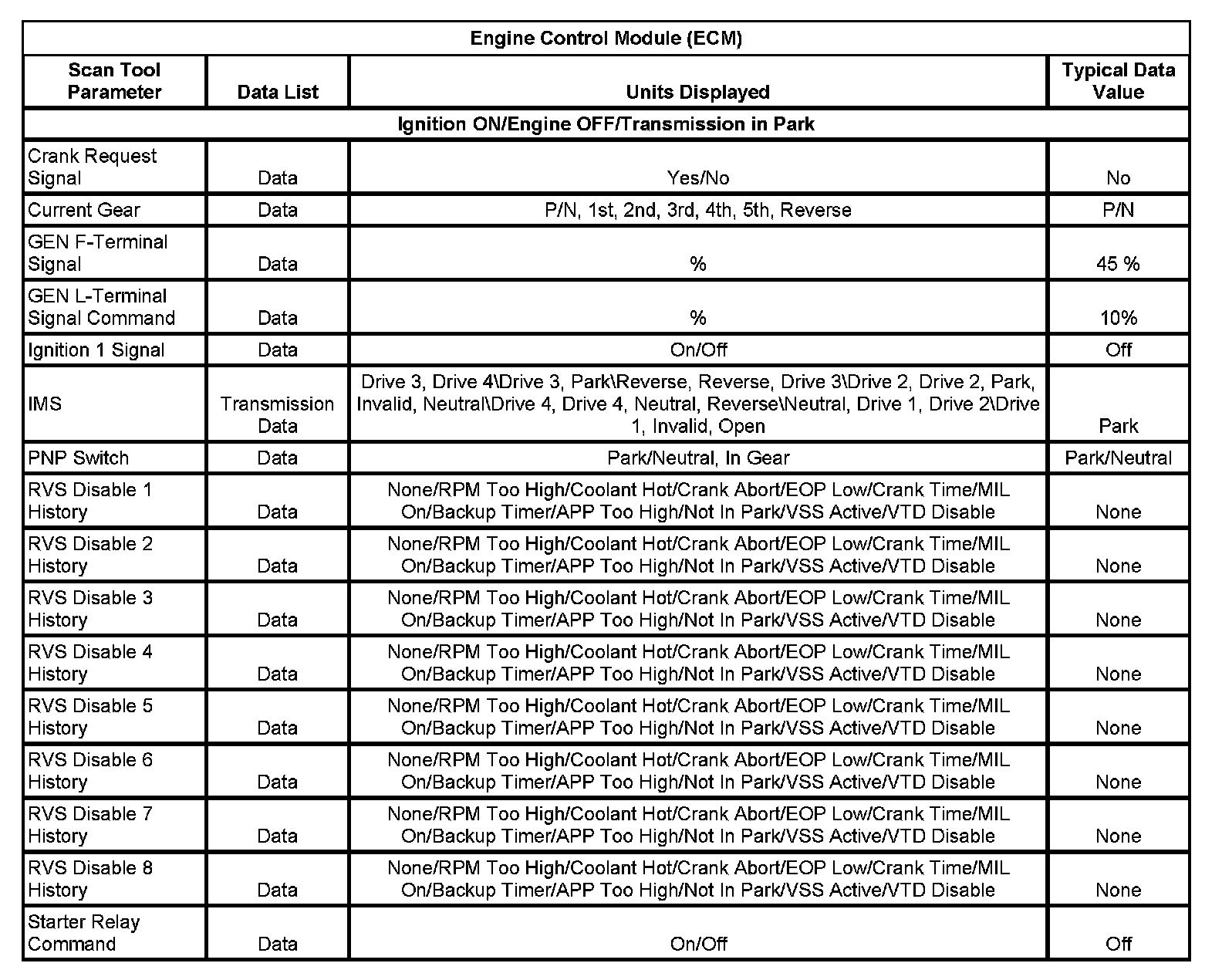

Engine Control Module (ECM):
