Home >> Buick >> 2005 >> Allure (CANADA) V6-3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations

Oxygen Sensor: Locations

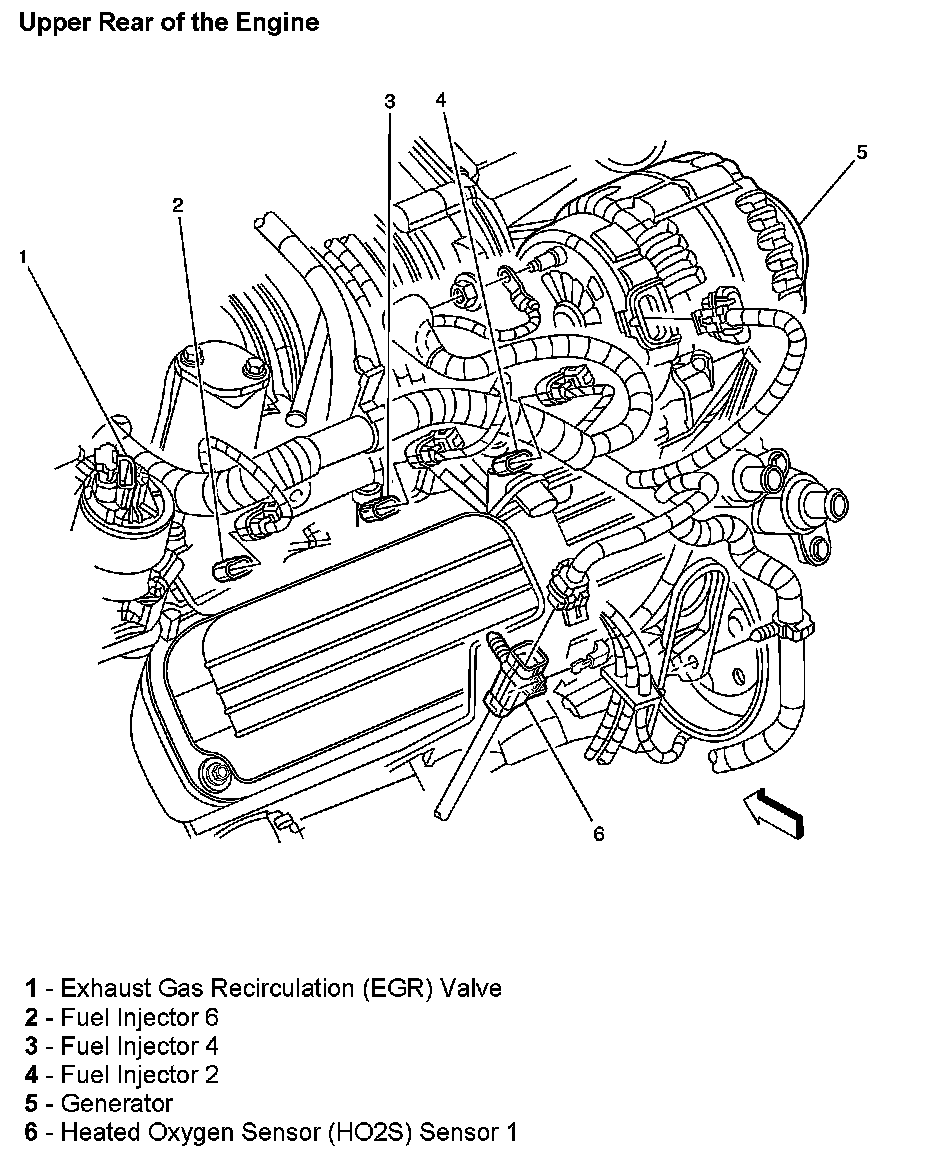

Upper Rear Of The Engine:

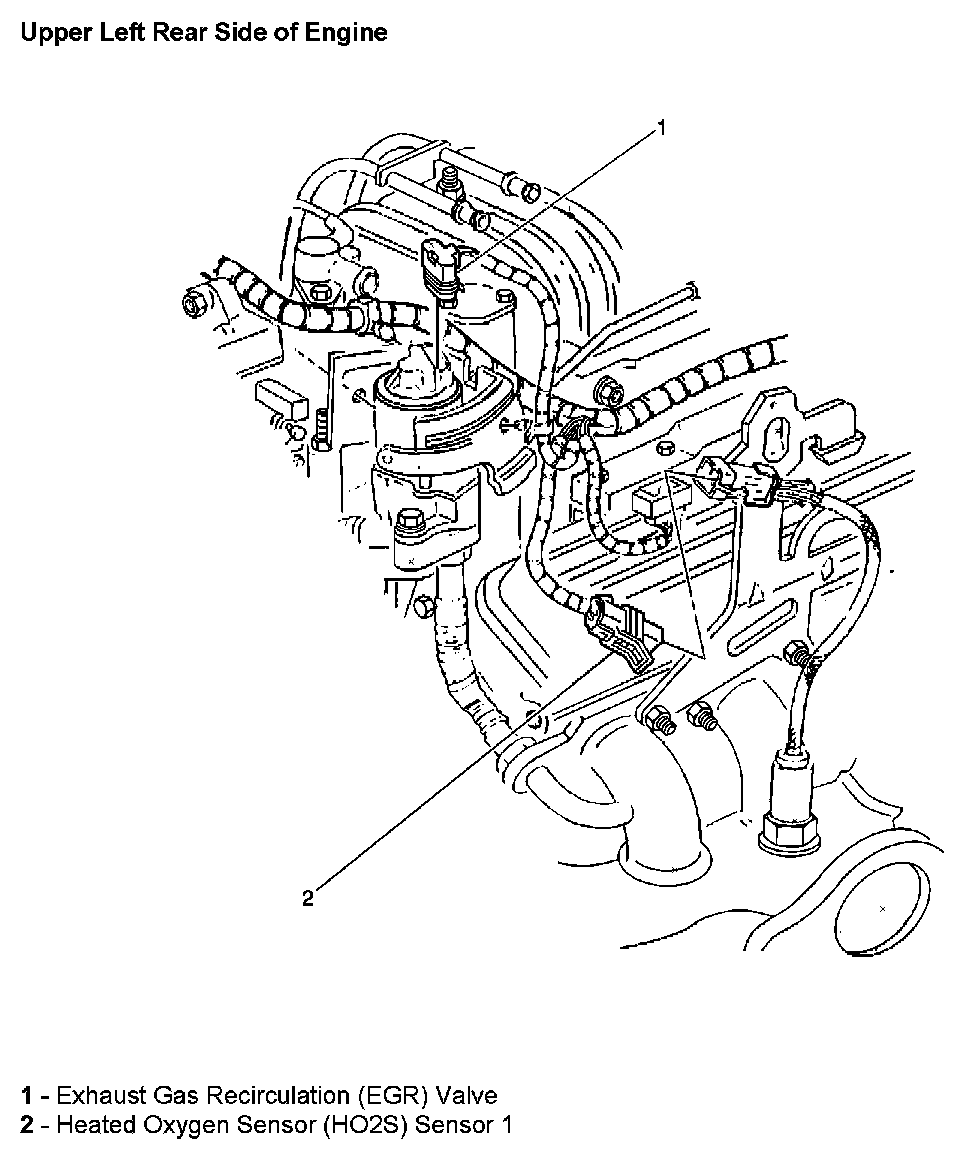

Upper Left Rear Side Of Engine:

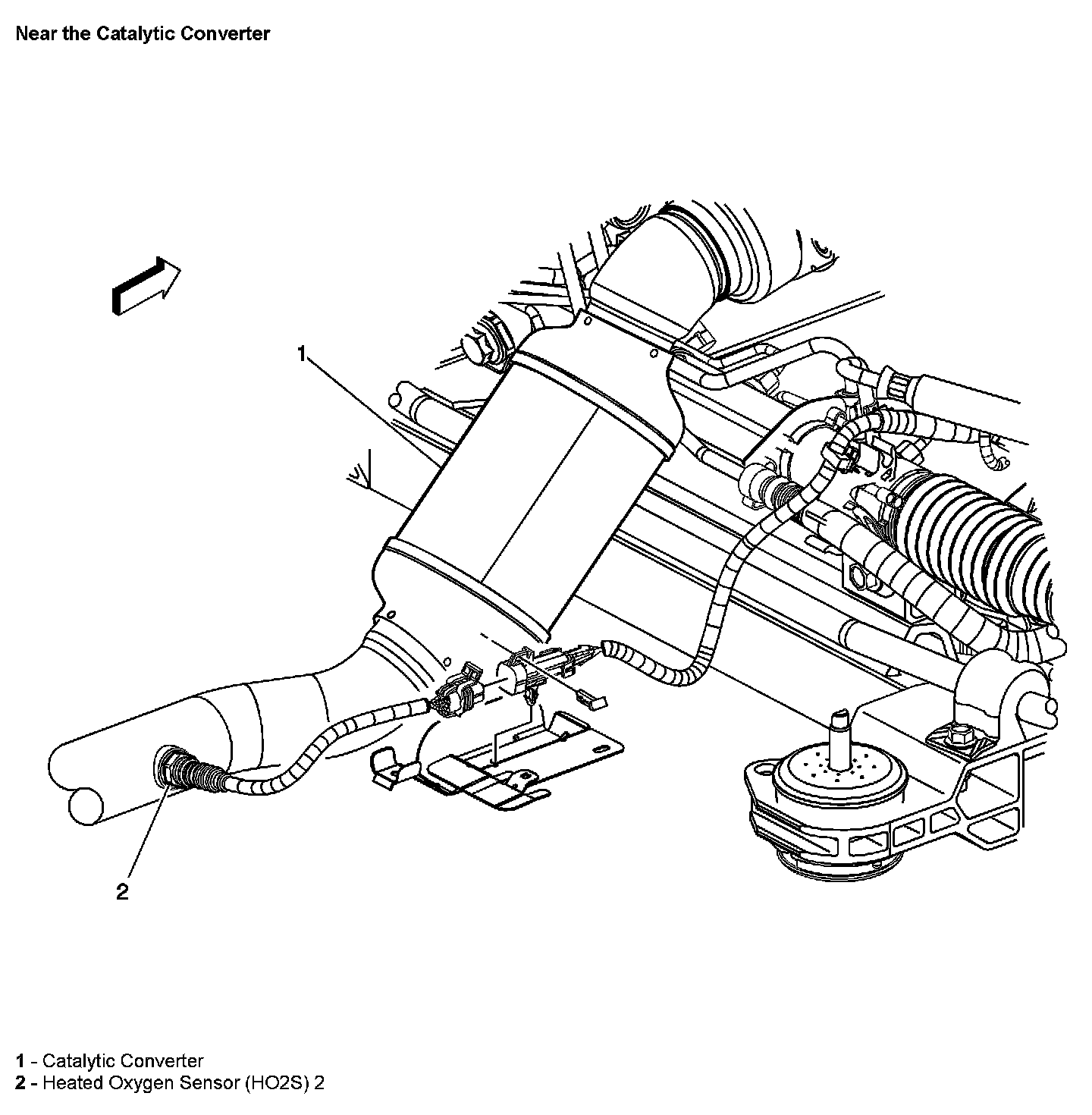

Near The Catalytic Converter:



Rear Of The Engine:

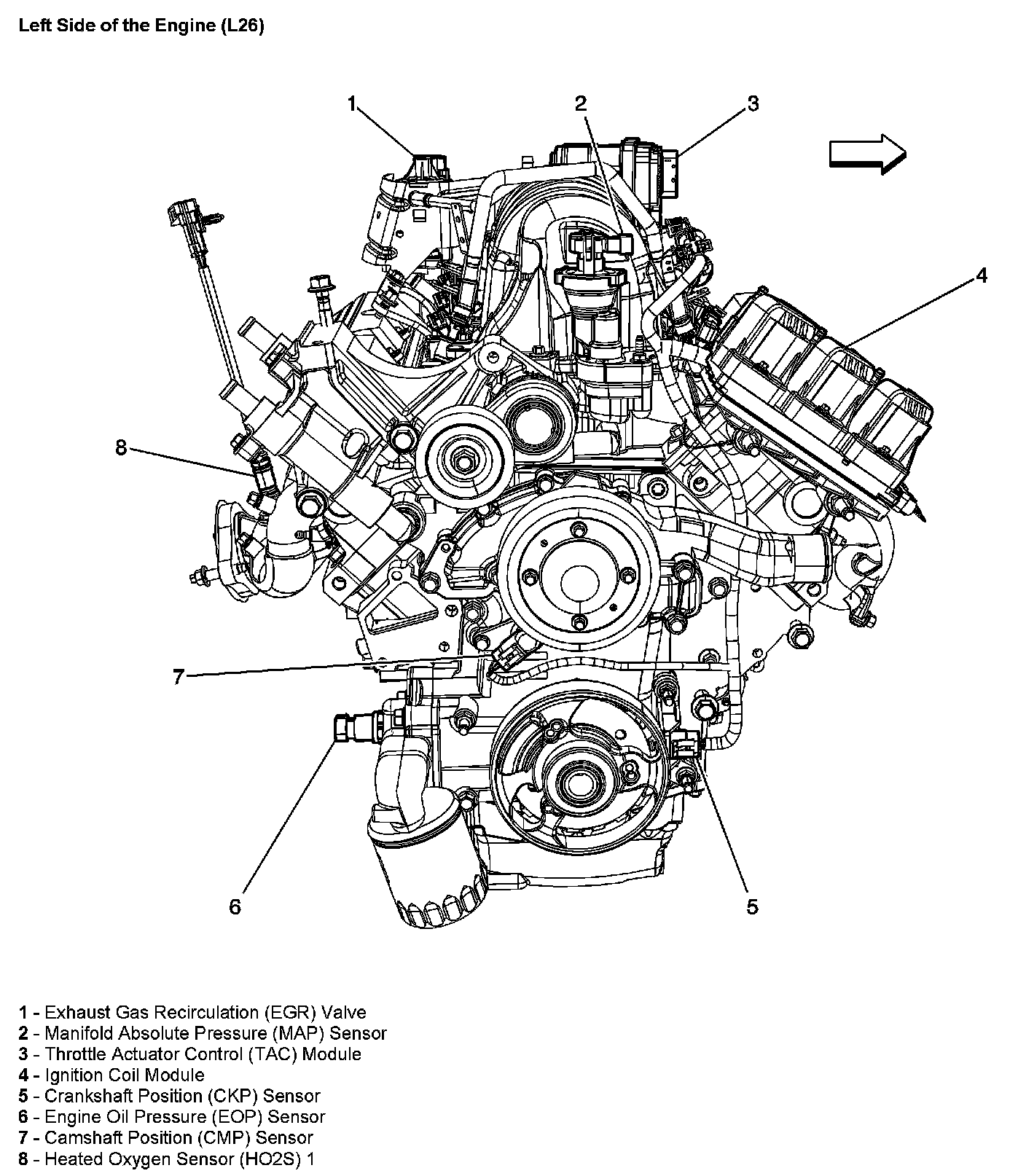

Left Side Of The Engine:
