Transmission Internal Mode Switch

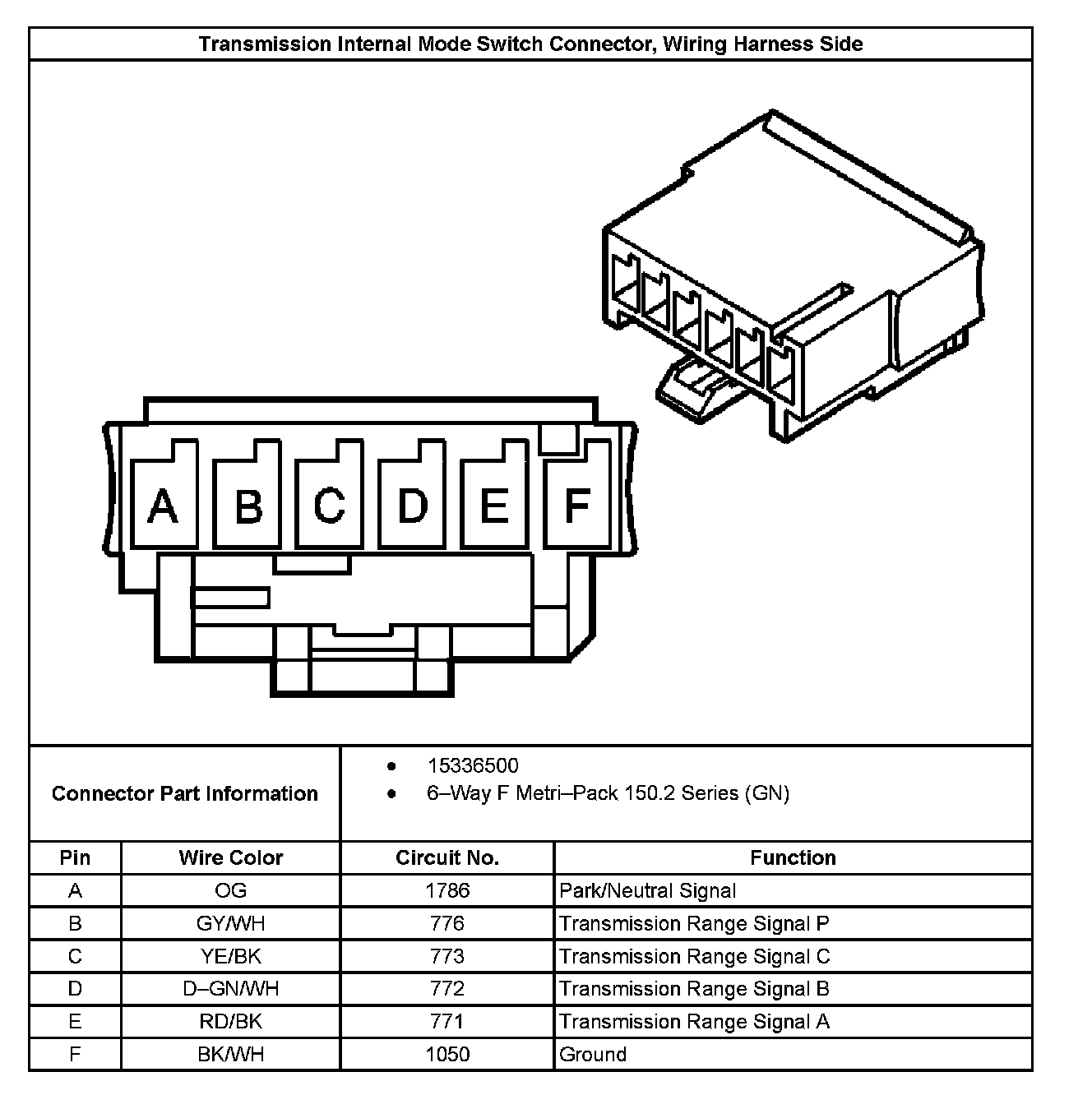

Transmission Internal Mode Switch Connector End View, Wiring Harness Side:
