Home
>>
Buick
>>
2005
>>
Allure (CANADA) V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>
Inflatable Restraint Side Impact Sensor
Inflatable Restraint Side Impact Sensor

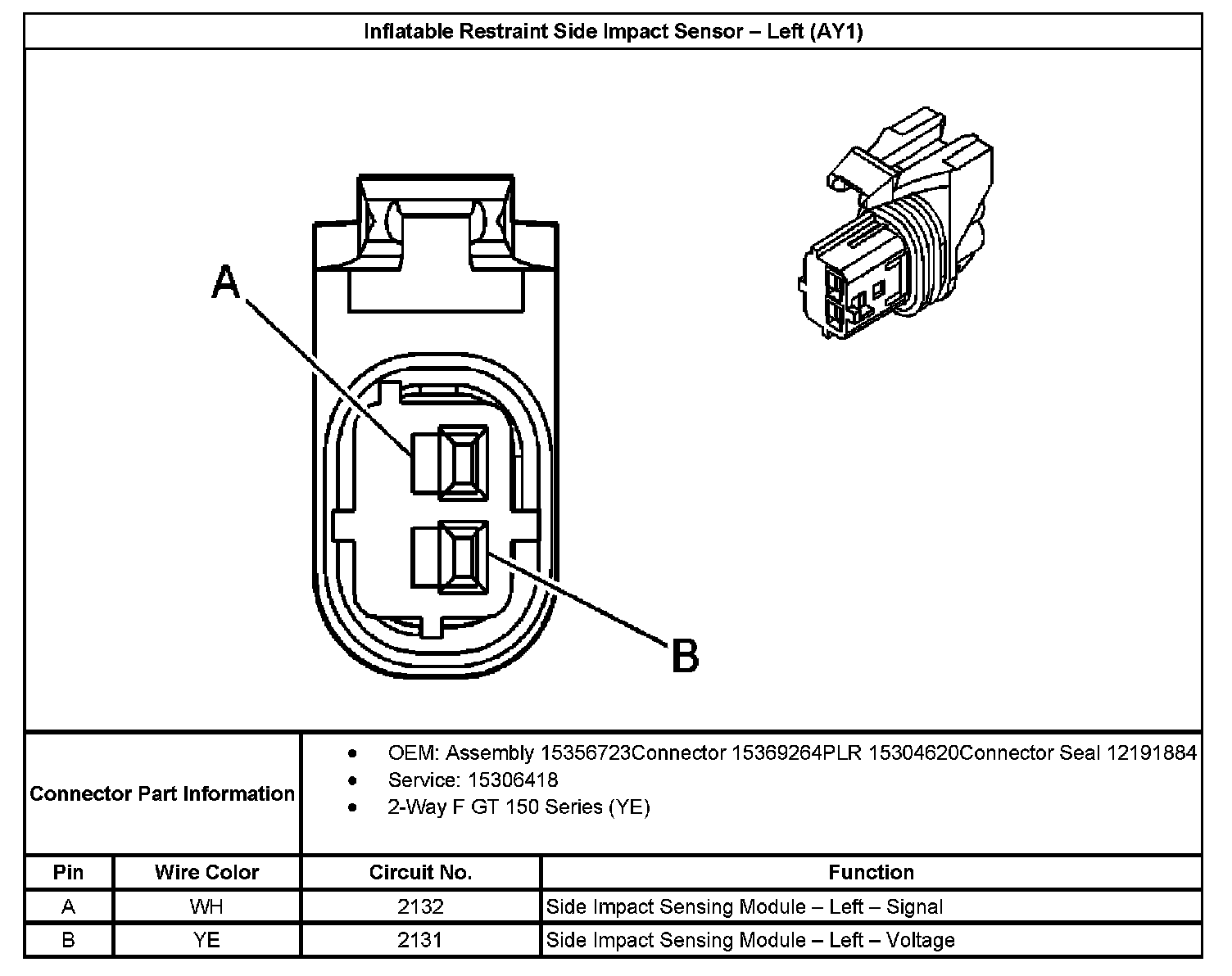

Inflatable Restraint Side Impact Sensor - Left (With RPO Code AY1):

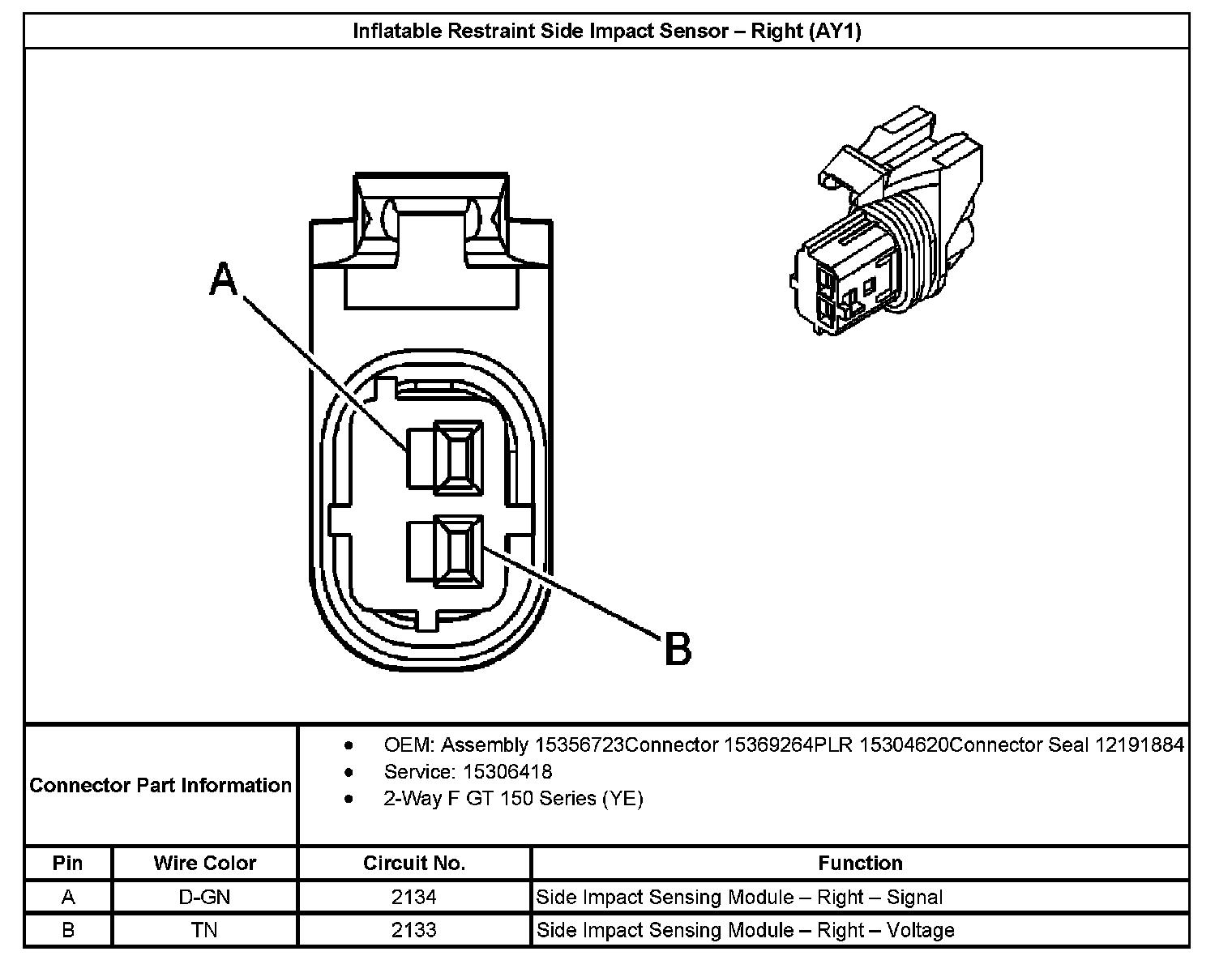

Inflatable Restraint Side Impact Sensor - Right (With RPO Code AY1):
