LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
2005
>>
Allure (CANADA) V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System

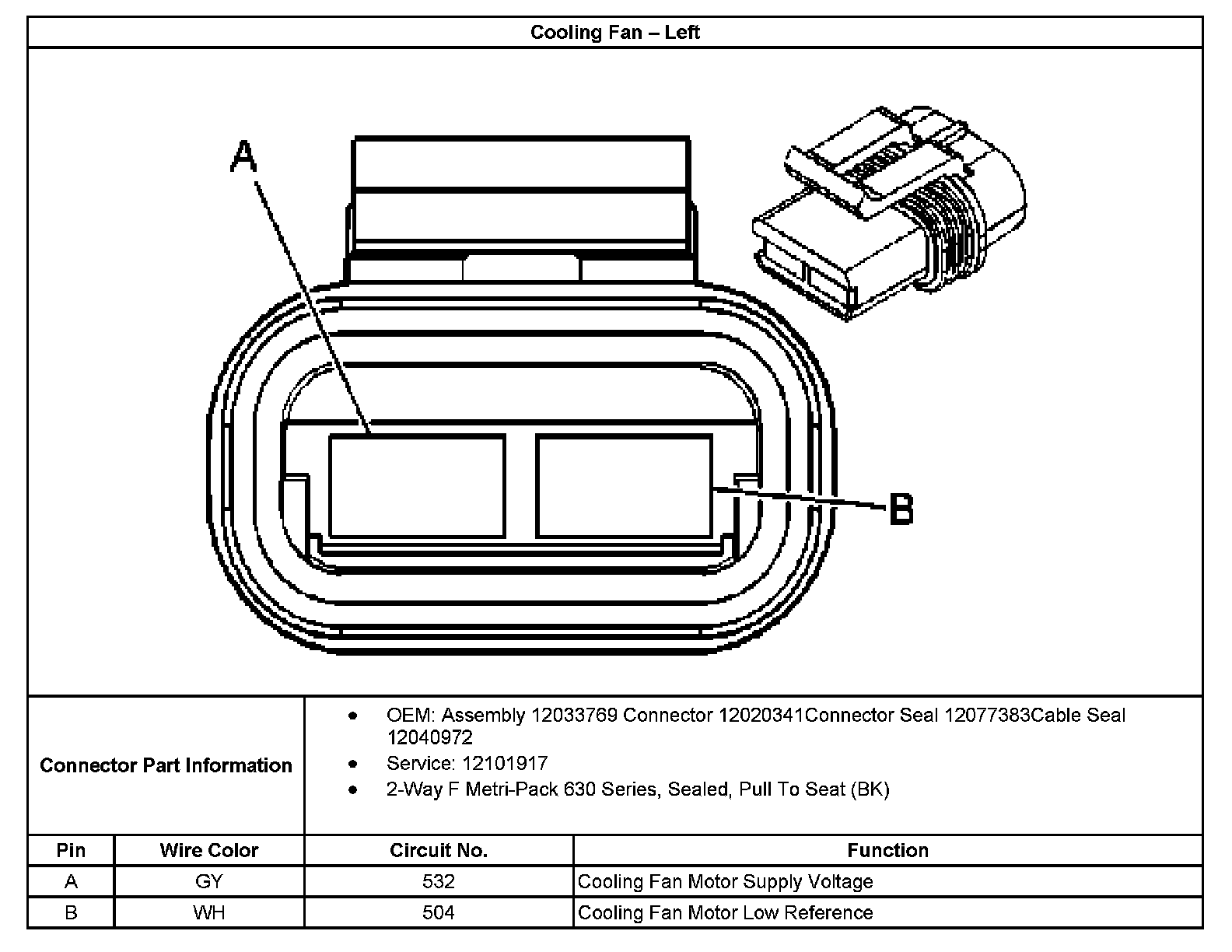

Cooling Fan - Left Connector End Views:

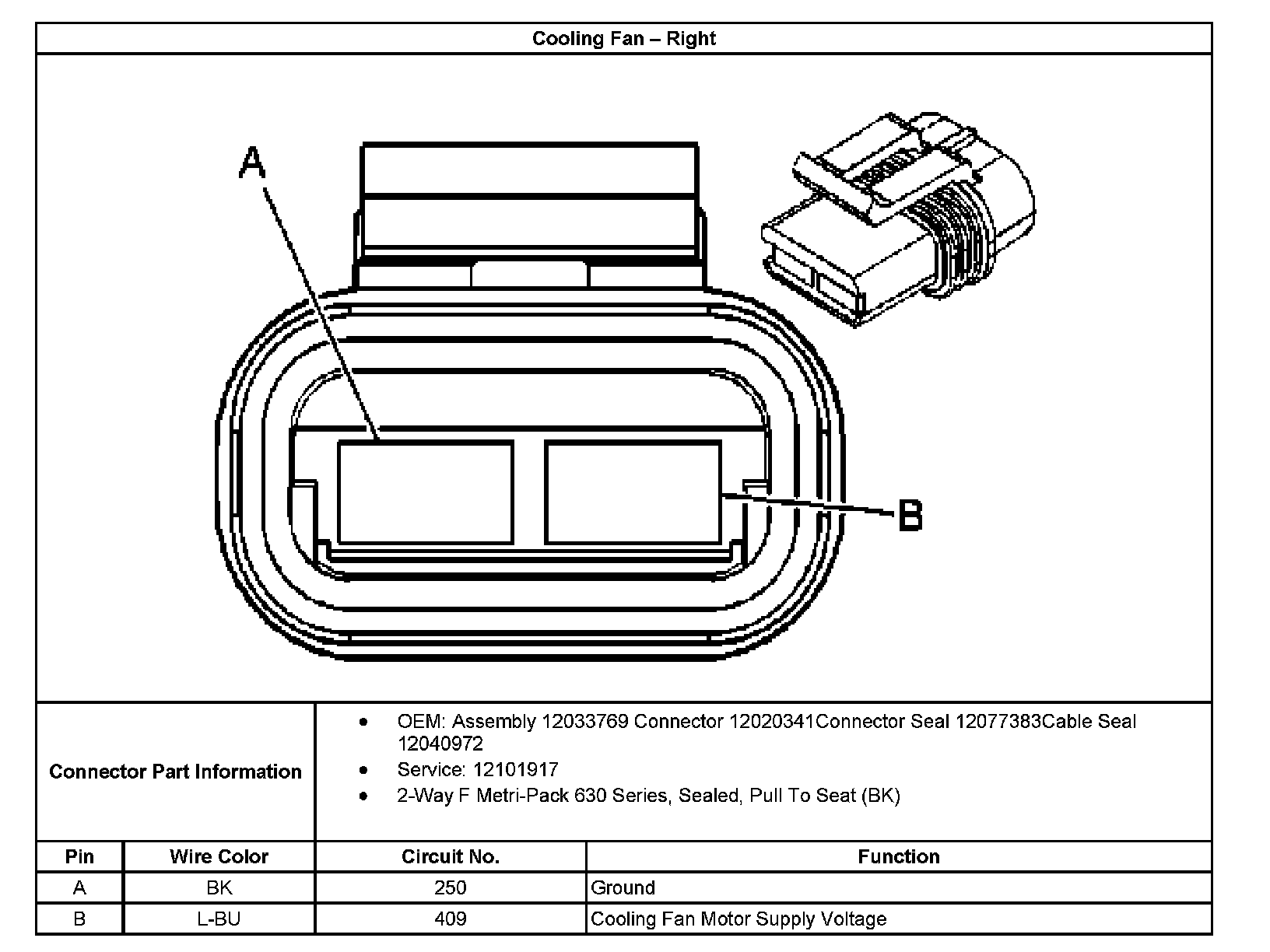

Cooling Fan - Right Connector End Views:
