Home >> Buick >> 2005 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Diagrams >> Components

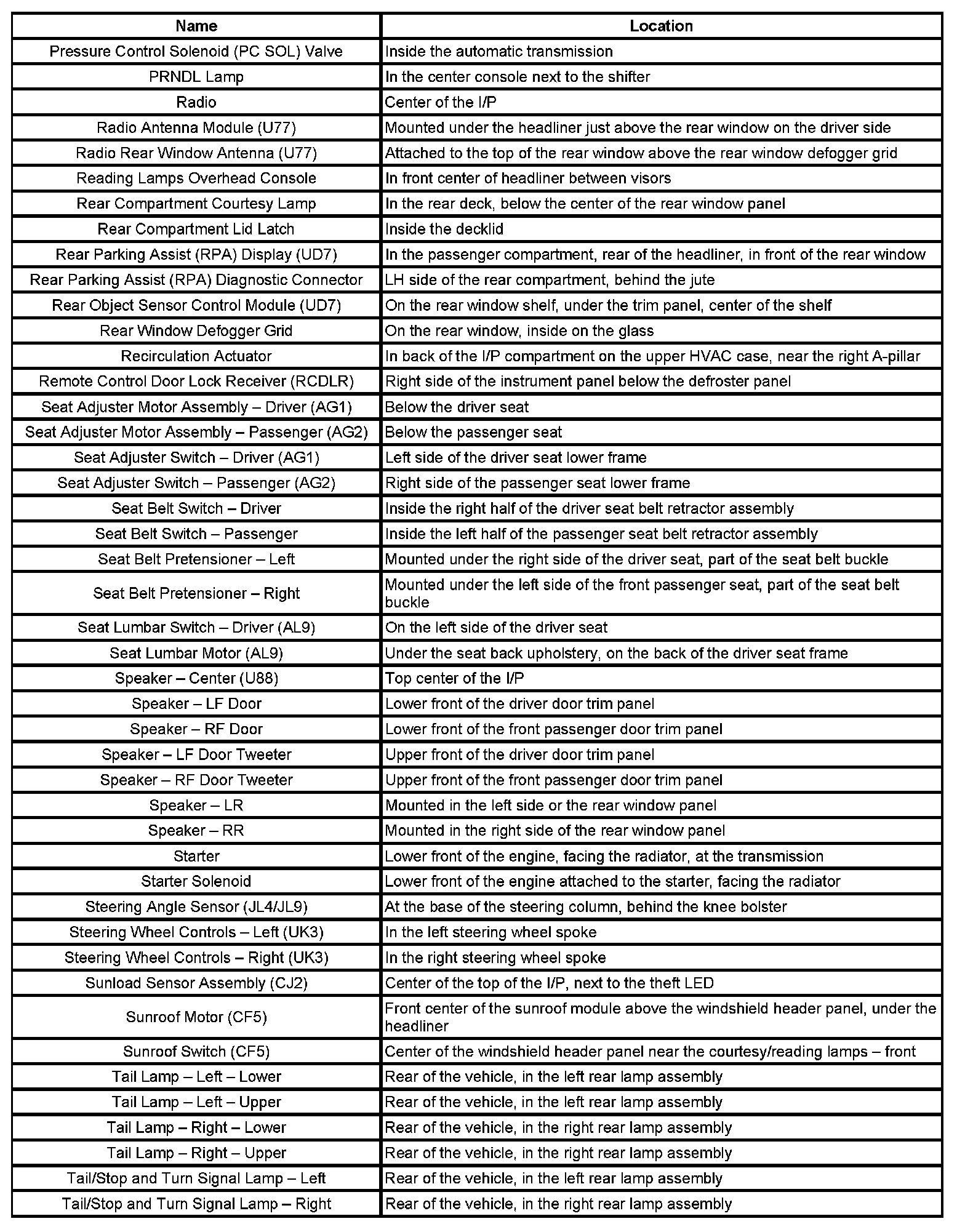

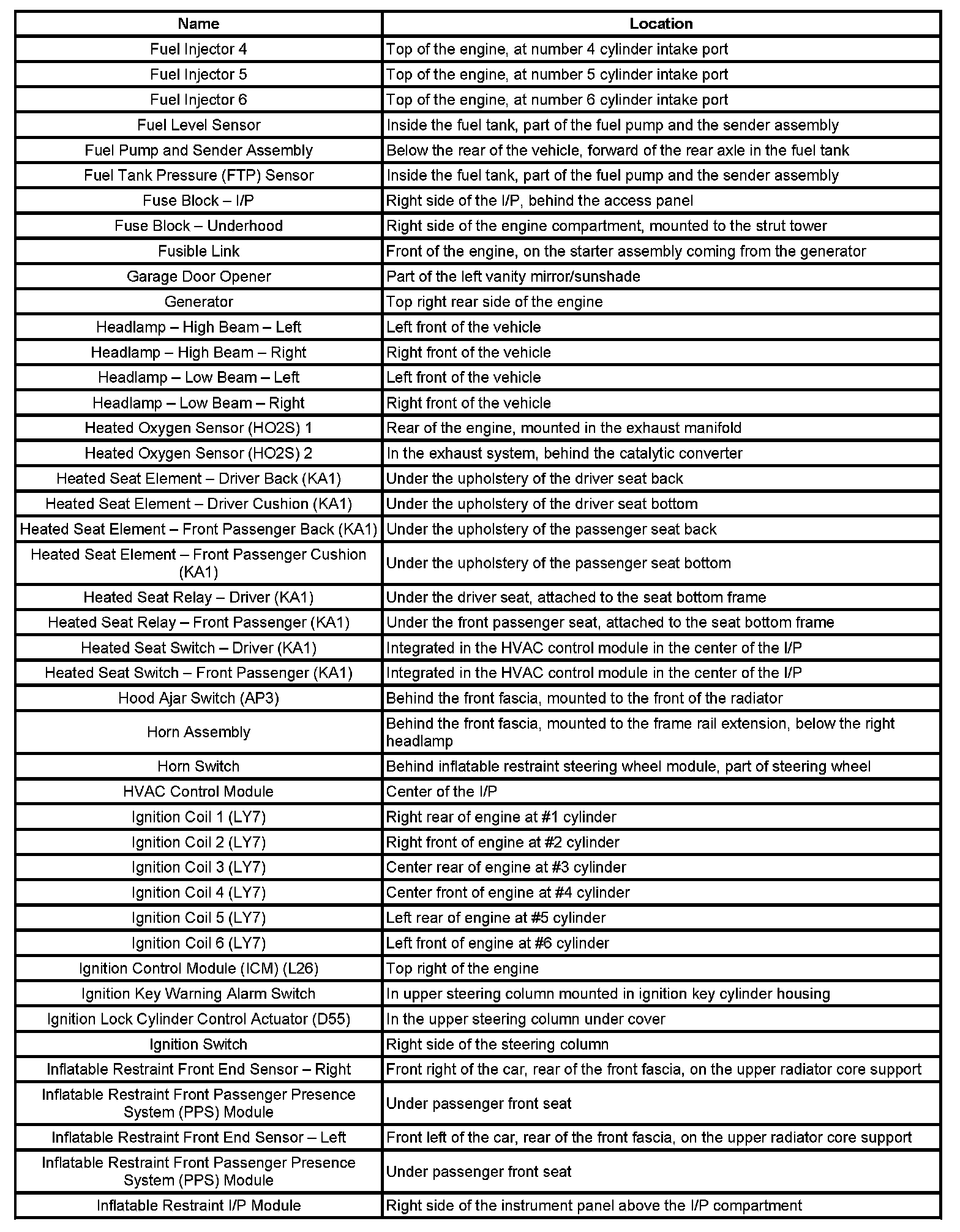

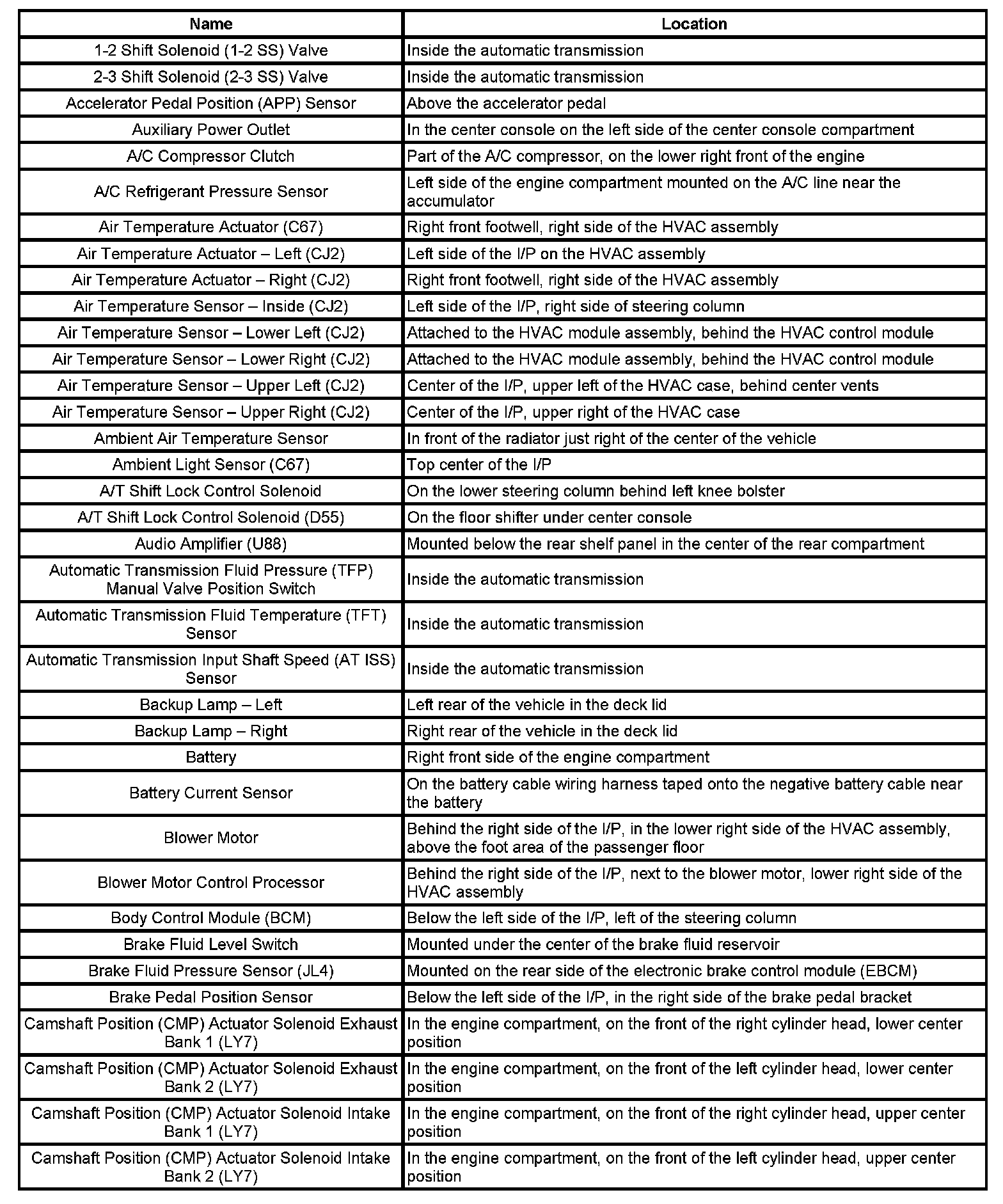

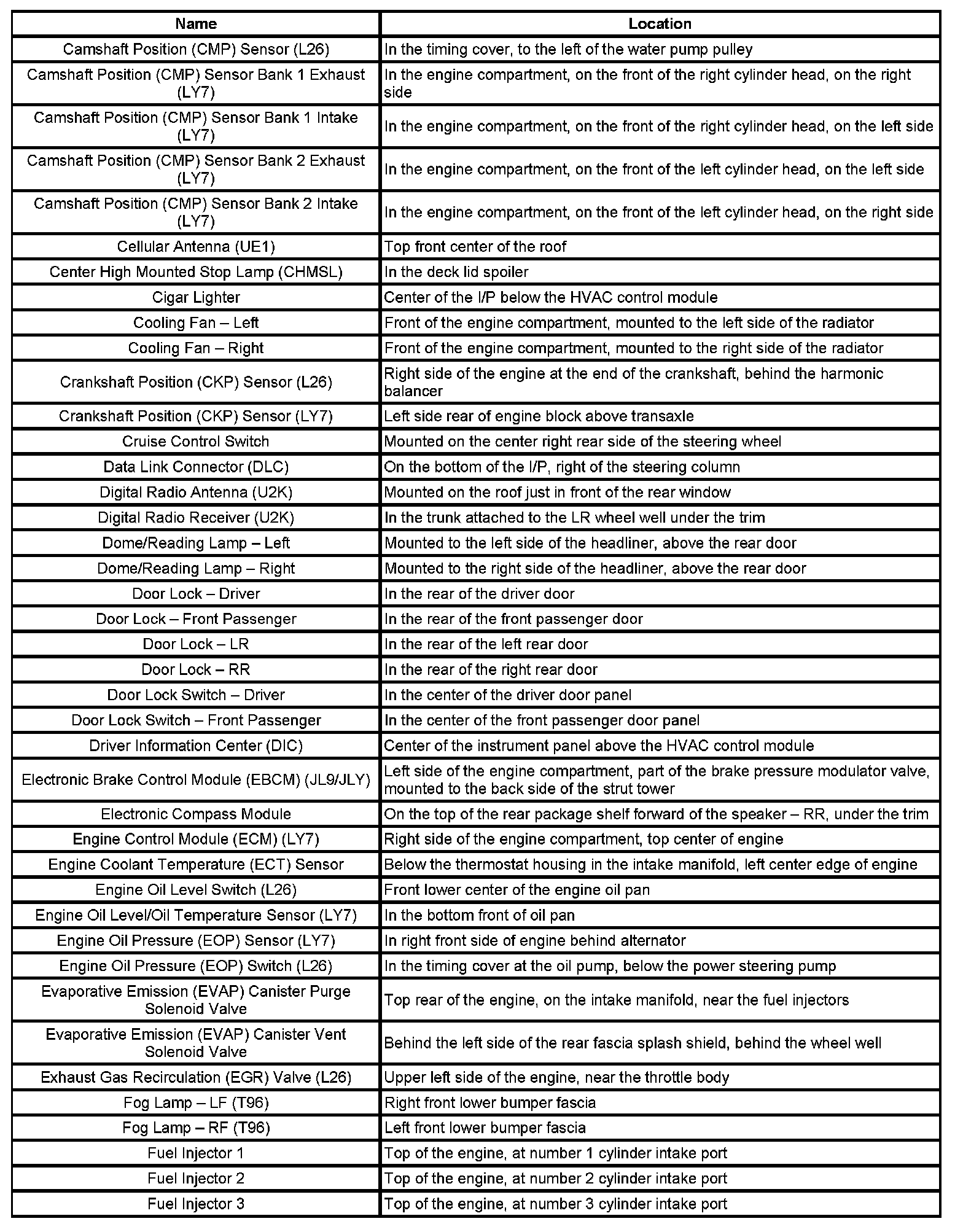

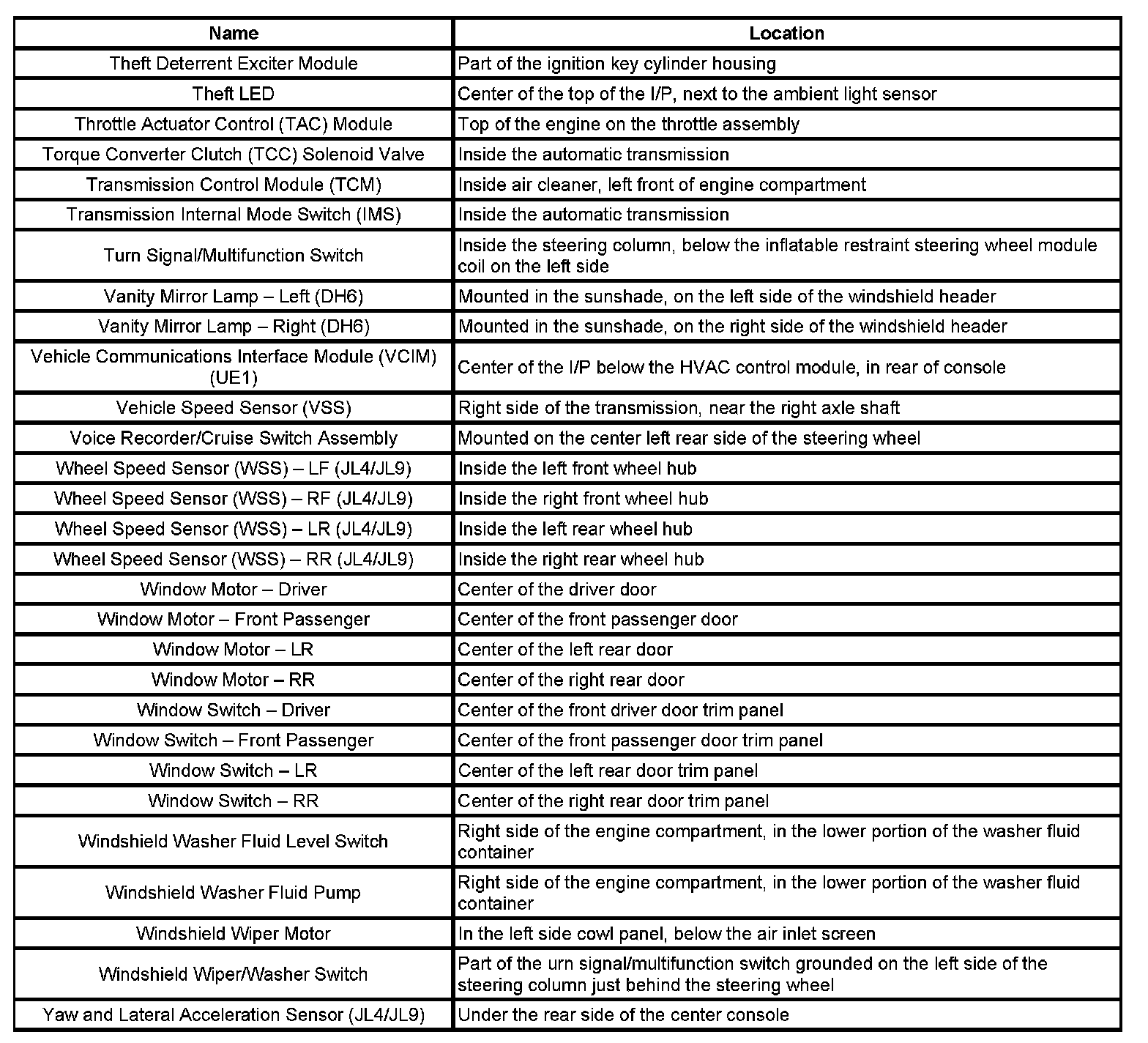

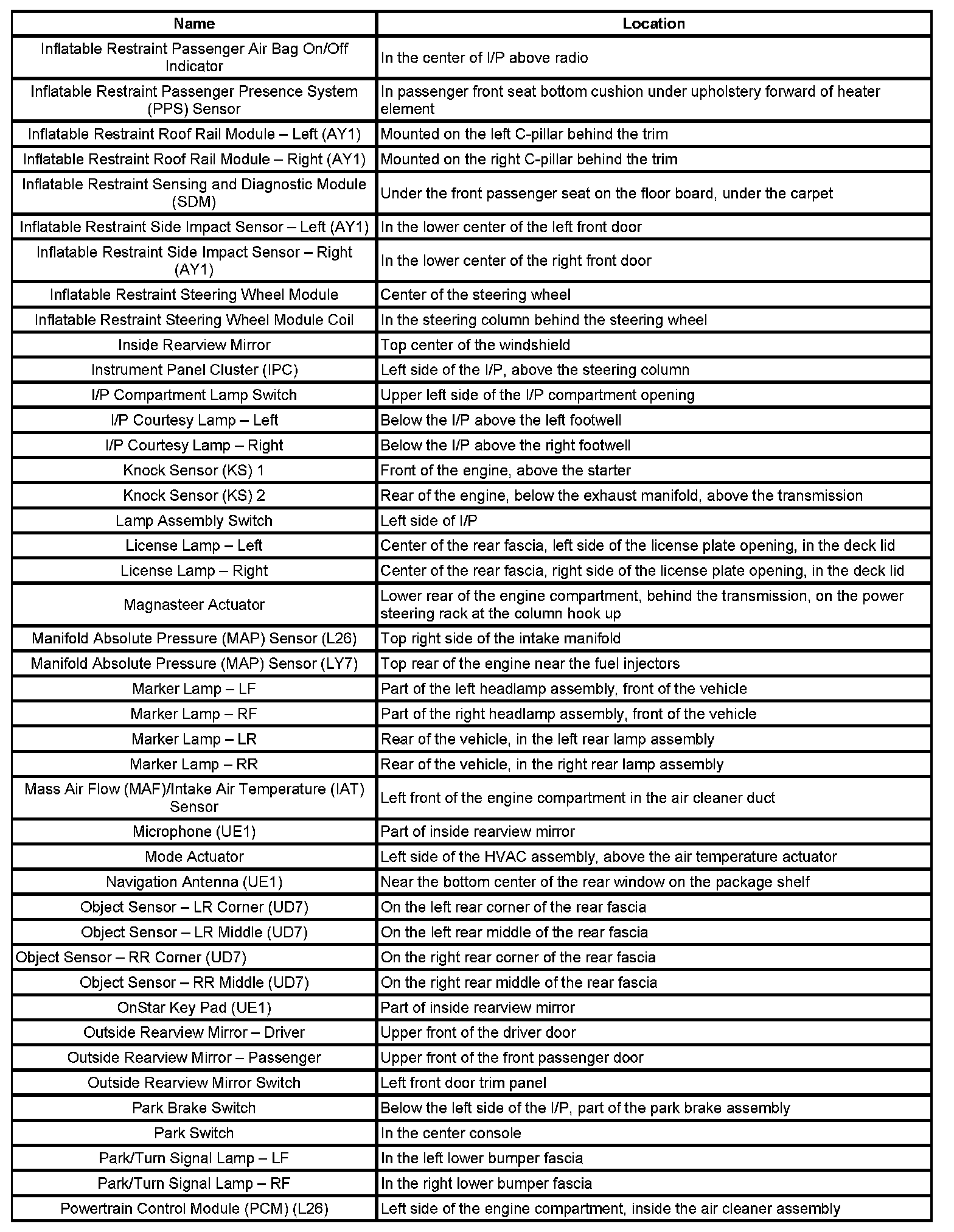

Components

1-2 - Ca:

Ca - Fu:

Fu - In:

In - Po:

Pr - Ta:

Th - Ya:
