Home >> Buick >> 2004 >> Rendezvous AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Center Console Fuse Block

Center Console Fuse Block

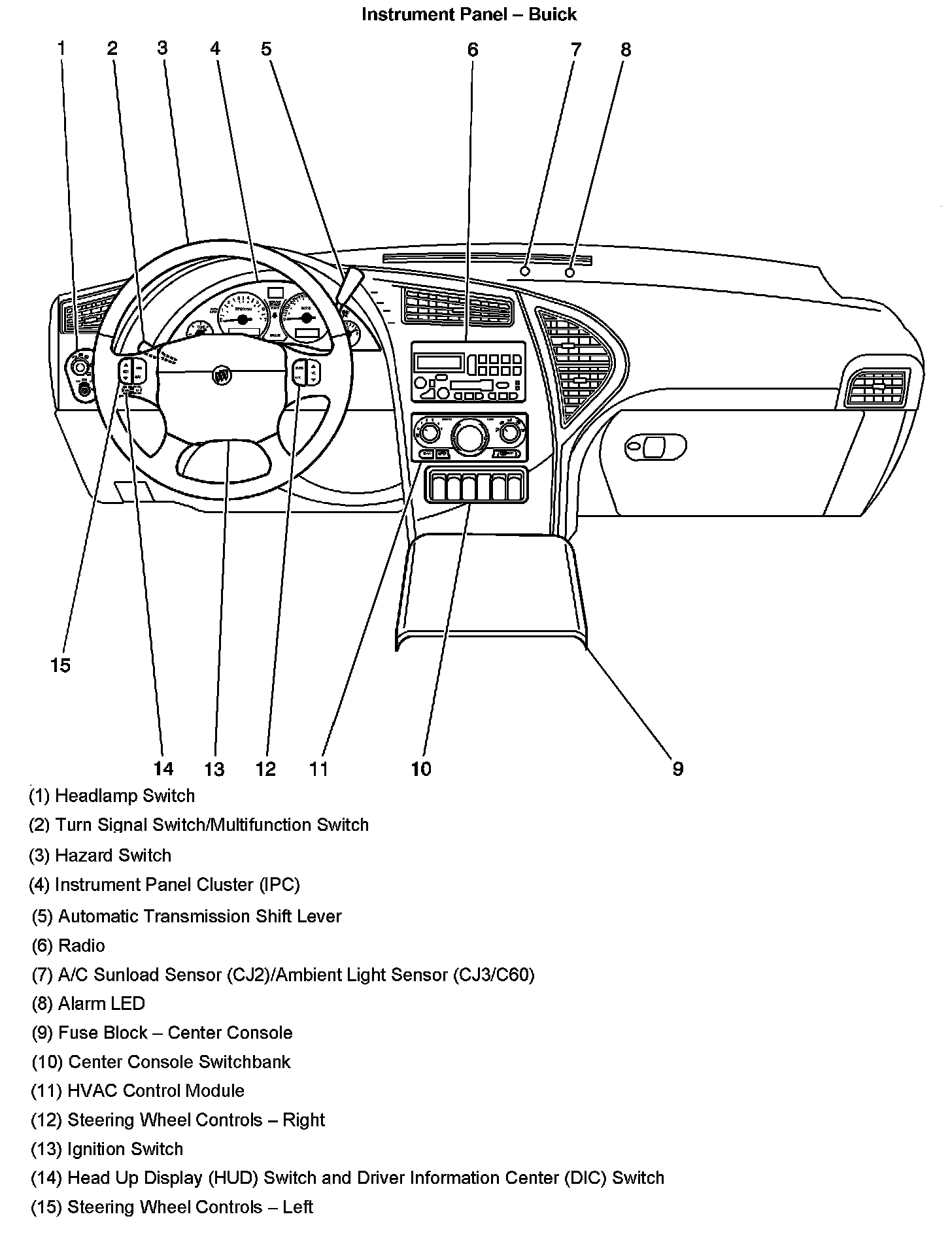

Instrument Panel:

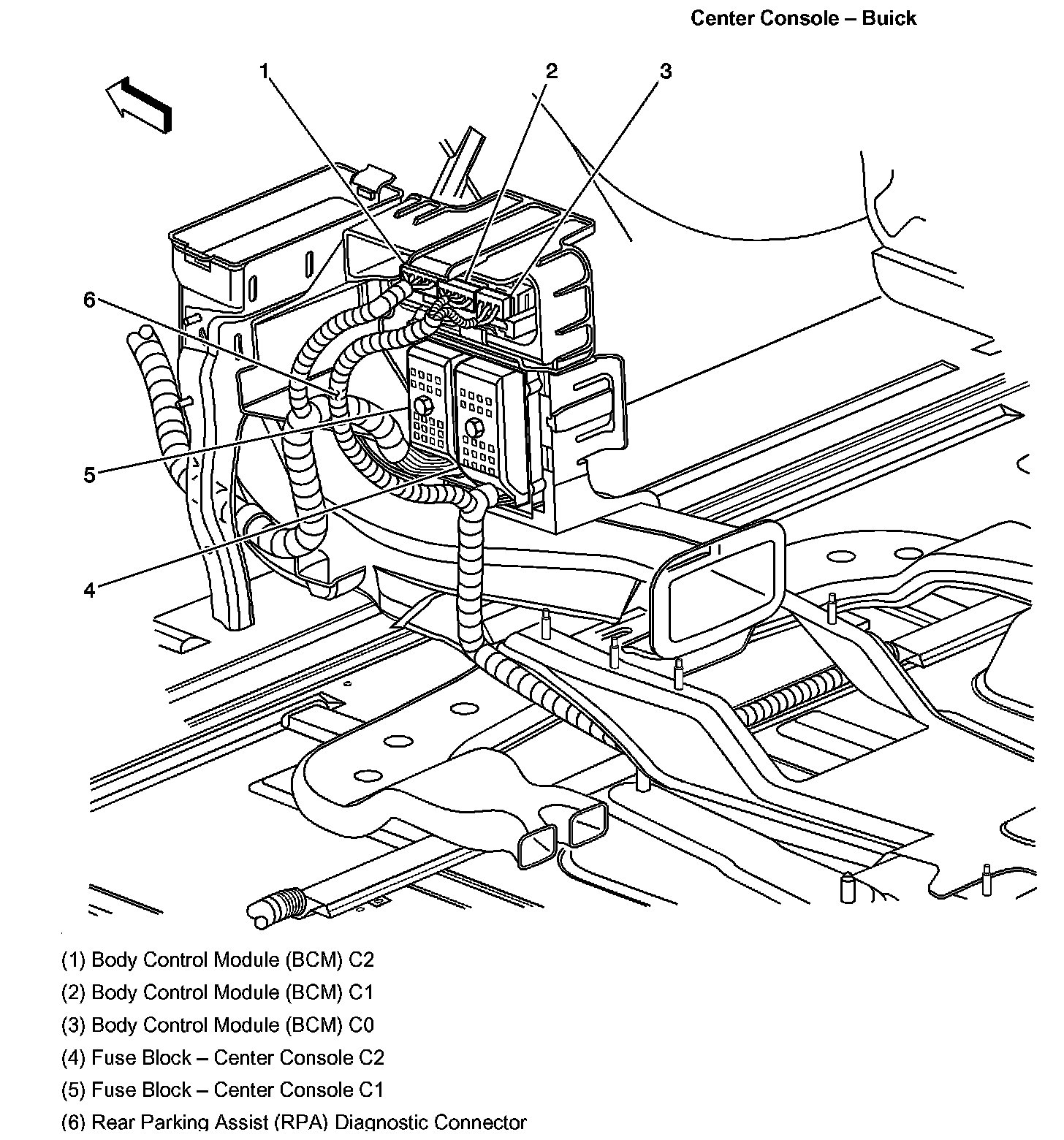

Center Console:
