Powertrain Control Module (PCM) Connector C2

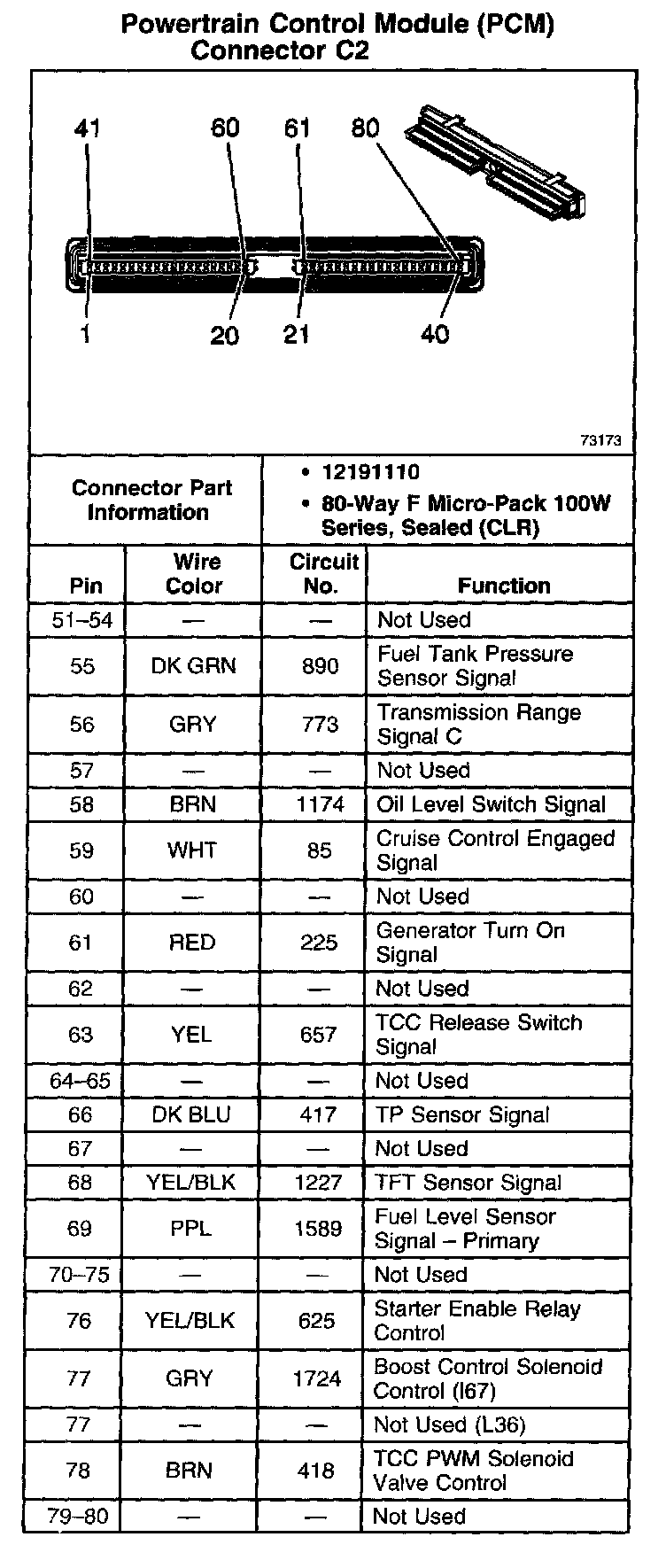

Powertrain Control Module (PCM) Connector C2:

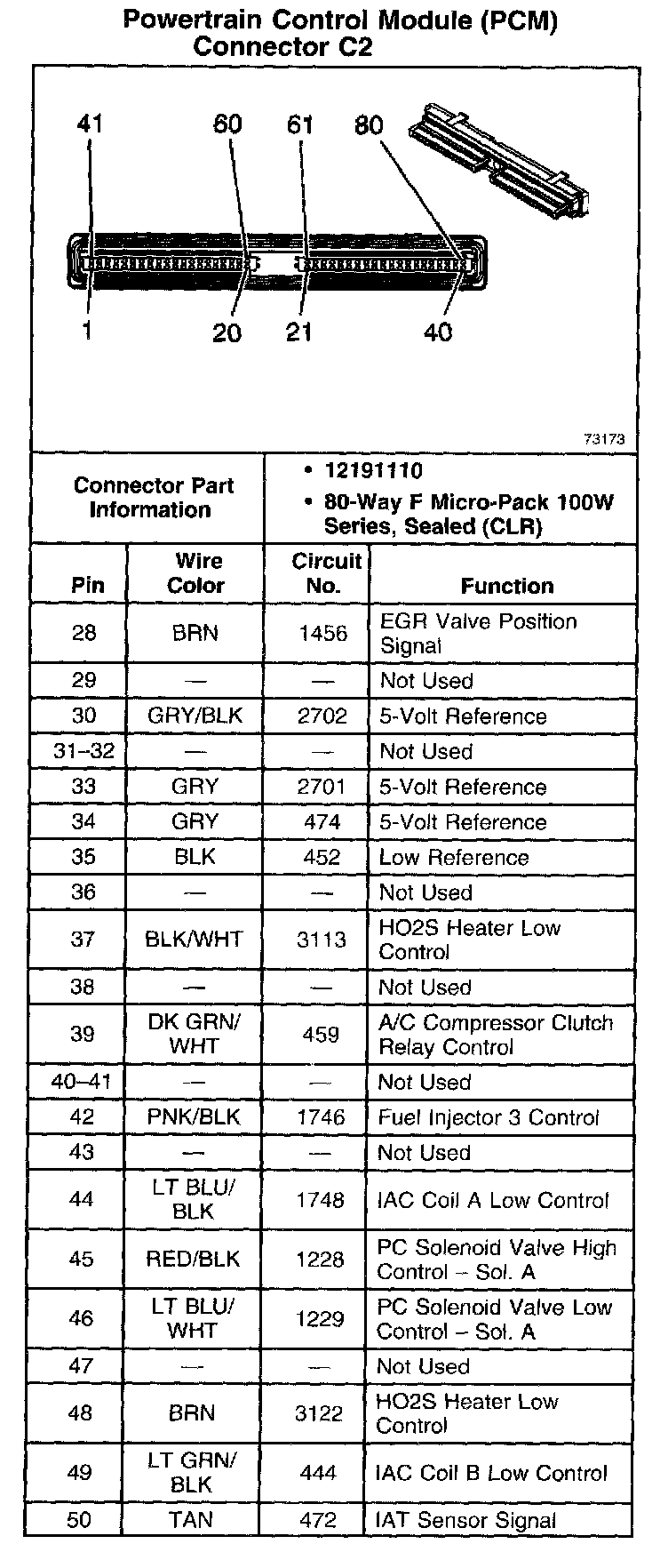

Powertrain Control Module (PCM) Connector C2 Part 2:

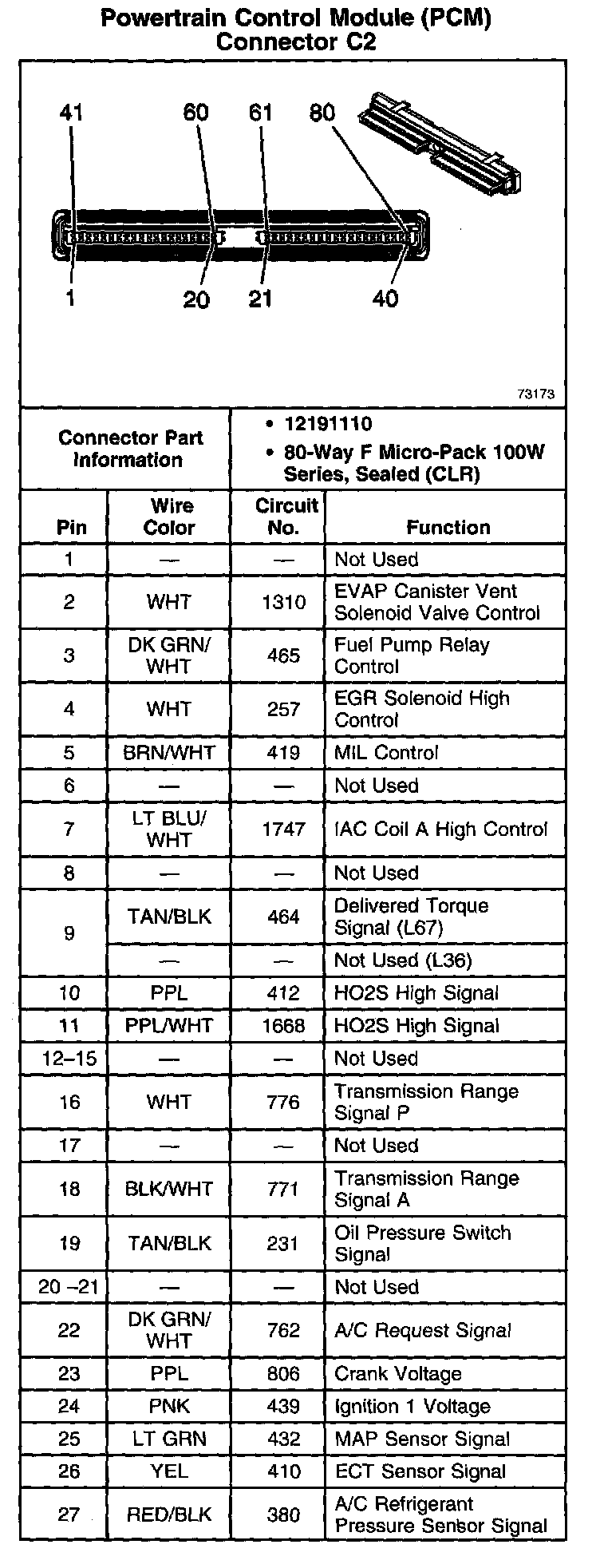

Powertrain Control Module (PCM) Connector C2 Part 3:
